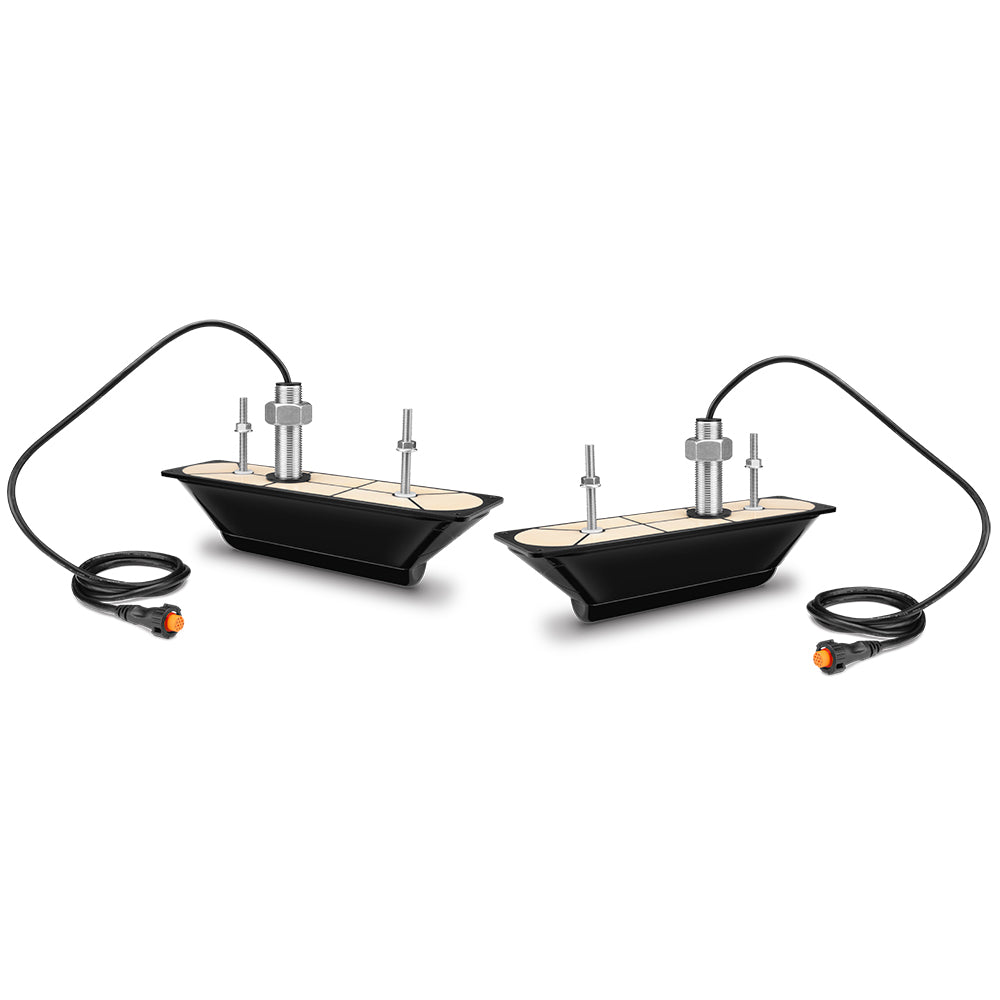

Garmin GT34UHD-THP Ultra HD Thru-Hull Transducer - Pair - 010-12776-11

GT34UHD-THP Ultra HD Thru-Hull Transducer - Pair

Ultra High-Definition Sonar System Thru-hull Transducer
Add stunningly clear Ultra High-Definition ClearVü and Ultra High-Definition SideVü scanning sonar images to your compatible chartplotter via the GCV™ 20 sonar module. It includes 3 arrays, including a downward-facing element element — with frequencies ranging from 0.8 MHz (800 kHz) to 1.2 MHz (1,200 kHz) — and it’s recommended for hulls with up to a 5-degree deadrise angle.

Ultra High-Definition ClearVü Scanning
This mode provides brilliant image clarity of structure and fish below your boat at greater depths than other high-frequency scanning sonars by putting more power on targets via a downward-facing element.

Ultra High-Definition SideVü Scanning
This mode delivers stunningly clear images of structure and fish off to the sides of your boat. This makes it easy to scout a fishing area quickly, because you can see everything the first time with such amazing clarity.

Specifications:

• Frequency:

• Ultra High-Definition ClearVü: 0.8 MHz (800 kHz), CHIRP range: 760-880 kHz


• Ultra High-Definition SideVü: 1.2 MHz (1,200 kHz), CHIRP range: 1,060-1,170 kHz

• Power: 500W


• Beamwidth:

• Ultra High-Defintion ClearVü: 0.74° x 46°


• Ultra High-Defintion SideVü: 0.44° x 55°

• Maximum depth:

• Ultra High-Defintion ClearVü: 200' down


• Ultra High-Defintion SideVü: 125' sides, 250' total

• Depth/Speed/Temperature: Depth and Temperature


• Number of pins: 12-pin


• Cable length: 20'


• Supported deadrise/Transom angles: Up to 25° deadrise

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Enhance your boating experience with the Garmin GT34UHD-THP Ultra HD Thru-Hull Transducer. This advanced sonar system provides stunning Ultra High-Definition ClearVu and SideVu scanning sonar images, allowing you to locate fish and structures with unprecedented clarity. Designed for use with compatible chartplotters via the GCV* 20 sonar module, it features three arrays, including a downward-facing element, making it ideal for hulls with a deadrise angle of up to 5 degrees. With impressive depth capabilities and high-frequency scanning, this transducer is a must-have for serious anglers.

Features:
* Ultra High-Definition ClearVu Scanning: Provides brilliant image clarity of structures and fish at greater depths.
* Ultra High-Definition SideVu Scanning: Delivers clear images of structures and fish to the sides of your boat for effective scouting.
* Frequency Range: Supports Ultra High-Definition ClearVu at 0.8 MHz and SideVu at 1.2 MHz for comprehensive sonar coverage.
* Power Output: Operates at 500W for reliable performance in various conditions.
* Beamwidth: Features specialized beam patterns for both ClearVu (0.74° x 46°) and SideVu (0.44° x 55°) scanning.
* Maximum Depth: Capable of reaching depths of 200' downward and 125' sideways, making it versatile for various fishing environments.
* Depth, Speed, and Temperature: Integrated sensors provide essential data for your fishing expeditions.
* Number of Pins: Comes with a 12-pin connection for easy installation.
* Cable Length: Includes a 20' cable, allowing flexible installation options.
* Supported Deadrise Angles: Suitable for transom angles of up to 25°.
