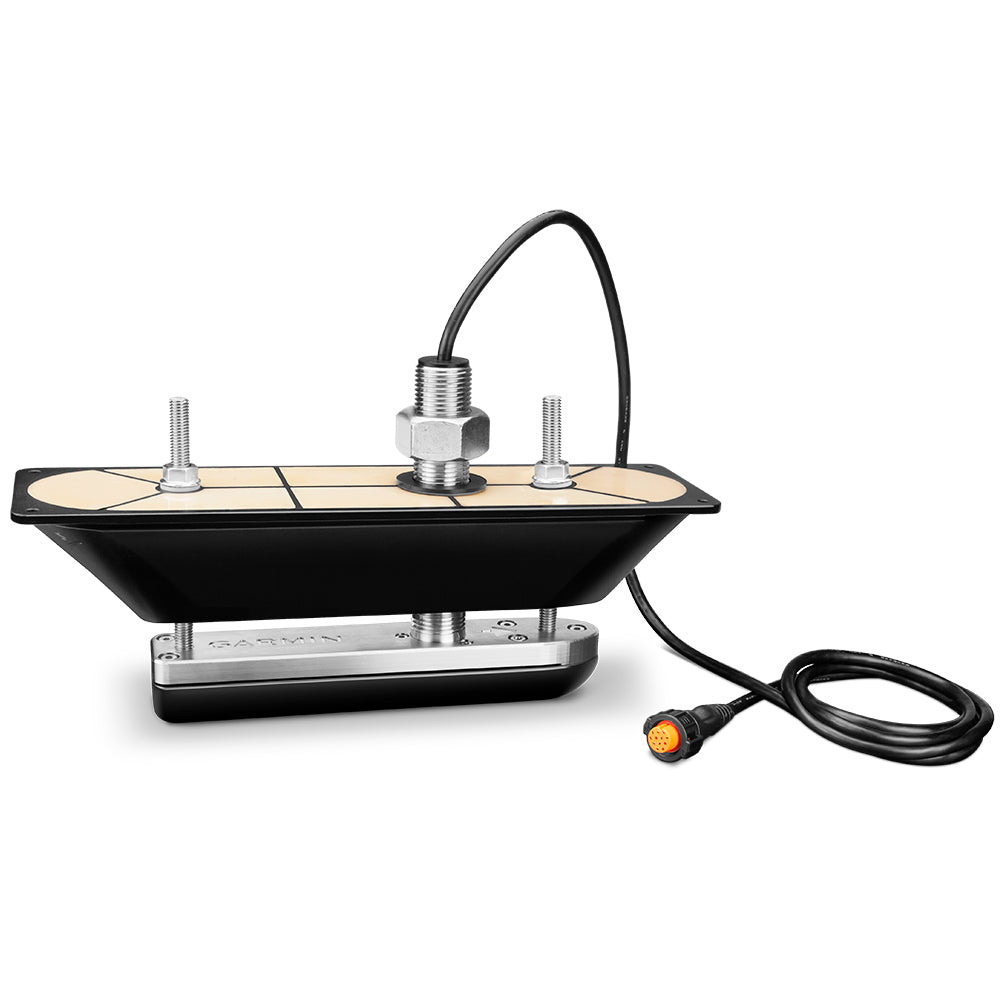

Garmin GT34UHD-TH Ultra HD Thru-Hull Transducer - 010-12776-10
Couldn't load pickup availability
GT34UHD-TH Ultra HD Thru-Hull Transducer
Ultra High-Definition Sonar System Thru-hull Transducer
Add stunningly clear Ultra High-Definition ClearVü and Ultra High-Definition SideVü scanning sonar images to your compatible chartplotter via the GCV™ 20 sonar module. It includes 3 arrays, including a downward-facing element element — with frequencies ranging from 0.8 MHz (800 kHz) to 1.2 MHz (1,200 kHz) — and it’s recommended for hulls with up to a 5-degree deadrise angle.
Ultra High-Definition ClearVü Scanning
This mode provides brilliant image clarity of structure and fish below your boat at greater depths than other high-frequency scanning sonars by putting more power on targets via a downward-facing element.
Ultra High-Definition SideVü Scanning
This mode delivers stunningly clear images of structure and fish off to the sides of your boat. This makes it easy to scout a fishing area quickly, because you can see everything the first time with such amazing clarity.
Specifications:
- Frequency:
- Ultra High-Definition ClearVü: 0.8 MHz (800 kHz), CHIRP range: 760-880 kHz
- Ultra High-Definition SideVü: 1.2 MHz (1,200 kHz), CHIRP range: 1,060-1,170 kHz
- Power: 500W
- Beamwidth:
- Ultra High-Defintion ClearVü: 0.74° x 46°
- Ultra High-Defintion SideVü: 0.44° x 55°
- Maximum depth:
- Ultra High-Defintion ClearVü: 200' down
- Ultra High-Defintion SideVü: 125' sides, 250' total
- Depth/Speed/Temperature: Depth and Temperature
- Number of pins: 12-pin
- Cable length: 20'
- Supported deadrise/Transom angles: Up to 25° deadrise
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Enhance your boating experience with the Garmin GT34UHD-TH Ultra HD Thru-Hull Transducer. Designed for compatibility with the GCV* 20 sonar module, this advanced transducer delivers breathtaking Ultra High-Definition ClearVu and SideVu scanning sonar images. With exceptional clarity and detail, it allows you to see structures and fish at greater depths and off to the sides of your boat. Perfect for hulls with up to a 5-degree deadrise angle, this transducer is a must-have for serious anglers and boating enthusiasts.
Features:
* Ultra High-Definition ClearVu: Provides brilliant image clarity of structures and fish below your boat.
* Ultra High-Definition SideVu: Delivers stunningly clear images of structures and fish off to the sides.
* Frequency Range: Operates between 0.8 MHz (800 kHz) and 1.2 MHz (1,200 kHz) for optimal performance.
* Power: Features a robust 500W power output for enhanced sonar capabilities.
* Beamwidth: Offers specific beamwidths of 0.74? x 46? for ClearVu and 0.44? x 55? for SideVu.
* Maximum Depth: Capable of reaching depths of 200' for ClearVu and 125' on the sides.
* Depth/Speed/Temperature: Includes depth and temperature readings for comprehensive data.
* Connection: Equipped with a 12-pin connector for secure installation.
* Cable Length: Comes with a 20' cable for flexible installation options.
* Deadrise Compatibility: Supports hulls with deadrise angles of up to 25?.
