Garmin GNA 10 Jog Level Adapter - Part Number 010-13007-00

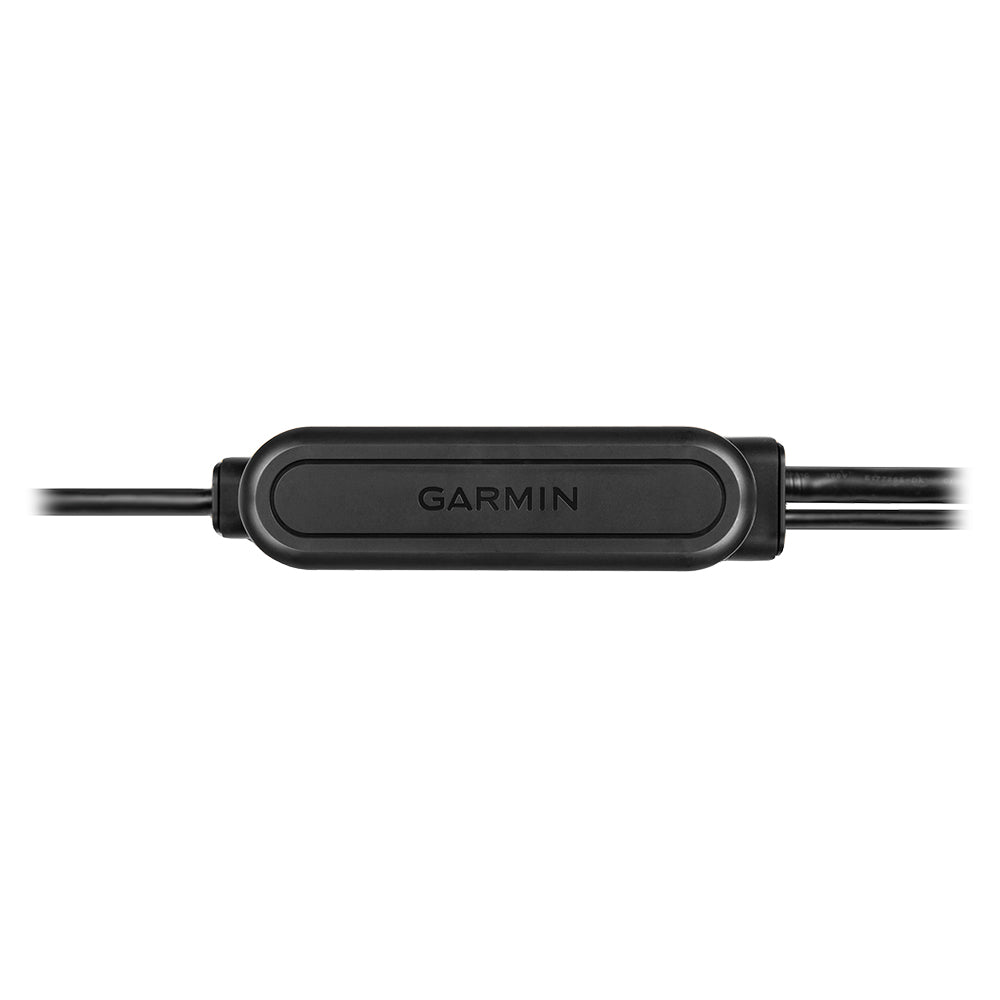

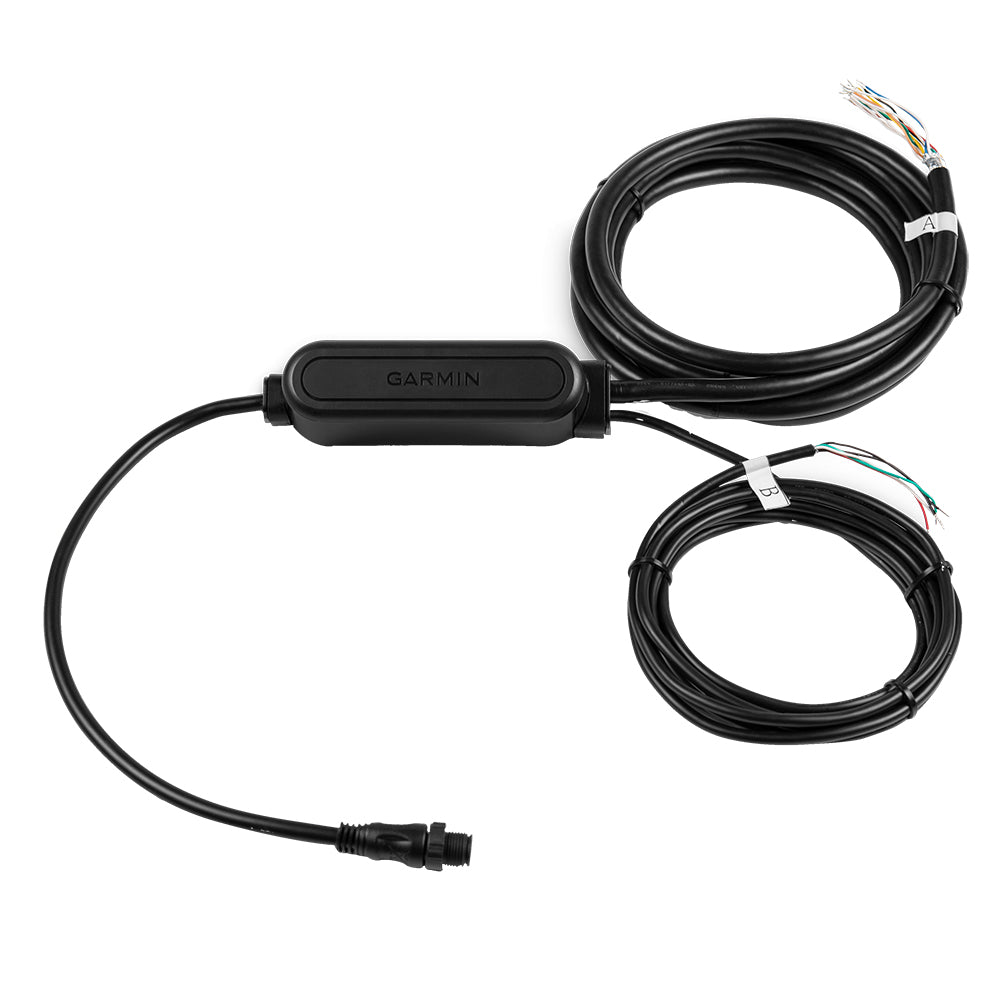

GNA 10 Jog Level Adapter

Use the Garmin GNA 10 to connect a jog lever to our Reactor 40 autopilots1 on displacement hull boats. A jog lever is a rugged and simple steering control for workboats or trawlers. Adjust heading hold with the jog lever by pressing it right or left, or put the autopilot into the new Power Steering mode to move the rudder without autopilot guidance. The GNA 10 can also optionally connect to a button and LED light to allow switching between heading hold and standby2. Garmin does not supply the jog lever, button, or LED light.

Specifications:

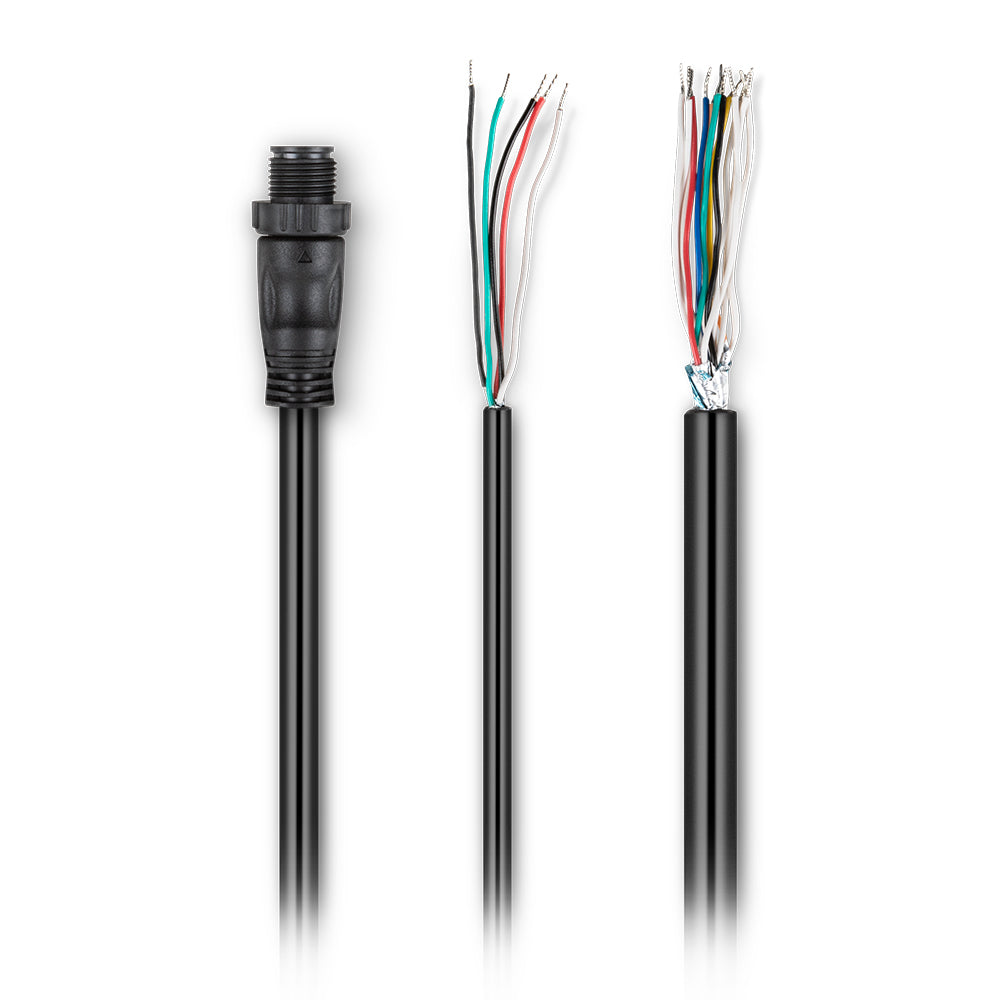

• Cable length: 2.8 meters


• Water rating: IPX7


• NMEA output: NMEA 2000


• NMEA 2000® LEN (Load Equivalency Number): 5 (250mA @ 9VDC)


• Operating temperature:  -20C to 75C


• Supply voltage: Powered by NMEA 2000 bus, 9-32V

Supported Jog Levers:

• Kobelt 7170


• Jastram JO100/JO300


• Simrad S35 (has built-in button and LED status which is supported)


• The GNA 10 does not support two-speed jog levers with two sets of switches

Supported Button Types:

• DPST OFF-MOM (no diode needed for installation) or


• SPST (requires diode for installation)


• Max current of 5mA and a max voltage of 12V

Supported LED Types:

• LED lights with a current draw of 20mA or less

1 The GNA 10 requires both a compatible Garmin autopilot and Garmin display

2 The GNA 10 can also be used to interface a Reactor 40 autopilot with Jastram digital steering controls

The GNA 10 with jog lever is designed only for use on displacement hull powerboats. It is not compatible with planning hull boats or sailboats.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Enhance your boating experience with the Garmin GNA 10 Jog Level Adapter, designed specifically for use with the Reactor 40 autopilots on displacement hull boats. This rugged jog lever provides a simple yet effective steering control solution, perfect for workboats and trawlers. With the ability to adjust heading hold by simply pressing the lever left or right, you can enjoy seamless navigation on the water. The innovative Power Steering mode allows you to move the rudder without utilizing autopilot guidance, offering you greater control and flexibility.

The GNA 10 is not just about performance; it also offers versatility. It can connect to additional buttons and LED lights to switch between heading hold and standby modes, enhancing your control options. Please note that while the GNA 10 is compatible with a range of jog levers, it does not support two-speed jog levers with dual switches. Dive into a smoother sailing experience with this reliable adapter that is engineered to withstand the elements, boasting an IPX7 water rating and a wide operating temperature range.

Features:
* Compatible with Reactor 40 autopilots on displacement hull boats.
* Allows for easy heading adjustment with a simple jog lever control.
* Supports connection to buttons and LED lights for enhanced functionality.
* IPX7 water rating ensures durability in marine environments.
* Operates within a wide temperature range from -20?C to 75?C.
