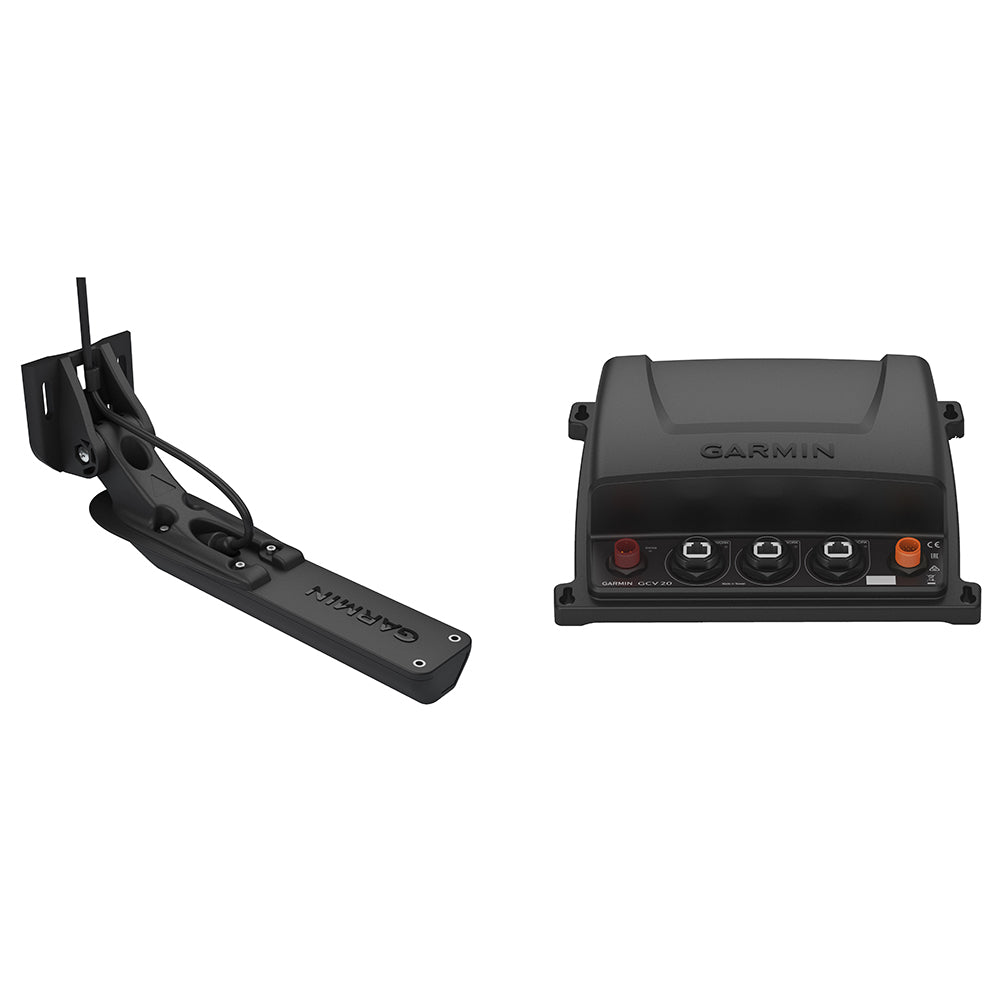

Garmin GCV* 20 Ultra HD Scanning Sonar Black Box with GT34UHD-TM Transducer - Part Number 010-02055-00

GCV™ 20 Ultra HD Scanning Sonar Black Box with GT34UHD-TM Ultra HD Transom Mount Transducer

Add Ultra High-Definition Scanning Sonar to Your Compatible Chartplotter
The easy-to-install, networkable GCV 20 sonar black box allows you to redefine clarity and detail. Add any of the 3 GT34UHD transducer models to see stunningly clear Ultra High-Definition ClearVü and Ultra High-Definition SideVü scanning sonars — with frequencies ranging from 0.8 MHz (800 kHz) to 1.2 MHz (1,200 kHz) — to your compatible chartplotter. And you can share sonar images seamlessly across multiple networked chartplotters as well as networking Panoptix™ all-seeing sonar. It includes a max power output of 500 watts.

Ultra High-Definition ClearVü Scanning
This mode provides brilliant image clarity of structure and fish below your boat at greater depths than other high-frequency scanning sonars by putting more power on targets via a downward-facing element.

Ultra High-Definition SideVü Scanning
This mode delivers stunningly clear images of structure and fish off to the sides of your boat. This makes it easy to scout a fishing area quickly, because you can see everything the first time with such amazing clarity.

Specifications:

General:

• Physical dimensions: 9.9"×7.6"×2.6" (251mm × 192mm × 66mm)


• Weight: 1.86lbs (845g)


• Water rating: IPX7


• Garmin Marine Network™ ports: 3


• Temperature range: From 5°F to 158°F (from -15°C to 70°C)

Sonar Features & Specifications:

• Frequencies supported:

• Ultra High-Definition ClearVü: 0.8 MHz (800 kHz), CHIRP range: 760-880 kHz


• Ultra High-Definition SideVü: 1.2 MHz (1,200 kHz), CHIRP range: 1,060-1,170 kHz

• Transmit power: 500W rms


• Maximum depth:

• 200' Ultra High-Definition ClearVü


• 125' to each side Ultra High-Definition SideVü, 250' total

What's In The Box?:

• GCV 20


• Right-angle power cable


• Right-angle ethernet cable


• Mounting hardware


• Documentation

GT34UHD-TM Ultra HD Transom Mount Transducer

Ultra High-Definition Sonar System Transom Mount Transducer
Add stunningly clear Ultra High-Definition ClearVü and Ultra High-Definition SideVü scanning sonar images to your compatible chartplotter via the GCV™ 20 sonar module. It includes 3 arrays, including a downward-facing element, with frequencies ranging from 0.8 MHz (800 kHz) to 1.2 MHz (1,200 kHz).

Ultra High-Definition ClearVü Scanning
This mode provides brilliant image clarity of structure and fish below your boat at greater depths than other high-frequency scanning sonars by putting more power on targets via a downward-facing element.

Ultra High-Definition SideVü Scanning
This mode delivers stunningly clear images of structure and fish off to the sides of your boat. This makes it easy to scout a fishing area quickly, because you can see everything the first time with such amazing clarity.

Specifications:

• Frequency:

• Ultra High-Definition ClearVü: 0.8 MHz (800 kHz), CHIRP range: 760-880 kHz


• Ultra High-Definition SideVü: 1.2 MHz (1,200 kHz), CHIRP range: 1,060-1,170 kHz

• Power: 500W


• Beamwidth:

• Ultra High-Defintion ClearVü: 0.74° x 46°


• Ultra High-Defintion SideVü: 0.44° x 55°

• Maximum depth

• Ultra High-Defintion ClearVü: 200' down


• Ultra High-Defintion SideVü: 125' sides, 250' total

• Depth/Speed/Temperature: Depth and Temperature


• Number of pins: 12-pin


• Cable length: 20'


• Supported deadrise/Transom angles: 0°-70° degree transom

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Enhance your fishing experience with the Garmin GCV* 20 Ultra HD Scanning Sonar Black Box. Designed for compatibility with various chartplotters, this sonar black box enables you to achieve exceptional clarity and detail in your aquatic explorations. By connecting any of the three GT34UHD transducer models, you'll be able to view stunning Ultra High-Definition ClearVu and SideVu sonar images, allowing for a more productive fishing outing.

The GCV* 20 features Ultra High-Definition ClearVu scanning, which provides remarkable image clarity of structures and fish located beneath your boat, making it easier to target the catch of the day. Additionally, its SideVu scanning capability delivers crystal-clear images of what's happening off to the sides, enabling efficient scouting of your fishing area. With a maximum power output of 500 watts and impressive depth capabilities, this sonar system is a must-have for serious anglers looking to elevate their fishing game.

Features:
* Ultra High-Definition ClearVu: Provides brilliant image clarity for structures and fish below the boat.
* Ultra High-Definition SideVu: Delivers stunning images of structures and fish off to the sides of the boat.
* Max Power Output: 500 watts for enhanced sonar performance.
* Networkable: Share sonar images seamlessly across multiple chartplotters.
* Compatible with GT34UHD Transducer models for versatile imaging capabilities.
