Garmin ECHOMAP Ultra 2 102sv LIVESCOPE Plus Bundle with GT56UHD-TM Transducer

Out of stock
SKU: GAR0100287901LSP
Manufacture Part Number: GAR0100287901LSP
Regular price $3,999.98

Garmin ECHOMAP Ultra 2 102sv LIVESCOPE Plus Bundle with GT56UHD-TM Transducer

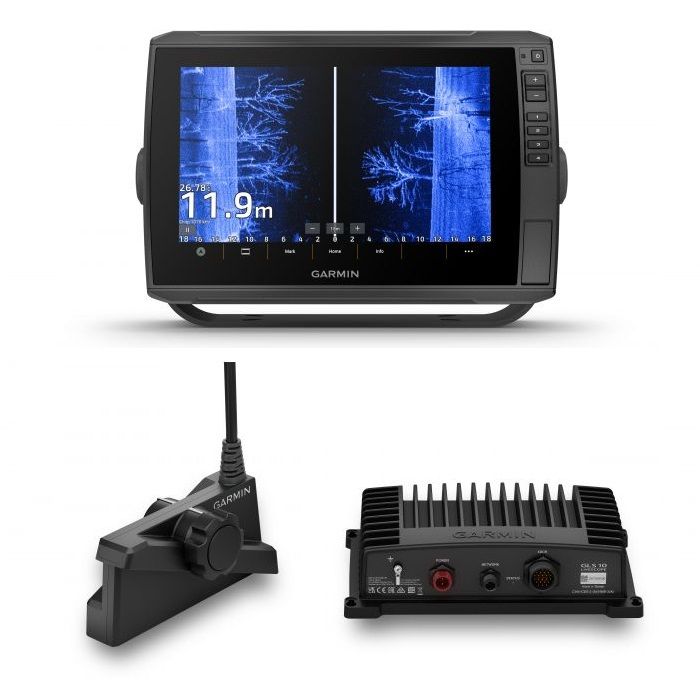

Garmin ECHOMAP™ Ultra 2 102sv 10" Chartplotters with GT56UHD-TM Transducer LiveScope Plus bundle

Model: 010-02879-01/LIVESCOPE Plus

  • SUPPORTS LIVESCOPE™ SONAR1 AND MORE

  • WIRELESSLY NETWORK; SHARE SONAR, WAYPOINTS AND ROUTES2

  • CAPTURE SCREEN RECORDINGS TO SHARE FISH CATCHES

  • MULTI-BAND GPS FOR IMPROVED POSITION ACCURACY

With big, crisp, sunlight-readable touchscreen displays, these versatile chartplotters put a world of fishfinding capability at your fingertips. They’re available with built-in Garmin Navionics+™ mapping, and the transducer bundle adds Ultra High-Definition scanning sonars as well as CHIRP traditional sonar.

The ECHOMAP Ultra 2 series supports the full lineup of LiveScope live-scanning sonar products (transducers sold separately).

High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.

Bring a fresh new look and feel to your chartplotter with optional Garmin Navionics Vision+™ premium mapping (sold separately), featuring high-resolution relief shading, satellite imagery and more.

If you have another compatible ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotter on your boat, you can wirelessly share information — such as sonar3, waypoints and routes — with them.

1LiveScope™ System sonar transducer sold separately 2Via one-to-one unit wireless connection only 3LiveScope sonar cannot be shared wirelessly between two ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotters 4Requires the ActiveCaptain app on your compatible smartphone paired to your ECHOMAP Ultra 2 series chartplotter

Specifications

General

DIMENSION
11.6" x 7.7" x 3.9" (29.5 x 19.5 x 9.8 cm)

WEIGHT
4.0 lbs (1.8 kg)

WATERPROOF
IPX7

TOUCHSCREEN
Yes

DISPLAY TYPE
WXGA, IPS

DISPLAY SIZE
8.5" x 5.4"; 10" diagonal (21.7 x 13.6 cm; 25.4 cm diagonal)

DISPLAY RESOLUTION
1280 x 800 pixels

MOUNTING OPTIONS
Bail or flush

INPUT
Touchscreen with Keyed Assist

Maps & Memory

ACCEPTS DATA CARDS
2 microSD cards

WAYPOINTS
5000

TRACK POINTS
50,000

TRACKS
50 saved tracks

NAVIGATION ROUTES
100

Sensors

GPS
Yes

GLONASS
Yes

GALILEO
Yes

BEIDOU
Yes

HAS BUILT-IN RECEIVER
Yes

RECEIVER
10 Hz

NMEA 2000 COMPATIBLE
Yes

NMEA 0183 COMPATIBLE
Yes

SUPPORTS WAAS
Yes

SUPPORTS MULTI-BAND, MULTI-CONSTELLATION GPS
Yes

Built-in Maps

BUILT-IN AUTO GUIDANCE+
Yes

GARMIN NAVIONICS+ INLAND & COASTAL
No

TIDE TABLES
No

Optional Map Support

BLUECHART G3
Yes

BLUECHART G3 VISION
Yes

LAKEVü G3
Yes

LAKEVü G3 ULTRA
Yes

GARMIN NAVIONICS+™
Yes

GARMIN NAVIONICS VISION+™
Yes

TOPO 100K
Yes

STANDARD MAPPING
Yes

GARMIN QUICKDRAW CONTOURS
Yes

Electrical Features

POWER INPUT
9 to 18 Vdc

TYPICAL CURRENT DRAW AT 12 VDC
2.3 A

MAXIMUM CURRENT DRAW AT 12 VDC
5.0 A

MAXIMUM POWER USAGE AT 10 VDC
34 W

Connections

NMEA 2000® PORTS
1

GARMIN MARINE NETWORK PORTS
2 (large connector)

12-PIN TRANSDUCER PORTS
12-pin scanning sonar

ANT+ (CONNECTIVITY)
Yes

GARMIN WI-FI NETWORK (LOCAL CONNECTION)
Yes

Sonar Features

DISPLAYS SONAR
Yes

POWER OUTPUT
600 watt

TRADITIONAL SONAR (DUAL FREQUENCY/BEAM)
built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)

CLEARVü
built-in 260/455/800/1000/1200 kHz

SIDEVü
built-in 260/455/800/1000/1200 kHz

PANOPTIX™ SONAR
Yes

LIVESCOPE
Yes


What's in the Box:


  • ECHOMAP Ultra 102sv

  • Power/data cable

  • Bail mount with quick release cradle

  • Protective sun cover

  • GT56UHD-TM transducer

  • Hardware

  • Documentation

  • Livescope Plus
