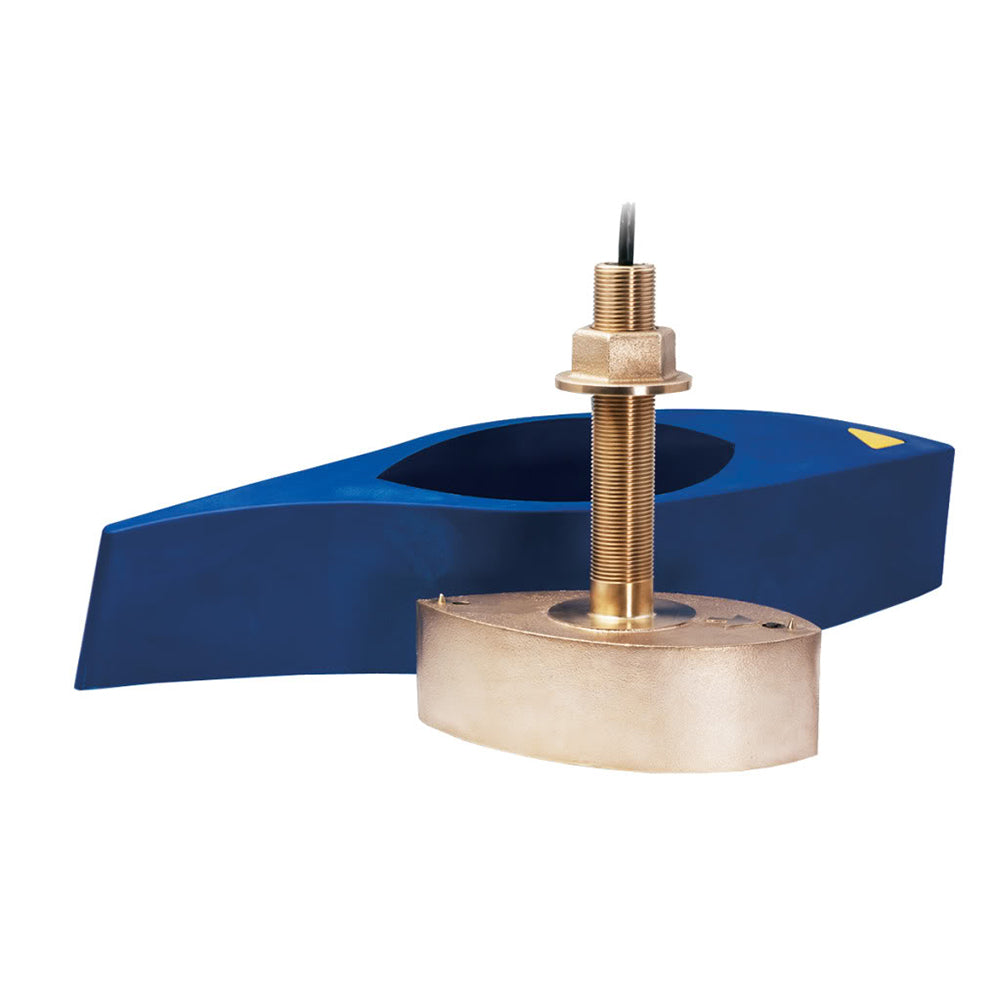

Garmin B275LH-W Bronze Thru-Hull Transducer - 12-Pin (010-12183-20)

B275LH-W Bronze Thru-Hull Transducer - 12-Pin

Get more coverage under your boat with Airmar’s unique wide beam, high frequency Chirp-ready transducers. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies. The high frequency band results in superior resolution. The constant wide beamwidth provides twice the coverage under the boat and excellent fish arches on the display compared to most high frequency narrow beam transducer options.

The included high-performance fairing improves broadband performance at speeds over 30 knots (34 MPH).

The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essential down to 500'.

The low frequency band and 1 kW of power also provides great deeper water performance. Get the best of both worlds with Airmar’s dual frequency Chirp-ready transducers with wide beam coverage.

Features:

• Depth and fast-response water-temperature sensor


• 1 kW for great deep water performance from the low frequency


• Low Frequency: 42 kHz to 65 kHz with maximum depth of 914 m (3000')


• 25° to 16° beamwidth


• High Frequency: 150 kHz to 250 kHz with maximum depth of 152 m (500')
  • 25° constant beamwidth




• 123 kHz of total bandwidth from one transducer


• Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth


• High frequency provides superior shallow water performance, bottom detail and fish target separation


• High wide beamwidth provides more coverage under the boat for detecting fish in the upper water column


• Bronze transducer housing with high-performance fairing for optimal performance at higher speeds


• Recommended boat size: 8 m (25') and above


• Hull Type: Fiberglass or wood


• Exclusive Xducer ID® technology

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Enhance Your Fishing Experience with the Garmin B275LH-W Bronze Thru-Hull Transducer

Discover unparalleled underwater coverage with Garmin's B275LH-W Bronze Thru-Hull Transducer, designed for serious anglers. This 12-pin transducer utilizes Airmar*s advanced wide beam technology, operating across a high-frequency range of 150 to 250 kHz with a consistent 25? beam angle, ensuring you capture detailed fish arches and bottom structure like never before. Ideal for both inshore and offshore fishing, this transducer excels in depths up to 500 feet, delivering superior resolution and performance.

The innovative fairing included with this transducer enhances broadband performance, even at speeds exceeding 30 knots (34 MPH), making it perfect for fast-paced fishing adventures. With its dual-frequency capabilities, you can enjoy optimal deep-water performance down to 3,000 feet while benefiting from the high-frequency band that provides exceptional shallow water detail and fish target separation.

Upgrade your fishing setup with the Garmin B275LH-W and experience the ultimate in sonar technology.

Features:
* Depth and Temperature Sensor: Integrated depth and fast-response water-temperature sensor for accurate readings.
* Power Output: 1 kW for outstanding deep water performance from the low frequency range.
* Low Frequency Range: Operates between 42 kHz to 65 kHz with a maximum depth capability of 3,000 feet.
* Beamwidth: Features a variable beamwidth from 25? to 16? for versatile coverage.
* High Frequency Range: Operates from 150 kHz to 250 kHz with a maximum depth of 500 feet and a constant 25? beamwidth.
* Total Bandwidth: 123 kHz total bandwidth from a single transducer.
* Popular Frequencies: Covers essential fishing frequencies of 50 kHz and 200 kHz, plus all others in the bandwidth.
* Performance: Superior shallow water performance, bottom detail, and fish target separation.
* Coverage: Wide beamwidth design provides extensive coverage under the boat for better fish detection.
* Housing: Durable bronze transducer housing with a high-performance fairing for enhanced speed performance.
* Recommended Boat Size: Optimized for boats 25 feet and larger.
* Hull Type Compatibility: Compatible with fiberglass or wooden hull types.
* Xducer ID Technology: Includes exclusive Xducer ID? technology for superior performance.
