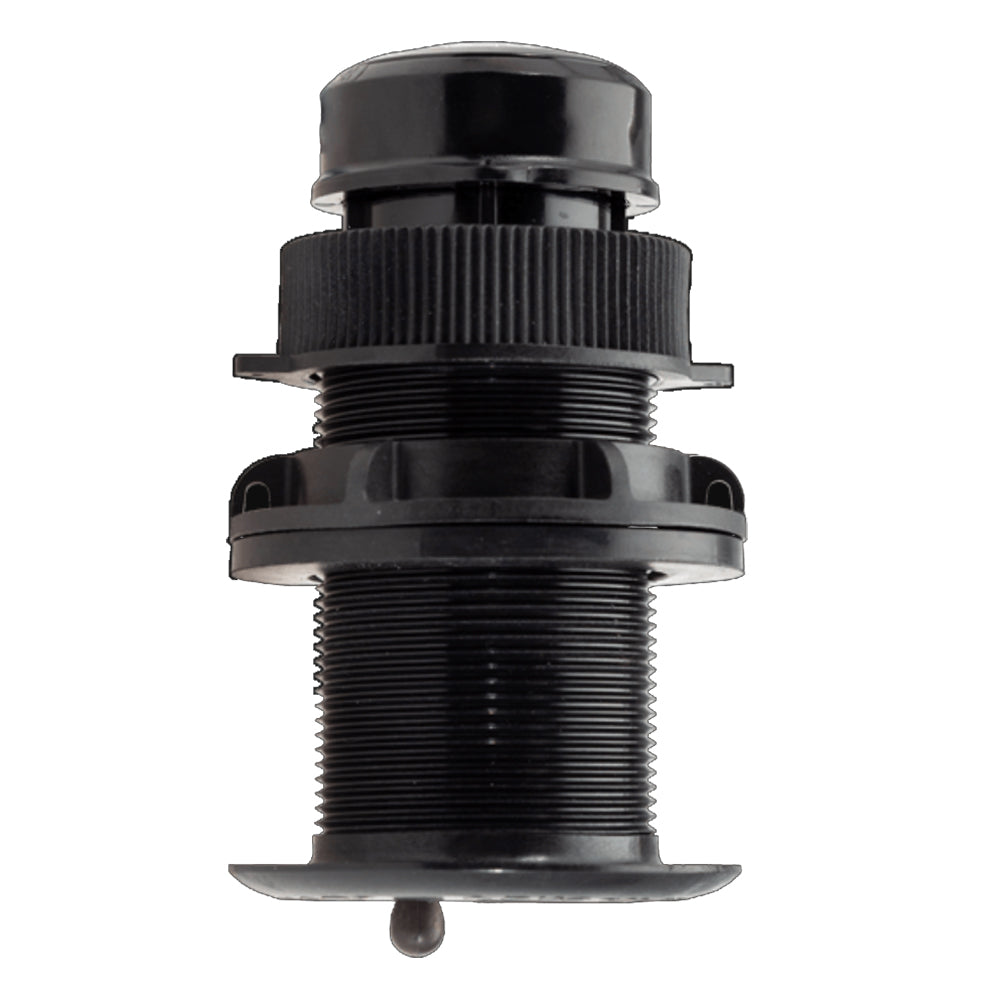

Garmin Airmar DST 810 Smart Transducer - 0? Degree (Part Number: 010-11051-20)

Airmar DST 810 Smart Transducer - 0° Degree

This plastic thru-hull NMEA 2000® smart transducer combines precise depth, speed and temperature signals with attitude sensing for heel/trim and pitch/roll data. It can read depths to 330’ and offers fast 5 Hz water speed signal output for smoother visualization on compatible chartplotters or other displays.

Wireless BLUETOOTH® connectivity makes it easy to manage calibration of sensor data through the Airmar Cast app interface. And the 235 kHz sensor operating frequency helps prevent mutual interference with other echosounder devices on the vessel. The transducer’s wide, fan-shaped beamwidth of 10x44 degrees enables it to find bottom even when installed on steep deadrise hulls or heeling sailboats.

Specifications:

• Frequency: 235kHz


• Power: 100w


• Beamwidth: 10 x 44 degrees


• Maximum Depth: 300 ft.


• Depth/Speed/Temperature: Depth, Temperature and Speed


• Number of Pins: NMEA 2000


• Supported Deadrise/Transom Angles: 0 to 22 degrees

The Garmin Airmar DST 810 Smart Transducer is a high-performance plastic thru-hull NMEA 2000? device that delivers precise depth, speed, and temperature readings, along with critical attitude sensing for heel/trim and pitch/roll data. Capable of reading depths up to 330 feet, this transducer provides a rapid 5 Hz water speed signal output ensuring smoother visualizations on compatible chartplotters and displays. With wireless BLUETOOTH? connectivity, managing sensor data calibration is hassle-free via the Airmar Cast app. The 235 kHz sensor frequency minimizes interference from other echosounder devices, making it ideal for various vessels. Its wide, fan-shaped beamwidth of 10x44 degrees enables reliable bottom detection, even on steep deadrise hulls or heeling sailboats.

Features:
* Connectivity: Wireless BLUETOOTH? for easy calibration management through Airmar Cast app.
* Operating Frequency: 235 kHz to reduce mutual interference with other echosounders.
* Beamwidth: Wide fan-shaped beamwidth of 10x44 degrees for effective bottom detection.
* Depth Capability: Reads depths up to 330 feet for reliable underwater insights.
* Output Frequency: Fast 5 Hz water speed signal output for smooth visualization.
* Sensor Type: Combines depth, speed, and temperature sensing with attitude data.
