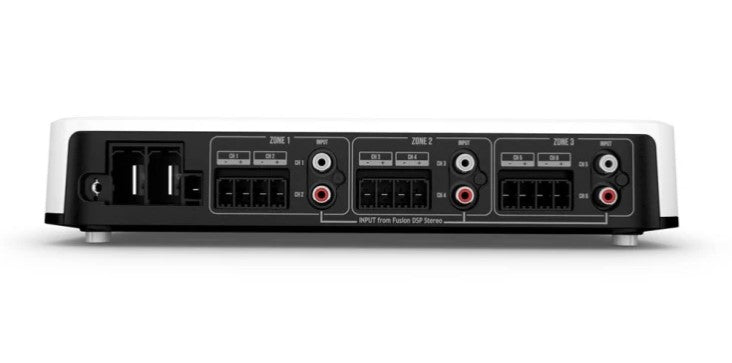

Fusion Apollo 6 Channel Marine Amplifier (150-watt RMS per Channel)
Model: 010-02284-65
| General |
| Physical dimensions without bracket (LxWxH) |
11.69" x 7.06" x 1.75" (297 x 180 x 45 mm) |
| Physical dimensions with bracket (LxWxH) |
11.69" x 7.06" x 2.13" (297 x 180 x 50 mm) |
| Weight |
5.95 lb (2.7 kg) |
| Water Rating |
IPX2 |
| Amplifier class |
Class-D |
| CEA-2006 power rating |
150 watt RMS x 6 @ 14.4 V input - 4 ohm < 1% THD |
| Total rated power output - 2 ohm (watts) |
290 watt RMS x 6 @ 14.4 V input - 2 ohm < 1% THD |
| Total rated power output - 4 ohm Bridged (watts) |
580 watt RMS x 3 @ 14.4 V input - 4 ohm Bridged < 1% THD |
| Peak power (watts) |
1800 watts |
| Input sensitivity |
1.6 V RMS |
| Input impedance |
22k ohm |
| Operating voltage |
10.8 V - 16 V DC |
| Current draw, in standby/off using amplifier on wire |
< 5 mA @ 14.4 V input |
| Current draw, on, no audio |
< 1.32 A @ 14.4 V input |
| Fuse rating |
125 A electronic fuse (no replacement neccessary) |
| Power-cable fuse model and rating |
Bussmann™ BK/AMI-030 30 A fast-acting |
| Ignition Safety Protected (SAE J1171) |
Yes |
| Protection circuits |
Reverse voltage
Input under/over voltage
Over temperature
Output short circuit |
| Operating temperature range |
32° to 122° F (0° to 50° C) |
