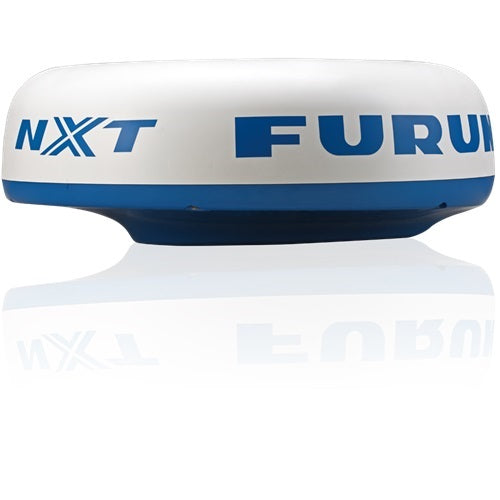

Furuno DRS4DNXT B-Stock 24-inch Doppler Radar Dome with Target Analyzer and RezBoost Technology

Furuno DRS4DNXT B-Stock 24in Radar Dome, Cable Separately

The Furuno DRS4DNXT B-Stock 24-inch radar dome offers advanced marine surveillance capabilities in a compact form factor. Featuring NXT solid-state pulse compression radar technology, it provides reliable detection and tracking of targets with minimal maintenance. The system's integrated RezBoost beam sharpening technology enhances target resolution, achieving an effective 2-degree beam width, which significantly improves situational awareness in challenging conditions. Its 25W output power, comparable to a 4kW magnetron, delivers impressive range and detection sensitivity for a wide variety of maritime applications.

The DRS4DNXT introduces the revolutionary Target Analyzer function, a first for Furuno radar systems. This feature automatically identifies targets approaching your vessel by changing their display color to red, while stationary or receding targets remain green. This dynamic color coding, independent of vessel speed, enhances safety by enabling quick recognition of potential collision risks. When a target is selected, the radar displays a speed and course vector within seconds, providing precise tracking information and simplifying navigation decisions. The Doppler technology also automatically detects approaching vessels and triggers audible alarms, further enhancing safety and situational awareness.

Designed for ease of installation, the DRS4DNXT requires no external power supply and can be installed without opening the radome. Its 24-inch radome is lightweight and durable, with a vertical beam width of 25 degrees and a horizontal beam width adjustable between 2 and 3.9 degrees, depending on RezBoost settings. The antenna rotates at speeds of 24, 36, or 48 RPM, providing fast and accurate target acquisition over ranges from 0.0625 nautical miles up to 36 nautical miles, with dual-range options for shorter distances. This radar is suitable for a variety of vessels requiring high-performance detection, tracking, and enhanced safety features.

• RSB135-115 Dome B-Stock


• Hardware pack


• Documentation

Note: This product complies with Prop 65 safety warnings for cancer and reproductive harm. Please refer to www.P65Warnings.ca.gov for details.

Features:
* NXT solid-state pulse compression radar for reliable detection
* Revolutionary Target Analyzer automatically identifies approaching targets with color coding
* RezBoost beam sharpening technology achieves a 2-degree effective beam width
* Automatic target acquisition and tracking with Doppler technology for up to 100 targets
* Compact 24-inch radome with lightweight design and easy installation
* No external power supply required, no need to open the radome
* Fast antenna rotation at 24/36/48 RPM for quick target updates
* Range scales from 0.0625 to 36 nautical miles, with dual-range options
* Vertical beam width of 25 degrees for optimal coverage
