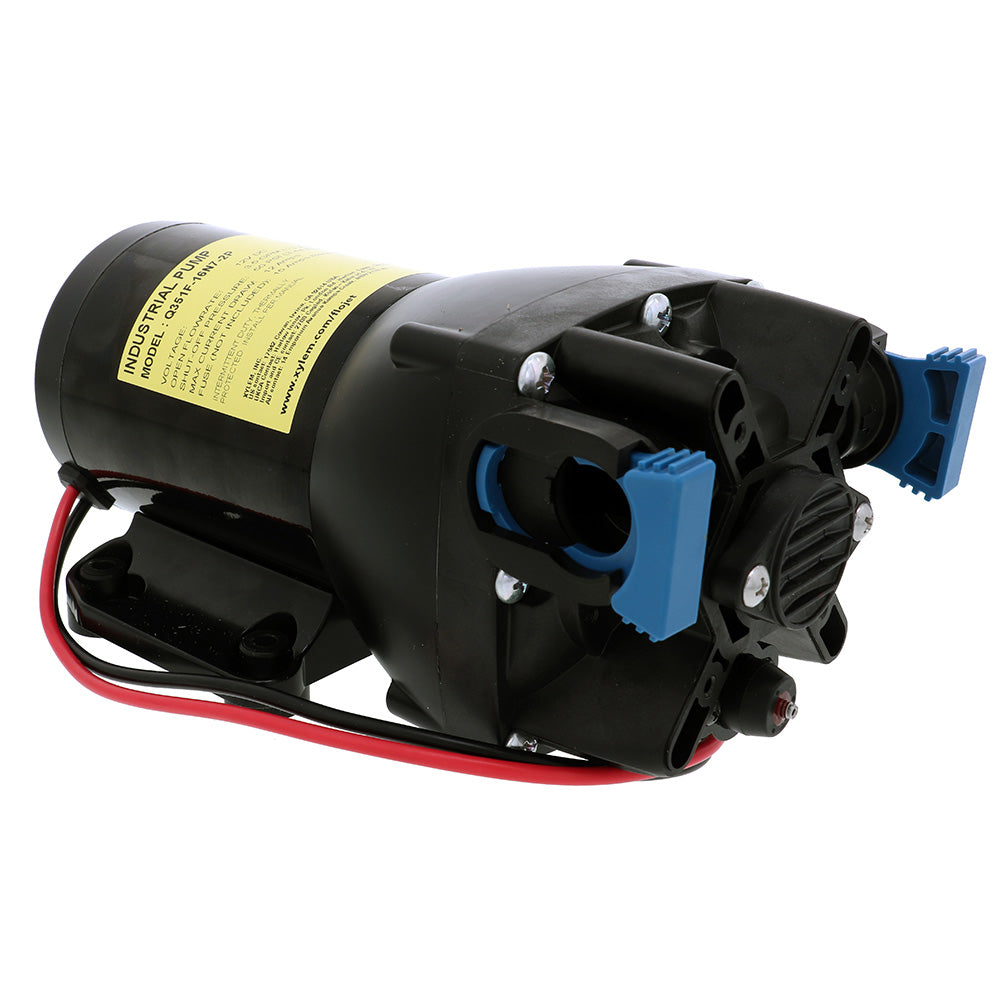

Flojet VersiJet Diaphragm Pump - 3.5 GPM, 12V, 50 PSI for Industrial Liquid Transfer - Q351F-16N7-2P

VersiJet Diaphragm Pump - 3.5 GPM, 12V, 50 PSI

Flojet VersiJet Series industrial diaphragm pump. It is engineered for durability and longevity. This Flojet pump is perfect for applications such as liquid transfer, spraying, cooling, circulation, filtration, dispensing, and more! Glass-filled polypropylene hose is resistant to corrosion. Viton seals and a Santoprene diaphragm provide resistance to chemicals and corrosion. It has quick-connect ports and includes two 1/2 straight hose barbs.

Features:

• Heavy-duty, coated motor
• Long-life co-molded diaphragm
• Efficient, quiet operation
• Self-priming
• Runs dry without damage
• 4-chamber diaphragm
• Quick-connect ports
• TENV permanent magnet motor
• Noise-dampening baseplate
• Thermal motor protection (TCO)

Applications:

• Liquid Transfer
• Spraying
• Cooling
• Circulation
• Filtration
• Dispensing

Specifications:

• Product Number: Q351F-16N7-2P
• Port Fittings: 2 x 1/2 (13mm) straight hose barb
• Open Flow Rate: 3.5 GPM open flow (13.2 LPM)
• Pressure Switch Cut-Off: No switch
• Max Operating Pressure: 50 PSI (3.4 BAR)
• Max Inlet Pressure: 30 PSI (2.2 BAR)
• Internal Bypass: Yes
• Fluid Temperature Range: 32 F - 140 F (0 C - 60 C)
• Self-Priming Capability: Up to 8ft (2.4m) dry prime
• Run-Dry Capable: Yes
• Nominal Voltage: 12 VAC
• Voltage Range: 9 V- 13.6 V
• Max Current Draw: 9.5 Amps @ 50 PSI (3.4 BAR)
• Fuse Size: 15 Amps (not included)
• Duty Cycle: Intermittent
• Leads: 12 (305mm), 14 AWG (2.5mm^2)
• Wire Connection: Stripped wire
• Weight (pump only): 5.1 lbs.

Materials:

• Upper Housing: Glass-filled polypropylene
• Lower Housing: Cast aluminum
• Check Valve Retainer: Polypropylene
• Diaphragm: Santoprene
• Check Valves: Viton
• Switch diaphragm: Viton
• Bypass Diaphragm: Viton
• PH Seals: Viton
• PH Fasteners: Stainless steel
• Baseplate: Nylon with Rubber Feet
• Motor Casing: Cast aluminum; coated steel

The Flojet VersiJet Series industrial diaphragm pump, model Q351F-16N7-2P, is designed for reliable performance in demanding liquid transfer applications. With a flow rate of 3.5 gallons per minute and capable of operating at pressures up to 50 PSI, this pump offers efficient and consistent operation for spraying, cooling, circulation, filtration, and dispensing tasks. Its durable construction includes a glass-filled polypropylene housing resistant to corrosion, along with Viton seals and a Santoprene diaphragm that provide excellent chemical and environmental resistance. The pump features quick-connect ports and includes two 1/2 inch straight hose barbs for easy installation and maintenance, making it suitable for various industrial and mobile applications.

Constructed with a heavy-duty, coated TENV permanent magnet motor, the Flojet VersiJet ensures quiet and efficient operation. Its self-priming capability allows it to prime from dry conditions up to 8 feet, and it can run dry without damage, providing added reliability in diverse operational environments. The pump's internal 4-chamber diaphragm enhances its longevity and performance, while the noise-dampening baseplate minimizes operational noise. Integrated thermal protection (TCO) safeguards the motor during overload conditions, ensuring consistent performance and extended component lifespan.

Designed for versatility, the Flojet VersiJet Diaphragm Pump is suitable for a wide range of applications including liquid transfer, spraying, cooling, circulation, filtration, and dispensing. Its internal bypass feature allows for controlled fluid flow, and its compact, lightweight design facilitates easy installation in confined spaces. The pump operates within a temperature range of 32°F to 140°F and is powered by 12V DC, making it ideal for mobile and remote setups. Whether used in industrial, agricultural, or recreational settings, the Flojet VersiJet provides a robust solution for demanding fluid handling tasks, combining durability, efficiency, and ease of use.

Constructed with high-quality materials such as cast aluminum and nylon with rubber feet, the pump ensures stability and durability during operation. Its components, including Viton check valves and seals, withstand harsh chemical environments, making it suitable for a variety of liquids. The pump's design emphasizes longevity and ease of maintenance, making it a dependable choice for professionals seeking a high-performance diaphragm pump.

Features:

• Heavy-duty, coated motor for durability and long life

• Long-life co-molded diaphragm enhances reliability

• Efficient, quiet operation minimizes noise levels

• Self-priming capability up to 8 feet dry prime

• Runs dry without damage, suitable for varied applications

• 4-chamber diaphragm design for consistent performance

• Quick-connect ports for easy installation and maintenance

• TENV permanent magnet motor for reliable power

• Noise-dampening baseplate reduces operational noise

• Thermal motor protection (TCO) for safety and longevity
