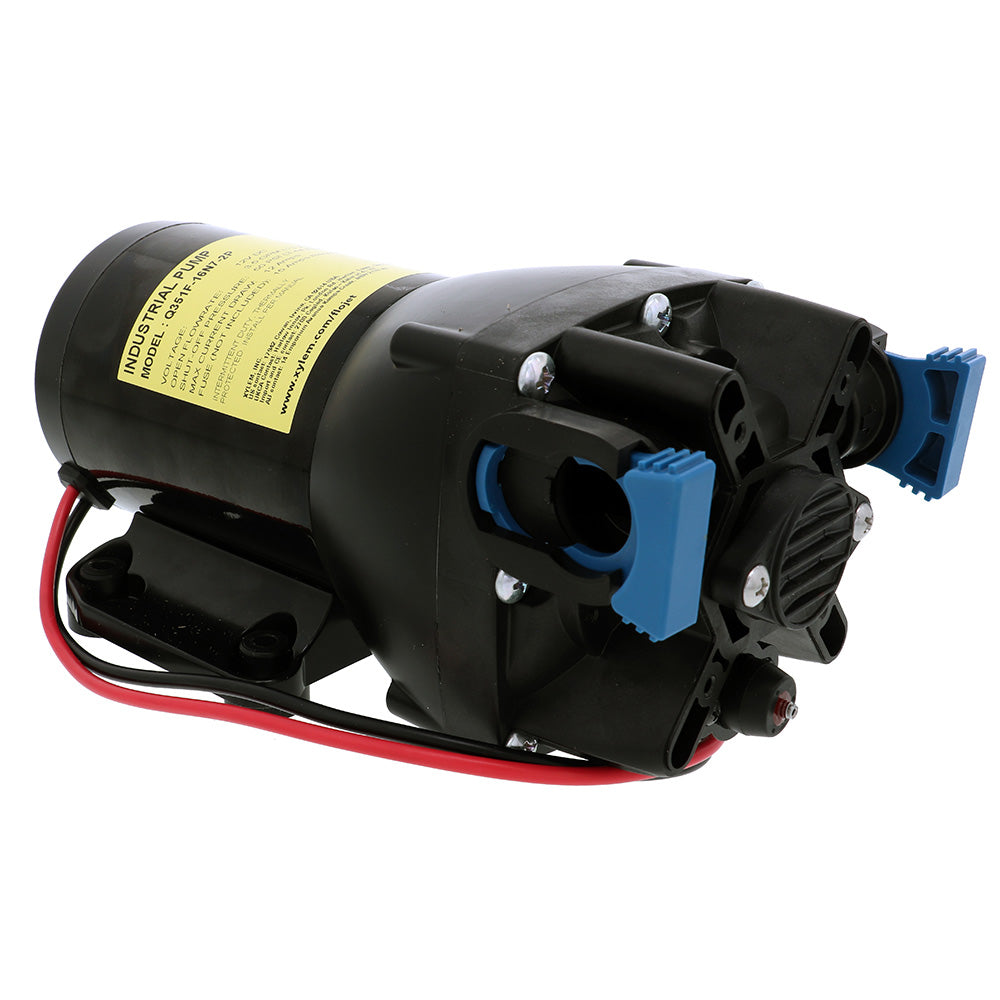

Flojet VersiJet 4 Chamber Diaphragm Pump - 24V, 3.5 GPM, 50 PSI - Q352F-16N7-2P

VersiJet 4 Chamber Diaphragm Pump - 24V, 3.5 GPM, 50 PSI

Flojet VersiJet Series industrial diaphragm pump. It is engineered for durability and longevity. This Flojet pump is perfect for applications such as liquid transfer, spraying, cooling, circulation, filtration, dispensing, and more! Glass-filled polypropylene hose is resistant to corrosion. Viton seals and a Santoprene diaphragm provide resistance to chemicals and corrosion. It has quick-connect ports and includes two 1/2 straight hose barbs.

Features:

• Heavy-duty, coated motor
• Long-life co-molded diaphragm
• Efficient, quiet operation
• Self-priming
• Runs dry without damage
• 4-chamber diaphragm
• Quick-connect ports
• TENV permanent magnet motor
• Noise-dampening baseplate
• Thermal motor protection (TCO)

Applications:

• Liquid Transfer
• Spraying
• Cooling
• Circulation
• Filtration
• Dispensing

Specifications:

• Product Number: Q352F-16N7-2P
• Port Fittings: 2 x 1/2 (13mm) straight hose barb
• Open Flow Rate: 3.5 GPM open flow (13.2 LPM)
• Pressure Switch Cut-Off: No switch
• Max Operating Pressure: 50 PSI (3.4 BAR)
• Max Inlet Pressure: 30 PSI (2.2 BAR)
• Internal Bypass: Yes
• Fluid Temperature Range: 32 F - 140 F (0 C - 60 C)
• Self-Priming Capability: Up to 8ft (2.4m) dry prime
• Run-Dry Capable: Yes
• Nominal Voltage: 24 VAC
• Max Current Draw: 5.3 Amps @ 50 PSI (3.4 BAR)
• Fuse Size: 7 Amps (not included)
• Duty Cycle: Intermittent
• Leads: 12 (305mm), 14 AWG (2.5mm^2)
• Wire Connection: Stripped wire
• Weight (pump only): 5.1 lbs.

Materials:

• Upper Housing: Glass-filled polypropylene
• Lower Housing: Cast aluminum
• Check Valve Retainer: Polypropylene
• Diaphragm: Santoprene
• Check Valves: Viton
• Switch diaphragm: Viton
• Bypass Diaphragm: Viton
• PH Seals: Viton
• PH Fasteners: Stainless steel
• Baseplate: Nylon with Rubber Feet
• Motor Casing: Cast aluminum; coated steel

The Flojet VersiJet Series 4 Chamber Diaphragm Pump, model Q352F-16N7-2P, is engineered for reliable liquid transfer and fluid management in industrial applications. Operating at 24 volts AC, this pump delivers an efficient flow rate of 3.5 gallons per minute at a maximum pressure of 50 PSI, making it suitable for spraying, cooling, circulation, filtration, and dispensing tasks. Its robust construction includes a glass-filled polypropylene upper housing and cast aluminum lower housing, ensuring durability and resistance to harsh environments. The pump features Viton seals and a Santoprene diaphragm, providing excellent chemical resistance and longevity even with corrosive liquids. Quick-connect ports with 1/2 inch hose barb fittings facilitate easy installation and maintenance, while the internal bypass and self-priming capabilities enhance operational flexibility and ease of use.

The heavy-duty, coated TENV permanent magnet motor ensures efficient, quiet operation with thermal protection to prevent overheating during intermittent duty cycles. Its noise-dampening baseplate minimizes operational sound, making it suitable for applications where noise reduction is important. Designed to run dry without damage and capable of handling fluid temperatures from 32°F to 140°F, this pump offers reliable performance in diverse environments. With a self-priming capability up to 8 feet and a maximum inlet pressure of 30 PSI, the Flojet VersiJet pump is an ideal choice for demanding industrial fluid transfer tasks. Materials used in construction include polypropylene, cast aluminum, Viton, and stainless steel fasteners, ensuring corrosion resistance and structural integrity. The compact design, combined with features like quick-connect fittings and a noise-dampening baseplate, makes installation and operation straightforward. Whether used in mobile or stationary setups, this pump is built to deliver consistent, efficient performance across a range of applications, including spraying, circulation, and fluid dispensing.

Features:

• Heavy-duty, coated motor for durability

• Long-life co-molded diaphragm for extended use

• Efficient and quiet operation for reduced noise levels

• Self-priming design for ease of installation

• Runs dry without damage for versatile application

• 4-chamber diaphragm for consistent flow

• Quick-connect ports for easy setup

• TENV permanent magnet motor for reliable power

• Noise-dampening baseplate minimizes operational sound

• Thermal motor protection (TCO) for safety during operation
