I100-X Small Vessel Tracker - Open Box - Never Programmed

**As the FCC requires all units sold in the US to be programmed by a qualified technician. Please submit the form below for programming at the time of purchase. A copy of the MMSI Registration or FCC Ship Station License is required, along with the vessel master or owners signature on the completed programming form.**

Click here to download the form.

The Identifier I100-X is a rugged, fully self-contained AIS Class B vessel-tracking transponder, ideal for small-boat tracking and monitoring.

I100-X can power itself using its own internal rapid-recharge battery (+120 hours of continuous operation) or be connected directly to another onboard power source, such as an engine, battery, or solar, with the battery then acting as a backup.

I100-X is fully water and weatherproof (IPx8 certified) and ruggedized to operate reliably without maintenance in even the harshest of environments: extreme heat or cold, humidity, shock, and vibration.

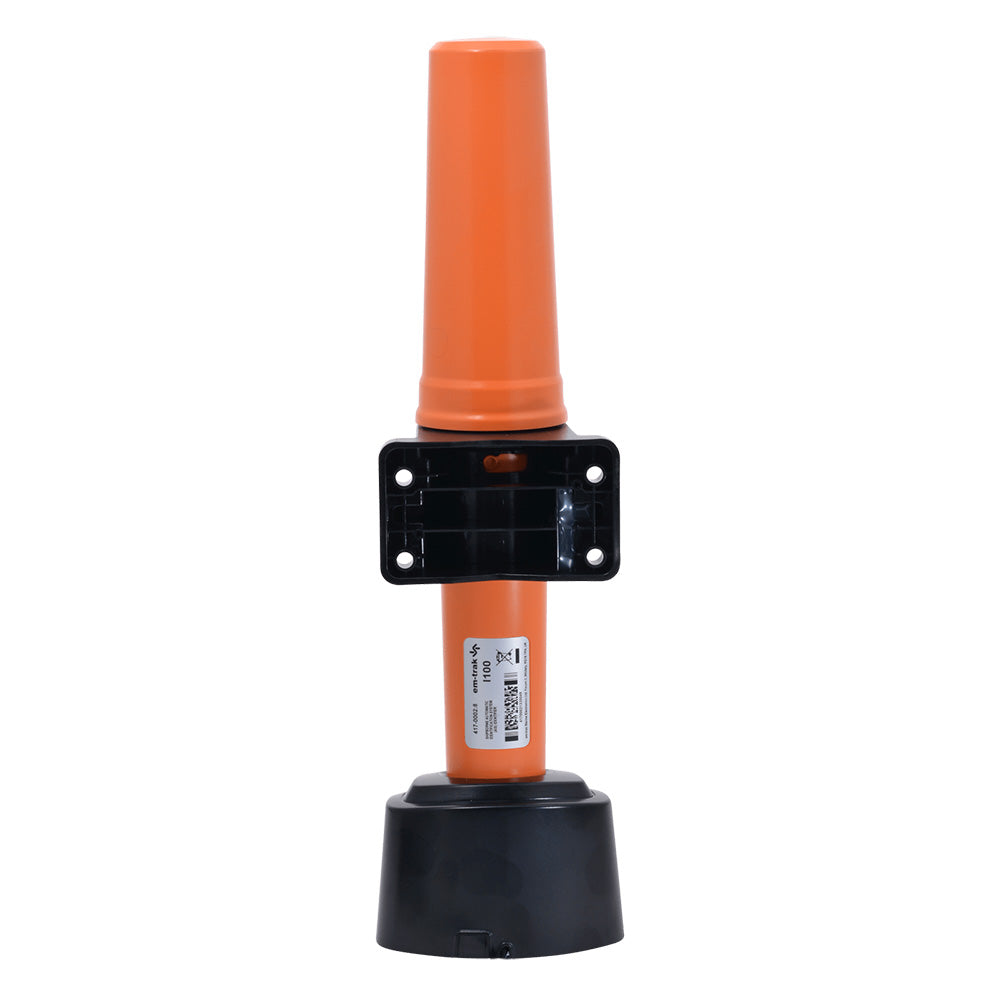

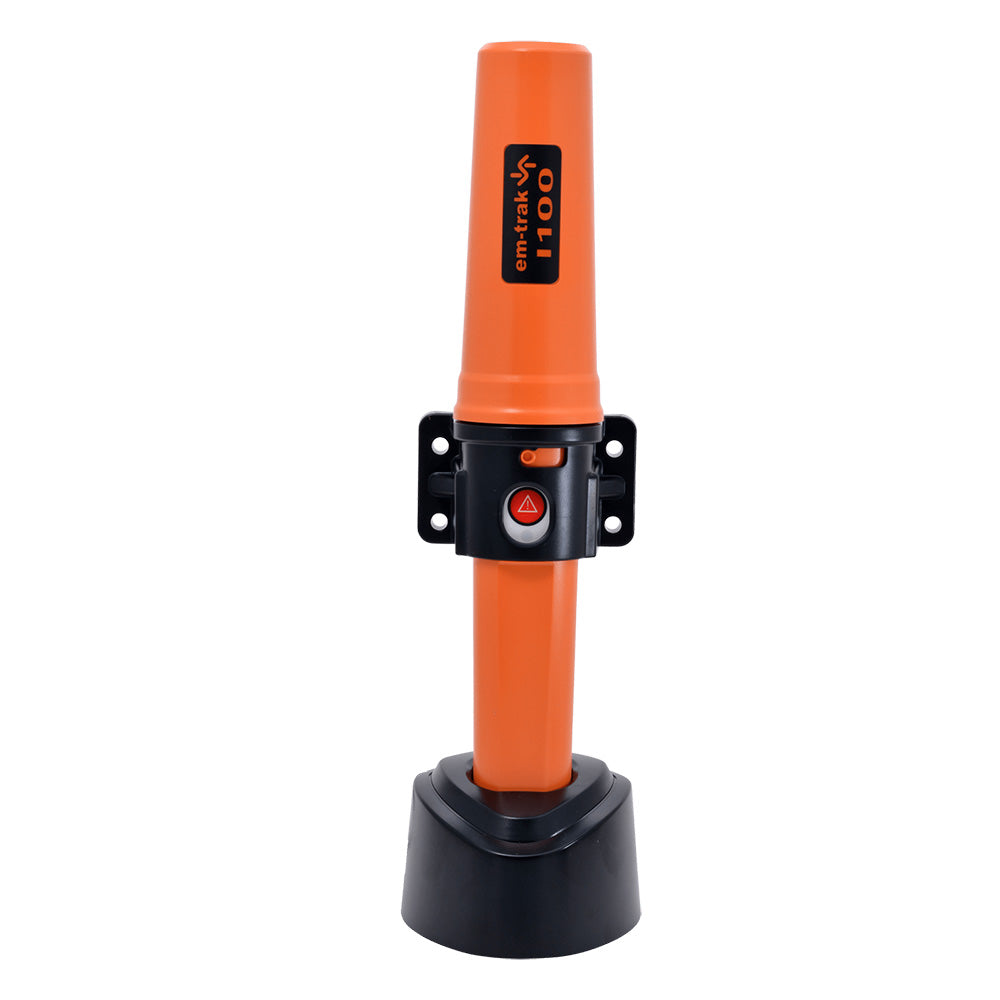

Each I100-X is supplied as a complete kit, which includes the I100-X transponder, mounting bracket, and rapid charging dock. Accessories such as a direct-connect power cable and an alert indicator box are also available.

Features:

• Certified AIS Class B Transponder


• 5 days of continuous use from its internal battery, or connect directly to another onboard power source such as the engine, battery, or solar for a permanent installation


• It takes only 5 hours to completely recharge


• Rugged IPX8 design ensures the operational performance

Physical Environmental Specifications:

• Size (H x W): 370 x 67 mm


• Weight: 355g


• Operating temperature: -25C to +55C


• Storage temperature: -25C to +70C


• Ingress protection: IPx8 (1.1m 30 mins)

Electrical Specifications:

• Battery Capacity: 2300mAh


• Battery Type: 3.7V Li-Ion rechargeable


• Battery Life (default operating conditions): 120 hours

Standards Compliance:

• AIS Standards: IEC 62287-1 Ed. 3. ITU-R M.1371.5


• Product Safety Standards: EN60950-1 2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013


• Environmental Standards: IEC 60945 Ed. 4


• GNSS Performance Standards: IEC 61108-1 Ed 2.0

GNSS:

• Systems Supported: GPS GLONASS


• Channels: 72


• Time to First Fix from Cold Start: 26s

VHF Transceiver:

• VDL Access Scheme: CSTDMA


• Operating Frequency: 156.025MHz 162.025MHz


• Channel Bandwidth: 25kHz


• Receivers / Transmitters: 1 x transmitter


• AIS Transmitter Power: 2W (33dBm radiated)

User Interface:

• Buttons: SOS


• Indicators: Status indicator

Charging Dock:

• Size (H x W x D): 110mm x 120mm x 78mm


• Weight: 360g


• Power Supply: 115V / 240V AC

Configuration Dock:

• Size (H x W x D): 110mm x 120mm x 78mm


• Weight: 360g


• Power Supply: 115V / 240V AC


• PC Interface: USB (cable supplied)

In the Box:

• 1 x Identifier


• 1 x Vessel Bracket and a Fixings Pack


• 1 x Charging Dock

*NOTE: You will also require a configuration dock product code: 417-0047. This is used to program the unit before deployment.

The em-trak I100-X is a rugged, self-contained AIS Class B vessel tracking transponder designed for small boat monitoring and safety. Its compact size and robust construction make it suitable for a variety of marine environments, ensuring reliable performance even in harsh conditions. The I100-X can operate independently using its internal battery, providing over 120 hours of continuous use, or be connected directly to onboard power sources such as the engine, battery, or solar panels, with the internal battery functioning as a backup. This flexibility allows for both portable and permanent installations, accommodating different vessel needs.
The device features a fully waterproof (IPx8 certified) and weatherproof design, capable of withstanding extreme temperatures, humidity, shock, and vibration. It comes as a complete kit including the transponder, mounting bracket, and rapid charging dock, with optional accessories like a direct-connect power cable and alert indicator box available for enhanced functionality. The I100-X is compliant with key AIS standards, ensuring compatibility and safety in marine navigation.
Operationally, the I100-X is equipped with GPS and GLONASS GNSS systems supporting 72 channels, providing a quick first fix within 26 seconds from a cold start. Its VHF transceiver operates at 156.025 MHz and 162.025 MHz frequencies, transmitting at 2W power and utilizing CSTDMA access for vessel identification and tracking. The device includes user-friendly features such as SOS buttons and status indicators, simplifying operation during emergencies or routine monitoring.
Charging and configuration are streamlined with the included docking stations, which support standard AC power supplies and connect via USB for easy setup. The device's durable construction measures approximately 14.6 inches in height, 2.6 inches in width, and 5.3 inches in depth, weighing around 1.3 pounds. It is designed to operate across a wide temperature range from -25°C to +55°C, making it suitable for diverse marine climates. The I100-X adheres to stringent safety and environmental standards, ensuring reliability and compliance for commercial and recreational vessels alike. Whether for fleet monitoring, personal boating, or safety assurance, the em-trak I100-X offers a dependable, easy-to-deploy AIS solution for small vessel owners and operators.

Features:

• Certified AIS Class B transponder for vessel tracking and safety

• Over 5 days of continuous operation from internal battery, with options for direct power connection

• Rapid recharge time of approximately 5 hours for quick deployment

• Rugged IPx8 waterproof design suitable for extreme marine conditions
