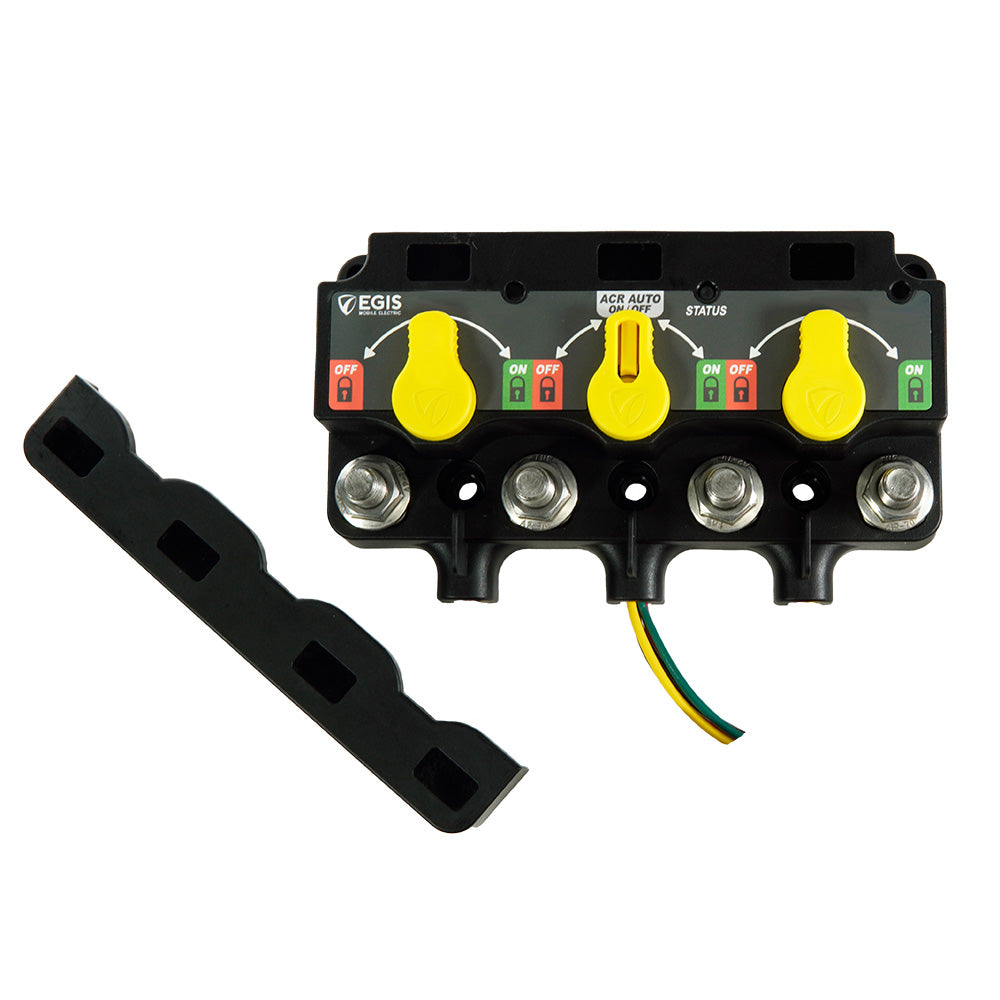

Egis Mobile Electric XD Series Triple Flex 2 Relay/VSR/Relay w/Knobs - 12 P DT - 8830-2535

XD Series Triple Flex 2 Relay/VSR/Relay with Knobs - 12 P DT

Applications/Problems This Solves

• Replaces three individual high-amp relays with One Compact Module, reducing space significantly, eliminating the cost of external link cable connections, eliminating the risk of link cable connections vibrating loose, and providing clear, unambiguous awareness of how to operate manual controls and what state the manual controls have forced the relay into.


• Designed to Replicate Common Multi-Battery Switching and Charge Management Functions: Common dual battery load switching via the outer relays and a central automatic charging relay to share charge current is easily implemented.


• Multiple Automatic Charging Relay (ACR) Into One Device:For 3-4 Battery Systems that require 2 or 3 ACRs, a single three-relay ACR provides a drastic improvement in off-state quiescent current draw, space used, and reduces unnecessary interconnection cables.


• Expandable with Link and Cross-Link Busbars to Additional Dual, Triple, or Single XD Relays: Supports 3 or 4 battery systems with standard busbar interconnect accessories.

Features:

• Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.


• Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions)


• Simple Programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers.


• 35-75% Reduction in Mounting Space Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts.


• Plug Play Compatible with Legacy Competitor Products: Single, dual, and triple relay options available with DTM/ATM connectors, pin-for-pin compatible with ML Series Bi-stable Relays.


• 90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality.

The Egis Mobile Electric XD Series Triple Flex 2 Relay/VSR/Relay with Knobs is engineered to streamline multi-battery management systems, offering a compact and reliable solution for heavy-duty applications. This innovative module replaces three individual high-amp relays with a single, space-saving unit, reducing installation complexity and eliminating the need for external link cables that can vibrate loose over time. Its design simplifies operation and enhances safety by providing clear manual controls and status indicators, ensuring users can easily determine relay states and override conditions. The rugged construction features sealed IP67/IP6K9K protection, making it suitable for harsh environments, while stainless steel cable lug studs ensure durable and secure connections. The large mounting holes accommodate 1/4-20 or M6 hardware, facilitating versatile installation options. This relay module is ideal for applications requiring common dual battery load switching, automatic charge sharing, and multi-battery systems, especially where space and efficiency are critical. Its expandability via link and cross-link busbars allows integration with additional dual, triple, or single relays, supporting complex electrical configurations. The Egis XD Series offers simple dip switch programming, providing flexible relay operation adaptable to various OEM and installer needs. With advanced bi-stable solenoid technology, it achieves a 35-75% reduction in mounting space and weight compared to traditional relay layouts. Its plug-and-play compatibility with legacy products ensures seamless integration into existing systems, while its significantly reduced off-state current—up to 95% less than competing solutions—contributes to energy efficiency and system longevity. Whether managing multiple batteries or automatic charging circuits, the Egis XD Series Triple Flex 2 Relay offers a high-performance, space-efficient, and easy-to-operate solution for demanding electrical systems.

Features:

• Sealed to IP67/IP6K9K standards with high-temperature electronics and stainless steel cable lug studs for durability

• Intuitive manual control options facilitate easy operation and status awareness, including manual override and lock modes

• Simple dip switch programmability provides customization for various relay functions and OEM requirements

• Achieves 35-75% reduction in mounting space and system weight through advanced bi-stable solenoid design

• Plug-and-play compatibility with legacy relay products, including DTM/ATM connectors, ensuring seamless integration

• Reduces off-state current by up to 95%, enhancing energy efficiency and system reliability
