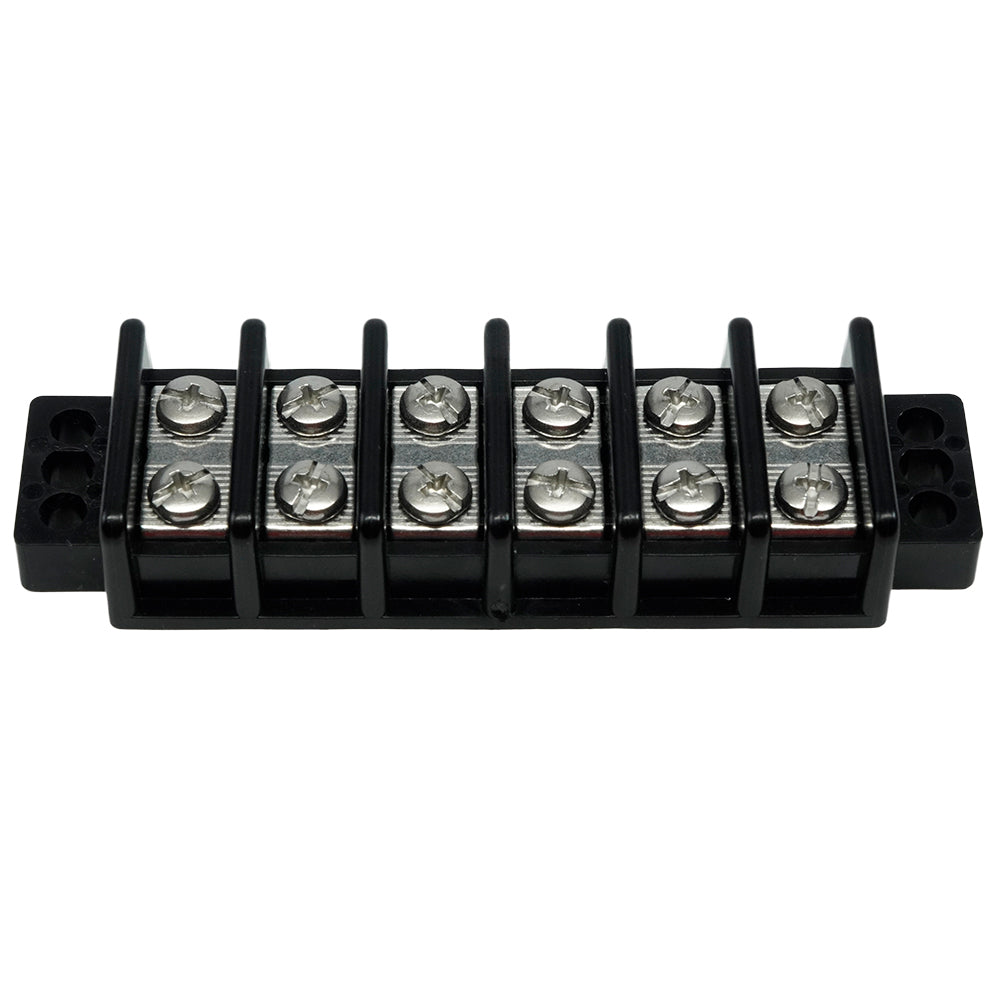

Egis Mobile Electric Terminal Block - 30 Amp - 6 Circuit (Part Number: 2230-06)

Terminal Block - 30 Amp - 6 Circuit

• Marine-grade materials ensure long-lasting reliability in harsh environment applications


• Screw terminal connection pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair


• 125 Volt AC or DC rated easily supports 12, 24, 36, 48 Vdc systems, as well as 120/240 Vac applications

Features:

• Screw Terminal Connection Pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair. Terminal blocks are available in 2, 4, 6, 8, 10, or 12 matching connection pairs.


• Marine-grade materials ensure long-lasting reliability in harsh environment applications. Tin-plated copper alloy conductors, stainless steel hardware, and high-temperature insulation materials deliver a robust solution.


• 125 Volt AC or DC Rated easily supports 12, 24, 36, and 48 Vdc systems, as well as 120/240 Vac applications (ensure implementation meets applicable accessibility standards as applicable.


• Anti-rotation ribs on conductor strips reduce the chance of wire terminal rotation if strain relief distances are long.


• Protects Ring Terminal Splices from shorting to adjacent circuits or ground with high insulation walls.


• Bullet-proof Construction: High-temperature insulation material, tin-plated copper alloy conductors, and stainless steel hardware.


• 4-Year Warranty: We stand behind our products ability to meet your needs.

Specifications:

• Continuous Current (Amps): 30


• Max Voltage (Vac/Vdc): 250


• Dielectric Strength: 2000Vac


• Hardware Material: Stainless Steel


• CE Marked: Yes


• ROHS Compliant: Yes

The Egis Mobile Electric Terminal Block is designed to provide superior performance in demanding conditions. With a capacity of 30 Amps and the ability to handle both AC and DC voltages up to 250 Volts, this 6-circuit block is perfect for a variety of applications, including marine and automotive environments. Its robust construction features marine-grade materials, ensuring long-lasting reliability even in harsh conditions.

This terminal block is equipped with screw terminal connection pairs, designed to facilitate easy connections with separate copper alloy bus bars for each pair. The anti-rotation ribs on conductor strips help minimize wire terminal rotation, providing enhanced stability during use. With high-temperature insulation and tin-plated copper alloy conductors, you can trust this terminal block to protect your connections efficiently. Plus, it comes with a 4-year warranty, underscoring Egis's commitment to quality and performance.

Features:
* Marine-grade materials ensure long-lasting reliability in harsh environment applications.: Marine-grade materials ensure long-lasting reliability in harsh environment applications.
* Screw terminal connection pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair.: Screw terminal connection pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair.
* 125 Volt AC or DC rated, easily supports 12, 24, 36, and 48 Vdc systems, as well as 120/240 Vac applications.: 125 Volt AC or DC rated, easily supports 12, 24, 36, and 48 Vdc systems, as well as 120/240 Vac applications.
* Anti-rotation ribs on conductor strips reduce the chance of wire terminal rotation if strain relief distances are long.: Anti-rotation ribs on conductor strips reduce the chance of wire terminal rotation if strain relief distances are long.
* Protects ring terminal splices from shorting to adjacent circuits or ground with high insulation walls.: Protects ring terminal splices from shorting to adjacent circuits or ground with high insulation walls.
* Bullet-proof construction with high-temperature insulation material, tin-plated copper alloy conductors, and stainless steel hardware.: Bullet-proof construction with high-temperature insulation material, tin-plated copper alloy conductors, and stainless steel hardware.
* 4-year warranty backing the product's ability to meet your needs.: 4-year warranty backing the product's ability to meet your needs.
