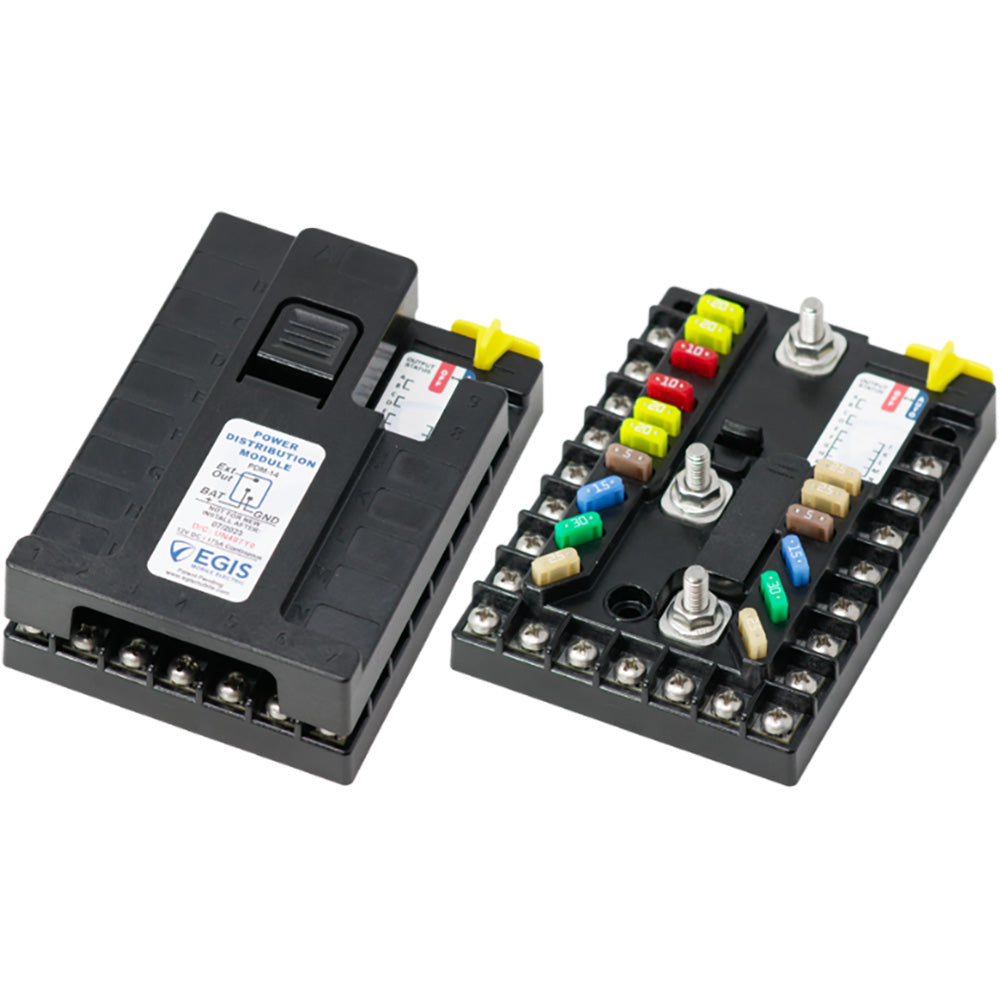

Egis Mobile Electric PDM 14 Circuit + Ground 175A 12V with Kill Switch - 2601

PDM 14 Circuit + Ground 175A 12V with Kill Switch

Designed for professional installers, this is a compact solution that combines battery protection, power switching, circuit protection, a ground bus, and an optional manual override switch. This includes three 45-amp high-power circuits and three output groups, which can be independently set to 24/7, ignition switched, or time delay. Expandable up to 31 fused outputs with RT or CT fuse blocks.

Features:

• For 12-volt systems, the allowed voltage range is 8-18 VDC
• Total continuous output limit: 175 amps
• Three load groups with a continuous output of 75-115 amps
• Optional time delay 0-10 hrs
• Optional low voltage protection 11-12.2 volts
• Offload current draw 1.3 mA

The Egis Mobile Electric PDM 14 Circuit + Ground 175A 12V with Kill Switch is a professional-grade power management system designed to enhance vehicle electrical safety and functionality. This compact unit integrates multiple features including battery protection, power switching, circuit protection, and a grounded bus, providing a comprehensive solution for complex wiring setups. The system includes three high-power circuits rated at 45 amps each, along with three output groups that can be independently configured for 24/7 operation, ignition switching, or time delay, allowing for customized control based on your vehicle's needs. With expandability up to 31 fused outputs using RT or CT fuse blocks, this device offers flexibility for a variety of installation requirements, making it ideal for professional installers seeking reliable and scalable power management.
The Egis PDM is optimized for 12-volt systems with an operational voltage range of 8-18 VDC, ensuring compatibility with most automotive electrical systems. Its continuous total output capacity of 175 amps supports high-demand applications, while the three load groups collectively deliver between 75 and 115 amps, providing ample power for multiple accessories or components. An optional time delay feature can be set from 0 to 10 hours, enabling delayed activation of circuits to protect sensitive equipment during startup. Additionally, the device includes low voltage protection at 11-12.2 volts to prevent battery drain and ensure system stability. Its minimal offload current draw of just 1.3 mA makes it energy efficient and suitable for long-term installations.
Built by Egis Mobile Electric, this power distribution module combines durability with advanced control features, making it an essential component for professional vehicle installations that demand reliable power management and circuit protection. Its design emphasizes safety, expandability, and ease of use, ensuring optimal performance across a wide range of applications.

Features:

• Designed for 12-volt systems with an operational voltage range of 8-18 VDC

• Total continuous output limit of 175 amps for high-demand applications

• Includes three high-power circuits rated at 45 amps each

• Three output groups can be independently configured for 24/7, ignition, or time delay operation

• Expandable up to 31 fused outputs using RT or CT fuse blocks

• Optional time delay feature adjustable from 0 to 10 hours

• Low voltage protection at 11-12.2 volts to safeguard battery health

• Minimal offload current draw of 1.3 mA for energy efficiency

• Built-in ground bus and manual kill switch for enhanced safety and control
