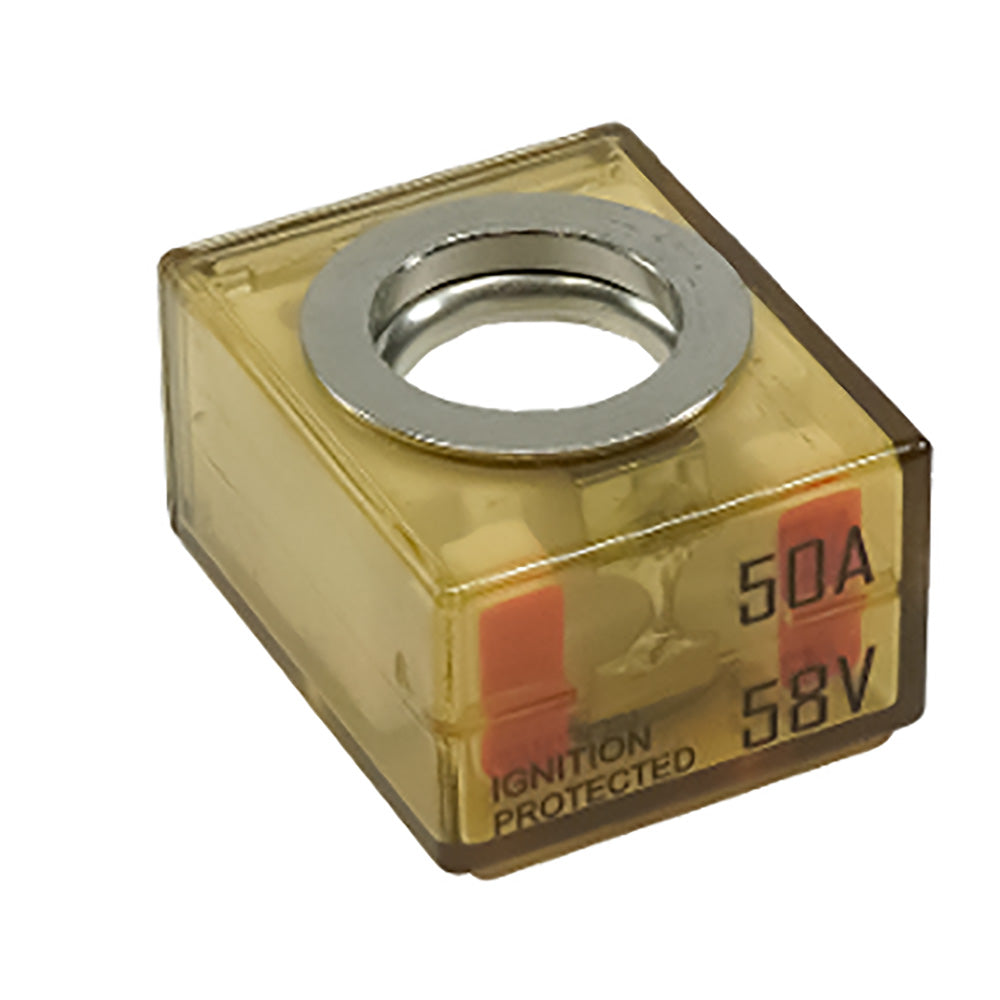

Egis Mobile Electric MRBF Terminal Fuse - 50 Amp (Part Number: 3603-050)

MRBF Terminal Fuse - 50 Amp

• Transparent easy visual of fuse status


• Ignition-protected SAE/J1171-ISO8846


• High interrupt rating satisfies ABYC requirements for DC main circuit protection on larger battery banks


• Color-coded for easy ID of amperage rating

Features:

• Protects Electrical Circuits from short circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.


• High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power


• Ignition Protected safe for installation in closed compartments with potentially explosive gases Harsh Environment design with shock and vibration resistance ideal for marine and vehicle electrical systems.


• Sealed Against Dust Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation


• 58 Vdc Rating: easily supports 12 to 48V nominal applications.


• High Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power


• 4-Year Warranty: We stand behind our products ability to meet your needs.

Specifications:

• Continuous Current (Amps): 50


• Max Voltage (VDC): 58


• Interrupt Rating @ 14 VDC (Amps): 10,000


• Interrupt Rating @ 48Vdc (Amps): 5,000


• Interrupt Rating @ 58Vdc (Amps): 2,000


• Ingress Protection: IP66

The Egis Mobile Electric MRBF Terminal Fuse is a top-tier solution for safeguarding your electrical circuits with a reliable 50 Amp rating. Designed for high-performance applications, this fuse provides an easy visual indication of its status, allowing for quick checks without the need for complex tools. Its ignition-protected design meets SAE/J1171-ISO8846 standards, ensuring safety in potentially hazardous environments while effectively managing the demands of larger battery banks.

This MRBF terminal fuse not only protects against short circuit events but also over-current loads, preventing costly damage to wire insulation. With a high interrupt rating that exceeds ABYC requirements, it is perfect for DC main circuit protection. The fuse is color-coded for easy identification of amperage ratings, and its rugged construction is designed to withstand shock and vibration, making it ideal for marine and vehicle electrical systems. With a sealed design against dust and water intrusion, you can trust this fuse to deliver reliable protection throughout its service life.

Features:
* Protects electrical circuits from short circuit events and over-current loads, preventing wire insulation overheating and destruction.: Protects electrical circuits from short circuit events and over-current loads, preventing wire insulation overheating and destruction.
* High interrupt current safely protects circuits connected to large paralleled battery banks with significant available power.: High interrupt current safely protects circuits connected to large paralleled battery banks with significant available power.
* Ignition protected for safe installation in closed compartments with potentially explosive gases.: Ignition protected for safe installation in closed compartments with potentially explosive gases.
* Harsh environment design with shock and vibration resistance, ideal for marine and vehicle electrical systems.: Harsh environment design with shock and vibration resistance, ideal for marine and vehicle electrical systems.
* Sealed against dust and water intrusion to ensure reliable circuit protection for the life of the installation.: Sealed against dust and water intrusion to ensure reliable circuit protection for the life of the installation.
* Supports applications with a 58 Vdc rating, accommodating 12 to 48V nominal systems.: Supports applications with a 58 Vdc rating, accommodating 12 to 48V nominal systems.
* Backed by a 4-year warranty, affirming the product's ability to meet your needs.: Backed by a 4-year warranty, affirming the product's ability to meet your needs.
