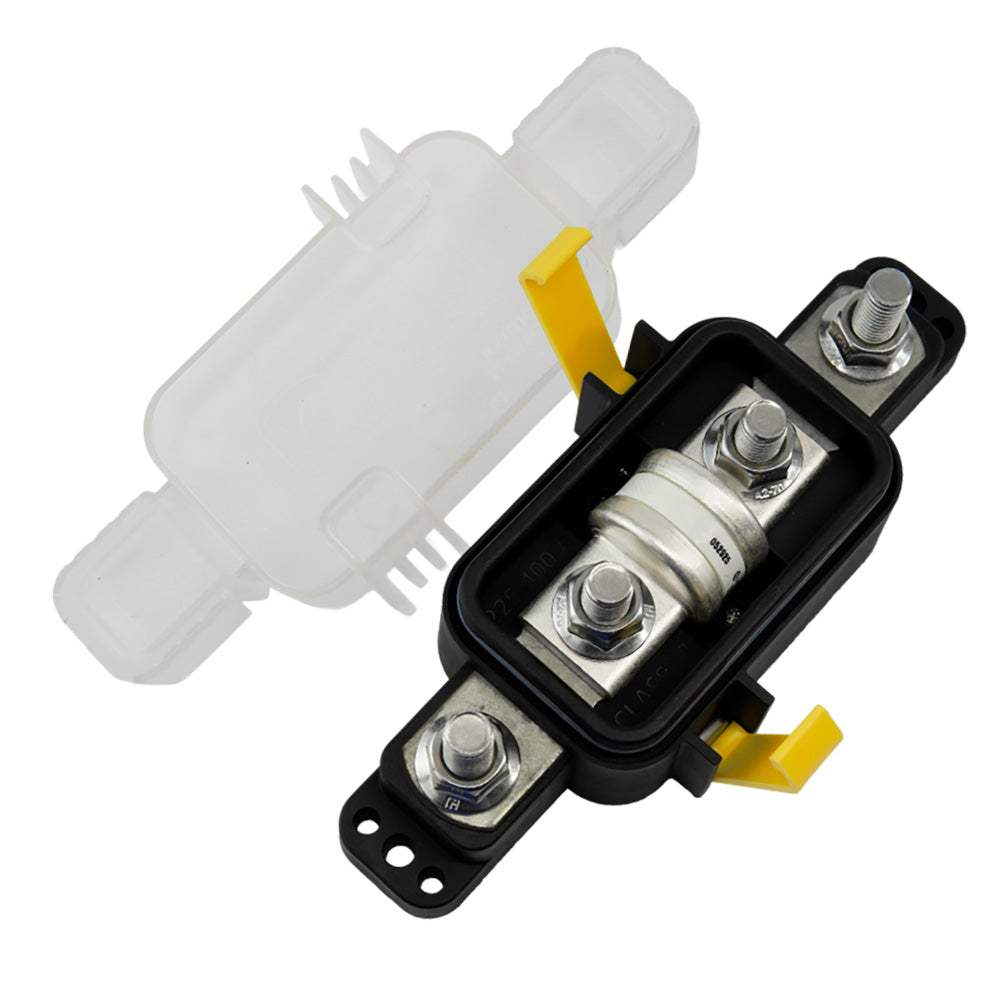

Egis Mobile Electric Class T Fuse Block 225-400A Sealed for Heavy-Duty Electrical Systems - 3912

Class T Fuse Block 225-400 A - Sealed

Applications/Problems This Solves:

• Separate Stud Connections for Cable Mounting allow heavier gauge cables and their terminals to feed in and out of the fuse, which would otherwise land on the fuse tab itself.
• Ignition Protected to support installation in potentially hazardous gaseous environments such as LPG or on gas boats.

Features:

• Tin-plated copper busbar delivers superior electrical performance with minimal voltage drop.
• Stainless Steel Self-Locking Hardware ensures robust connections long-term connection reliability.
• Bulletproof construction from glass-filled nylon delivers the highest longevity in demanding environments.
• 4 Year Warranty

Specifications:

• Maximum Amperage: 225-400A
• Max Voltage: 80 VDC
• Ingress Protection Ratings: IP66, IP67, IP6K9K
• Mounting Holes: 4x #10 (M5) 2x 1/4 (M6)
• Mounting Screw Max Torque: 50 in-lbs (5.5 N-m)
• Busbar Material: Tin-Plated Copper

The Egis Mobile Electric Class T Fuse Block, part number 3912, is engineered for high-current applications requiring reliable and secure protection. Designed with a sealed construction, this fuse block is suitable for demanding environments where protection against dust and water ingress is critical. Its maximum amperage capacity ranges from 225 to 400 amps, making it ideal for industrial, marine, and automotive power systems. The fuse block features a robust glass-filled nylon body that provides durability and longevity in harsh conditions, ensuring long-term performance. The inclusion of multiple mounting holes allows flexible installation options, with mounting screws torqued to specifications to maintain a secure fit. The busbar is crafted from tin-plated copper, offering superior electrical conductivity and minimal voltage drop, which enhances overall system efficiency.

The design includes separate stud connections for cable mounting, enabling the use of heavier gauge cables and terminals without interfering with the fuse tab itself. This feature simplifies wiring and improves safety by providing dedicated connection points. The fuse block is ignition protected, supporting installation in potentially hazardous environments such as LPG or gas-powered boats, ensuring compliance with safety standards. The stainless steel self-locking hardware guarantees robust and reliable long-term connections, reducing the risk of failure over time. The product is rated IP66, IP67, and IP6K9K, providing excellent ingress protection against dust and water, suitable for outdoor or wet environments.

Backed by a four-year warranty, the Egis Class T Fuse Block offers peace of mind for critical electrical systems. Easy to install with mounting hardware rated at 50 inch-pounds of torque, it is a dependable choice for professionals seeking a durable, high-performance fuse protection solution in demanding applications.

Features:

• Sealed design providing protection against dust and water ingress

• Maximum amperage range of 225-400 amps for high-current applications

• Tin-plated copper busbar for superior electrical conductivity

• Stainless steel self-locking hardware for durable, reliable connections

• Constructed from glass-filled nylon for high durability and longevity

• Separate stud connections allow heavy gauge cable mounting

• Ignition protected for safe installation in hazardous gaseous environments

• Multiple mounting options with specified torque for secure installation

• Ingress Protection Ratings: IP66, IP67, IP6K9K for outdoor and industrial use

• Four-year warranty ensuring long-term performance
