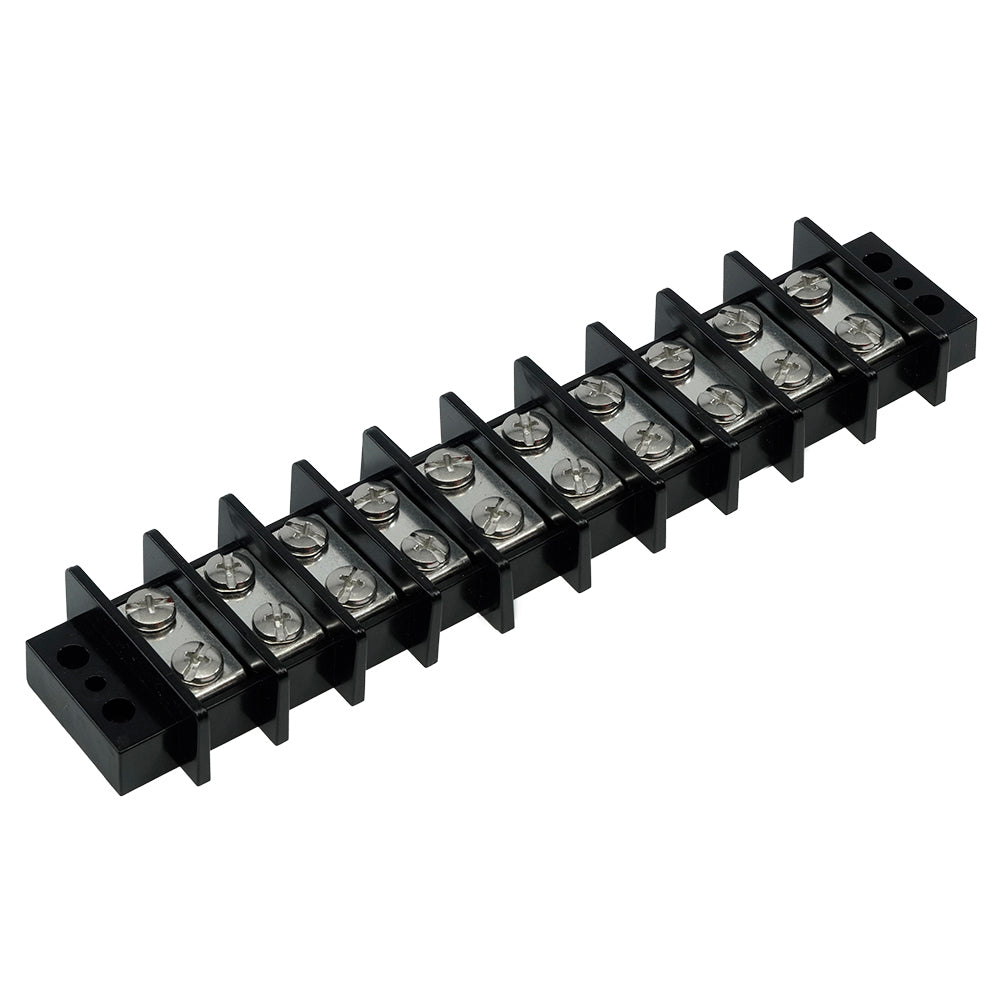

Egis Mobile Electric 2265-10 Terminal Block - 65 Amp - 10 Circuit

Terminal Block - 65 Amp - 10 Circuit

• Marine-grade materials ensure long-lasting reliability in harsh environment applications


• Screw terminal connection pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair


• 125 Volt AC or DC rated easily supports 12, 24, 36, 48 Vdc systems, as well as 120/240 Vac applications

Features:

• Screw Terminal Connection Pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair. Terminal blocks are available in 2, 4, 6, 8, 10, or 12 matching connection pairs.


• Marine-grade materials ensure long-lasting reliability in harsh environment applications. Tin-plated copper alloy conductors, stainless steel hardware, and high-temperature insulation materials deliver a robust solution.


• 125 Volt AC or DC Rated easily supports 12, 24, 36, and 48 Vdc systems, as well as 120/240 Vac applications (ensure implementation meets applicable accessibility standards as applicable.


• Anti-rotation ribs on conductor strips reduce the chance of wire terminal rotation if strain relief distances are long.


• Protects Ring Terminal Splices from shorting to adjacent circuits or ground with high insulation walls.


• Bullet-proof Construction: High-temperature insulation material, tin-plated copper alloy conductors, and stainless steel hardware.


• 4-Year Warranty: We stand behind our products ability to meet your needs.

Specifications:

• Continuous Current (Amps): 65


• Max Voltage (Vac/Vdc): 250


• Dielectric Strength: 2000Vac


• Hardware Material: Stainless Steel


• CE Marked: Yes


• ROHS Compliant: Yes

The Egis Mobile Electric 2265-10 Terminal Block is engineered for high-performance applications, providing a reliable solution for managing electrical circuits. Designed to support up to 65 amps, this terminal block is made from marine-grade materials that assure durability even in the harshest environments. With a versatile rating of 125 volts AC or DC, it effectively accommodates 12, 24, 36, and 48 Vdc systems, as well as 120/240 Vac applications.

Featuring screw terminal connection pairs, the Egis terminal block ensures secure connections with separate copper alloy bus bars for each pair. The anti-rotation ribs on the conductor strips minimize the risk of wire terminal rotation, enhancing safety and reliability. Additionally, the high-temperature insulation materials and stainless steel hardware offer exceptional protection against wear and tear, making this terminal block ideal for marine and industrial environments. Backed by a 4-year warranty, the Egis Mobile Electric 2265-10 Terminal Block is a trusted choice for your circuit management needs.

Features:
* Marine-grade materials ensure long-lasting reliability in harsh environments.: Marine-grade materials ensure long-lasting reliability in harsh environments.
* Screw terminal connection pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair.: Screw terminal connection pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair.
* Rated for 125 volts AC or DC, easily supports various DC systems and AC applications.: Rated for 125 volts AC or DC, easily supports various DC systems and AC applications.
* Anti-rotation ribs on conductor strips reduce the chance of wire terminal rotation.: Anti-rotation ribs on conductor strips reduce the chance of wire terminal rotation.
* High insulation walls protect ring terminal splices from shorting to adjacent circuits or ground.: High insulation walls protect ring terminal splices from shorting to adjacent circuits or ground.
* Bullet-proof construction with high-temperature insulation, tin-plated copper alloy conductors, and stainless steel hardware.: Bullet-proof construction with high-temperature insulation, tin-plated copper alloy conductors, and stainless steel hardware.
* 4-year warranty ensures product reliability and performance.: 4-year warranty ensures product reliability and performance.
