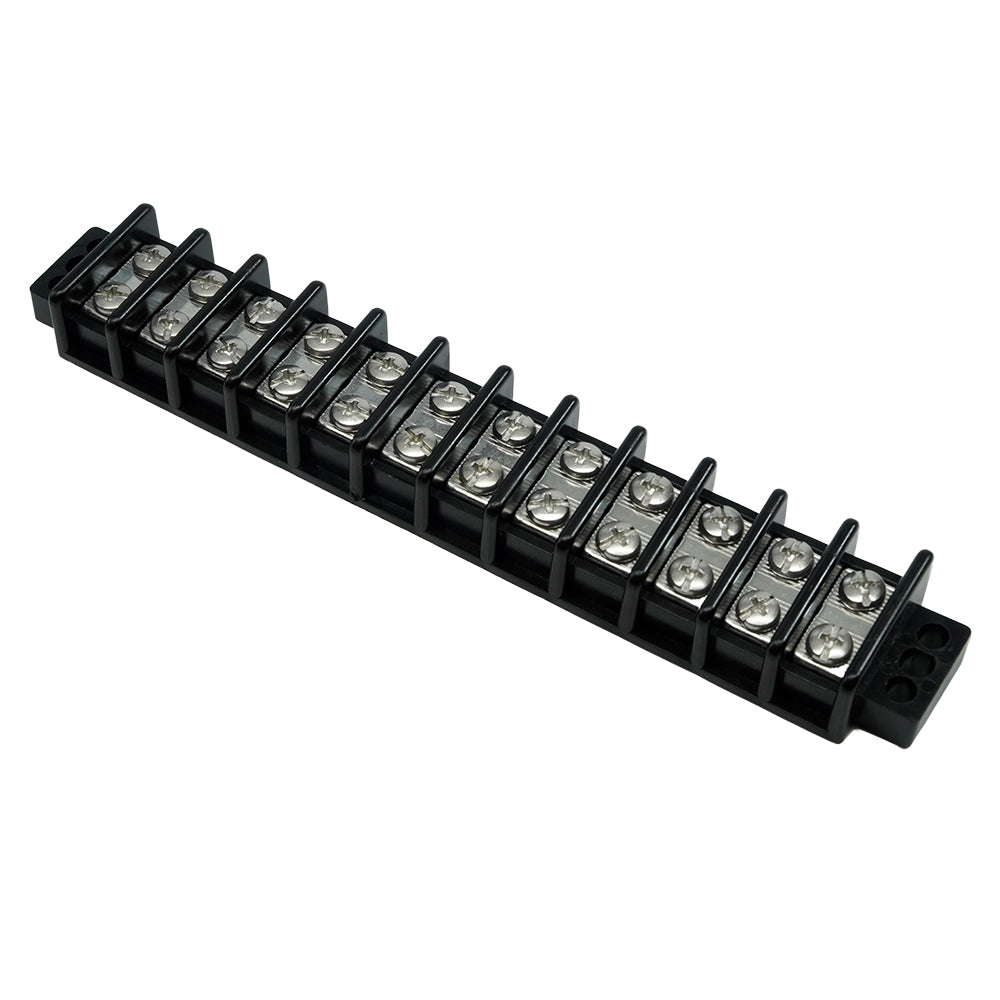

Egis Mobile Electric 2230-12 Terminal Block - 30 Amp - 12 Circuit

Terminal Block - 30 Amp - 12 Circuit

• Marine-grade materials ensure long-lasting reliability in harsh environment applications


• Screw terminal connection pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair


• 125 Volt AC or DC rated easily supports 12, 24, 36, 48 Vdc systems, as well as 120/240 Vac applications

Features:

• Screw Terminal Connection Pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair. Terminal blocks are available in 2, 4, 6, 8, 10, or 12 matching connection pairs.


• Marine Grade Materials ensure long-lasting reliability in harsh environment applications. Tin-plated copper alloy conductors, stainless steel hardware, and high-temperature insulation materials deliver a robust solution.


• 125 Volt AC or DC Rated easily supports 12, 24, 36, and 48 Vdc systems, as well as 120/240 Vac applications (ensure implementation meets applicable accessibility standards as applicable.


• Anti-rotation ribs on conductor strips reduce the chance of wire terminal rotation if strain relief distances are long.


• Protects Ring Terminal Splices from shorting to adjacent circuits or ground with high insulation walls.


• Bullet-proof Construction: High-temperature insulation material, tin-plated copper alloy conductors, and stainless steel hardware.


• 4-Year Warranty: We stand behind our products ability to meet your needs.

Specifications:

• Continuous Current (Amps): 30


• Max Voltage (Vac/Vdc): 250


• Dielectric Strength: 2000Vac


• Hardware Material: Stainless Steel


• CE Marked: Yes


• ROHS Compliant: Yes

The Egis Mobile Electric 2230-12 Terminal Block is designed for reliable performance in harsh environments. Featuring marine-grade materials, this 30 Amp terminal block ensures long-lasting durability and functionality, making it perfect for various applications. The screw terminal connection pairs allow for easy installation and secure connections, providing one input and one output screw connected to separate copper alloy bus bars for each matching pair.

With a voltage rating of 125 Volt AC or DC, the Egis Terminal Block can easily support 12, 24, 36, and 48 Vdc systems, as well as 120/240 Vac applications. Its innovative design includes anti-rotation ribs on conductor strips to reduce the risk of wire terminal rotation, ensuring safety and reliability. Additionally, high insulation walls protect ring terminal splices from shorting to adjacent circuits or ground, making this terminal block a robust solution for any electrical setup.

Features:
* Screw terminal connection pairs provide secure input and output connections with separate copper alloy bus bars.: Screw terminal connection pairs provide secure input and output connections with separate copper alloy bus bars.
* Marine-grade materials ensure long-lasting reliability in harsh environments.: Marine-grade materials ensure long-lasting reliability in harsh environments.
* Rated for 125 Volt AC or DC, supports 12, 24, 36, and 48 Vdc systems, as well as 120/240 Vac applications.: Rated for 125 Volt AC or DC, supports 12, 24, 36, and 48 Vdc systems, as well as 120/240 Vac applications.
* Anti-rotation ribs on conductor strips reduce wire terminal rotation risks.: Anti-rotation ribs on conductor strips reduce wire terminal rotation risks.
* High insulation walls protect ring terminal splices from shorting to adjacent circuits or ground.: High insulation walls protect ring terminal splices from shorting to adjacent circuits or ground.
* Constructed with high-temperature insulation materials, tin-plated copper alloy conductors, and stainless steel hardware for durability.: Constructed with high-temperature insulation materials, tin-plated copper alloy conductors, and stainless steel hardware for durability.
* Backed by a 4-year warranty to ensure customer satisfaction.: Backed by a 4-year warranty to ensure customer satisfaction.
