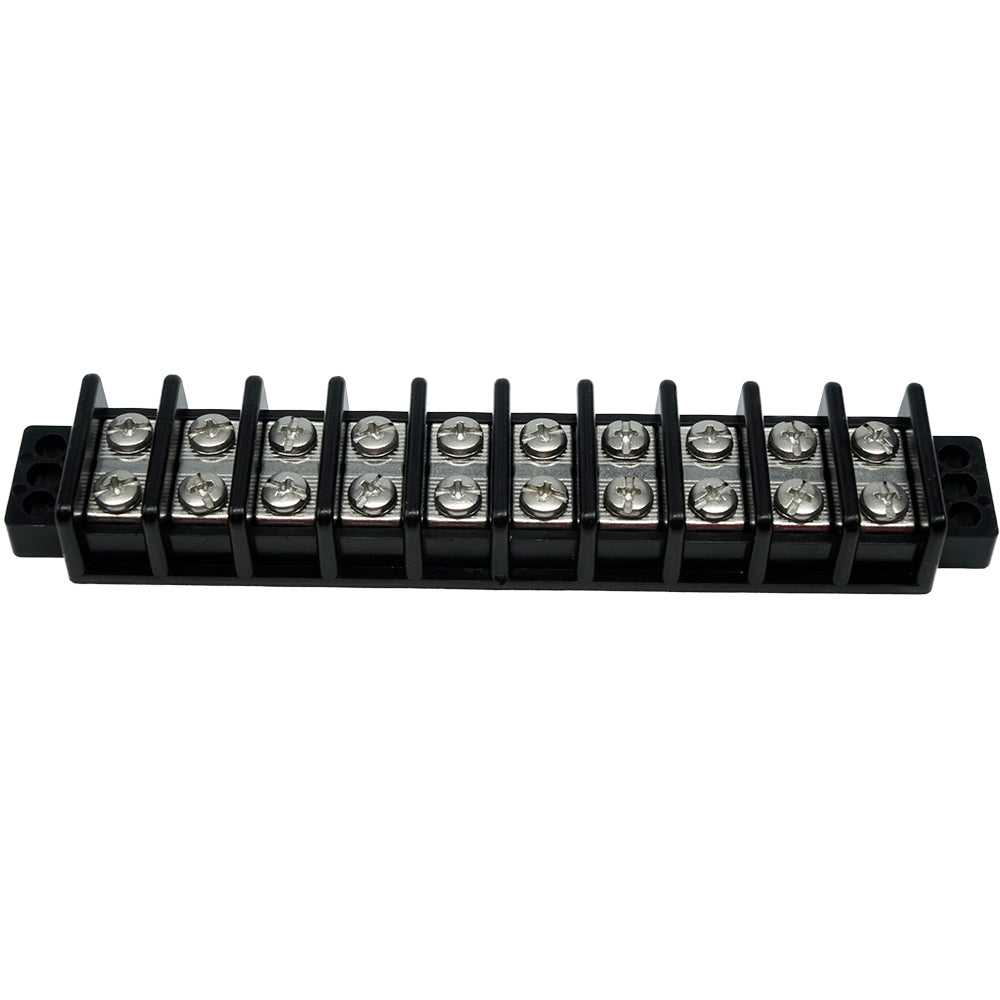

Egis Mobile Electric 2230-10 Terminal Block - 30 Amp - 10 Circuit

Terminal Block - 30 Amp - 10 Circuit

• Marine-grade materials ensure long-lasting reliability in harsh environment applications


• Screw terminal connection pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair


• 125 Volt AC or DC rated easily supports 12, 24, 36, 48 Vdc systems, as well as 120/240 Vac applications

Features:

• Screw Terminal Connection Pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair. Terminal blocks are available in 2, 4, 6, 8, 10, or 12 matching connection pairs.


• Marine Grade Materials ensure long-lasting reliability in harsh environment applications. Tin-plated copper alloy conductors, stainless steel hardware, and high-temperature insulation materials deliver a robust solution.


• 125 Volt AC or DC Rated easily supports 12, 24, 36, and 48 Vdc systems, as well as 120/240 Vac applications (ensure implementation meets applicable accessibility standards as applicable.


• Anti-rotation ribs on conductor strips reduce the chance of wire terminal rotation if strain relief distances are long.


• Protects Ring Terminal Splices from shorting to adjacent circuits or ground with high insulation walls.


• Bullet-proof Construction: High-temperature insulation material, tin-plated copper alloy conductors, and stainless steel hardware.


• 4-Year Warranty: We stand behind our products ability to meet your needs.

Specifications:

• Continuous Current (Amps): 30


• Max Voltage (Vac/Vdc): 250


• Dielectric Strength: 2000Vac


• Hardware Material: Stainless Steel


• CE Marked: Yes


• ROHS Compliant: Yes

The Egis Mobile Electric 2230-10 Terminal Block is designed for high-performance applications, equipped to handle 30 Amps across 10 circuits. Built with marine-grade materials, this terminal block ensures reliability even in the harshest environments. Its robust design features screw terminal connection pairs that provide a secure input and output, making it ideal for various electrical systems.

With a voltage rating of 125 Volt AC or DC, this terminal block supports a range of systems including 12, 24, 36, and 48 Vdc, as well as 120/240 Vac applications. The anti-rotation ribs on the conductor strips minimize the risk of wire terminal rotation, enhancing safety and performance. Plus, the high insulation walls protect ring terminal splices from shorting to adjacent circuits, ensuring a safe and efficient electrical setup.

Egis stands behind the quality of its products, offering a 4-year warranty. Choose the Egis Mobile Electric 2230-10 Terminal Block for a durable, reliable, and efficient electrical solution that meets your needs.

Features:
* Marine-grade materials ensure long-lasting reliability in harsh environment applications.: Marine-grade materials ensure long-lasting reliability in harsh environment applications.
* Screw terminal connection pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connection pair.: Screw terminal connection pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connection pair.
* 125 Volt AC or DC rated easily supports 12, 24, 36, and 48 Vdc systems, as well as 120/240 Vac applications.: 125 Volt AC or DC rated easily supports 12, 24, 36, and 48 Vdc systems, as well as 120/240 Vac applications.
* Anti-rotation ribs on conductor strips reduce the chance of wire terminal rotation if strain relief distances are long.: Anti-rotation ribs on conductor strips reduce the chance of wire terminal rotation if strain relief distances are long.
* High insulation walls protect ring terminal splices from shorting to adjacent circuits or ground.: High insulation walls protect ring terminal splices from shorting to adjacent circuits or ground.
* Bullet-proof construction with high-temperature insulation material, tin-plated copper alloy conductors, and stainless steel hardware.: Bullet-proof construction with high-temperature insulation material, tin-plated copper alloy conductors, and stainless steel hardware.
* 4-year warranty to ensure product reliability and customer satisfaction.: 4-year warranty to ensure product reliability and customer satisfaction.
