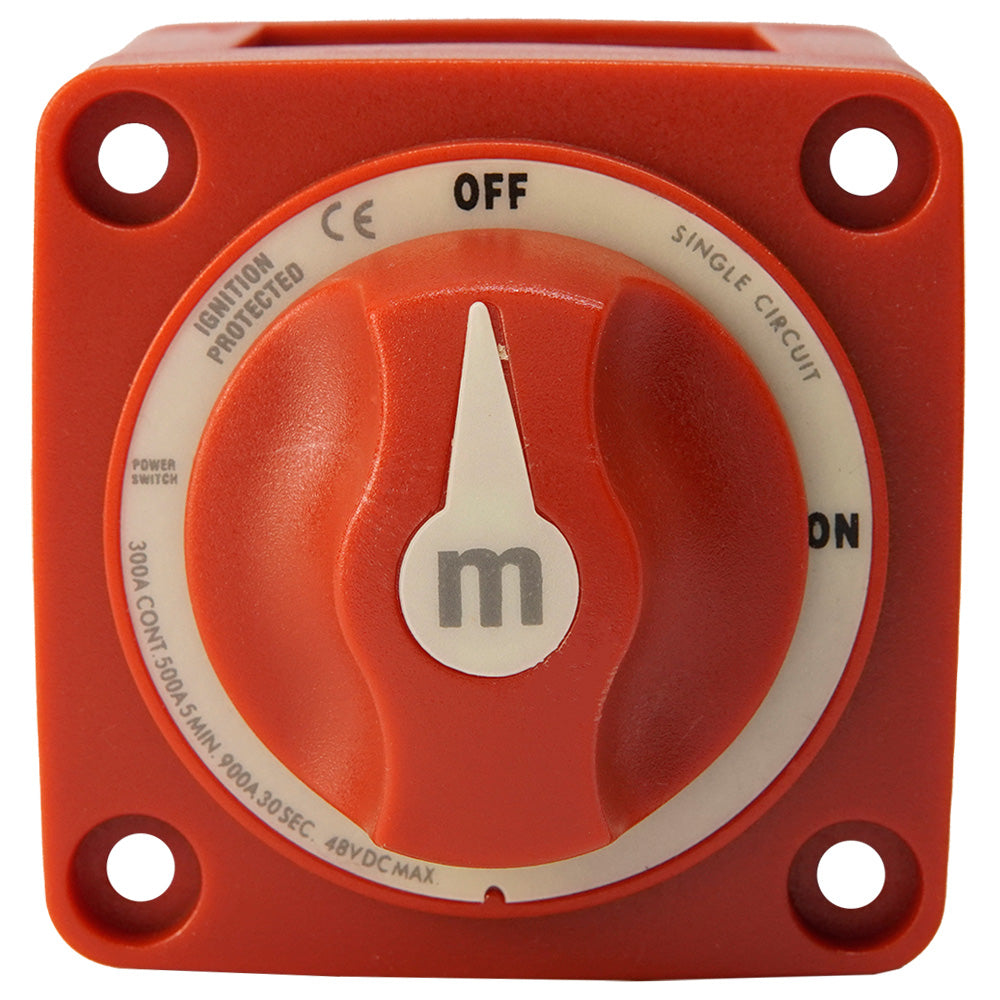

Egis M-Series 300A Battery Switch Off/On Knob Actuator

M-Series 300A Battery Switch Off/On Knob Actuator

Sealed Against Dust Water Intrusion - To ensure reliable circuit protection for the life of the electrical system installation.

Ignition Protected - Safe for installation in closed compartments with potential explosive gases.

Serrated Flange Lock Nuts - Improves resistance to cable terminal loosening in high-vibration environments.

Flexible Mounting Options - Allow for multiple mounting configurations and a variety of installation types.

Harsh Environment Design - With stainless steel hardware, serrated flange nuts, and high-temperature materials.

Specifications:

• Maximum Voltage (Single Circuit): 48 Vdc


• Maximum Voltage (Selector / Dual Circuit): 32 Vdc


• Stud Size And Thread: 3/8-16


• Terminal Stud Torque: 120 in-lbs (13.6 N-m)


• Ring Terminal Size Acceptance: 3/8 (M10)


• Mounting Holes: #10 Screw


• Live Switching Rating: 25 Amps


• Ignition Protection Rating: SAE J1171 / ISO 8846


• Bulkhead / Panel - Mounting Hole Size: 2-5/8 / 2-5/16


• Cable Size to Meet Rating: 4/0 AWG
