Digital Yacht AIT6000 Class B+ AIS Transponder with Satellite Tracking and NMEA 2000 Gateway - ZDIGAIT6000

**As the FCC requires all units sold in the US to be programmed by a qualified technician. Please submit the form below for programming at time of purchase. A copy of the MMSI registration or FCC Ship Station License is required along with the vessel master or owners signature on the completed programming form.**

Click here to download form.

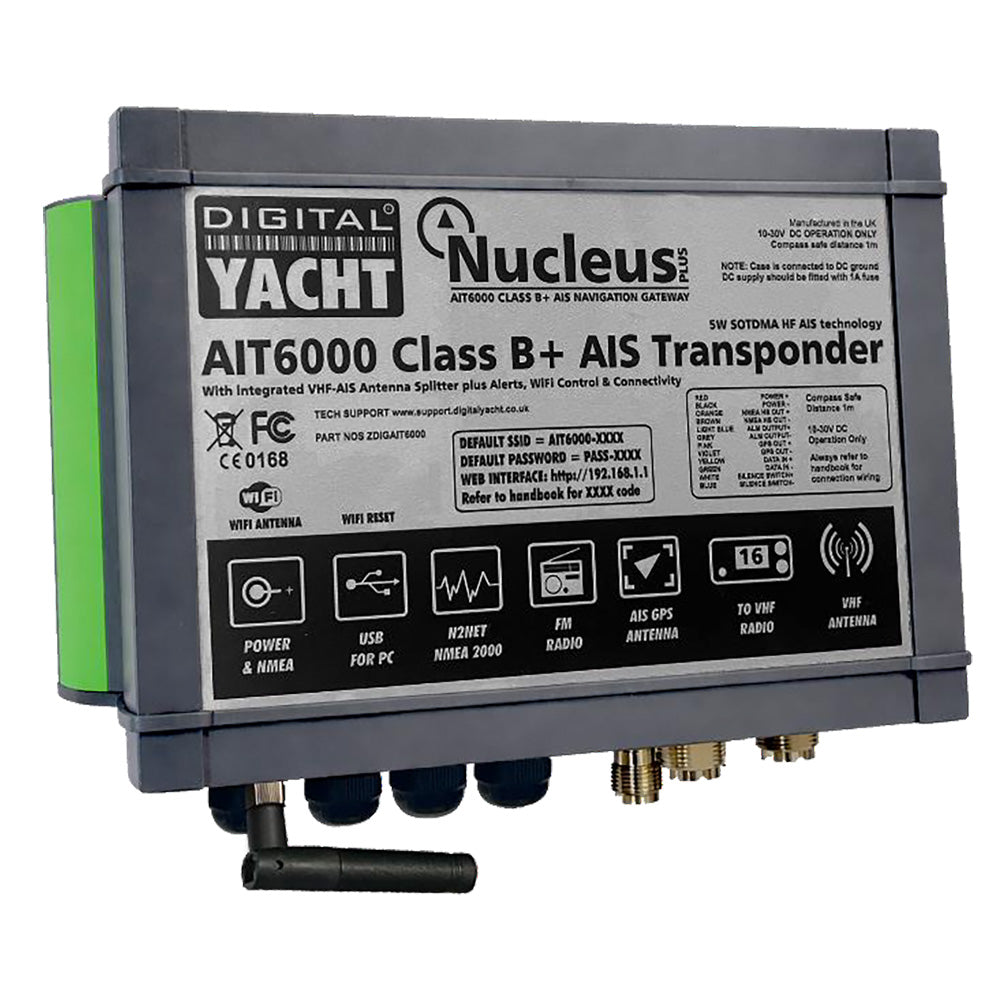

AIT6000 Class B+ AIS Transponder

Nucleus Class B + AIS Transponder with SPAIS satellite AIS compatibility, alerts an integrated NMEA 2000 wifi Gateway.

The AIT6000 is Digital Yachts Class B+ AIS transponder, set to replace the AIT5000. It retains all the features that made the AIT5000 successfulan integrated and patented ZeroLoss VHF antenna splitter, 5W SOTDMA transmissions, and NMEA 0183, NMEA 2000, wireless, and USB interfaceswhile introducing several major innovations:

SPAIS Satellite Tracking

The AIT6000 incorporates Digital Yachts exclusive SPAIS (Space AIS) technology, providing true vessel tracking capability through AIS transmissions optimized for satellite reception.

Integrated NMEA 2000 Gateway

The AIT6000 now includes a built-in NMEA 2000 gateway, allowing its Wi-Fi interface to transmit not only AIS, GPS, and NMEA 0183 data, but also instrument data from the NMEA 2000 network. As a result, no data conversion is requirednavigation data from the NMEA 2000 network is accessible via Wi-Fi directly from the AIT6000.

Web Interface with Integrated Alarms

The AIT6000 also features a intuitive web interface with built-in navigation alarms. Through this interface, users can configure CPA/TCPA alerts and many other settings for safer and more customized navigation.

The Digital Yacht AIT6000 Class B+ AIS Transponder offers advanced vessel tracking capabilities with integrated satellite AIS compatibility through SPAIS technology, ensuring reliable identification even in remote areas. This transponder is designed for compliance with FCC regulations, requiring programming by a qualified technician at the time of purchase; a completed form along with vessel registration or FCC license is necessary for activation. It replaces the popular AIT5000 model, adding significant innovations while retaining essential features such as a patented ZeroLoss VHF antenna splitter, 5W SOTDMA transmissions, and multiple interfaces including NMEA 0183, NMEA 2000, wireless, and USB. The inclusion of SPAIS satellite tracking enhances situational awareness by providing true vessel positioning via satellite signals, making it ideal for offshore and extended-range navigation. The built-in NMEA 2000 gateway enables seamless data sharing across your vessel's network, transmitting AIS, GPS, and instrument data directly over Wi-Fi without conversion. This integration simplifies system setup and improves data accessibility for navigation and monitoring systems. The intuitive web interface allows operators to configure navigation alarms such as CPA and TCPA alerts, providing customizable safety features that support safer navigation practices. Compact and versatile, the AIT6000 is suitable for a range of vessel sizes and ensures reliable performance with its robust design and advanced features. Whether for commercial or recreational use, this transponder enhances vessel safety, situational awareness, and data management, making it a comprehensive solution for modern marine navigation.

Features:

• SPAIS Satellite Tracking: Provides true vessel tracking capability through satellite-optimized AIS transmissions.

• Integrated NMEA 2000 Gateway: Transmits AIS, GPS, and instrument data directly over Wi-Fi from the vessel's NMEA 2000 network.

• Web Interface with Alarms: Allows configuration of CPA/TCPA alerts and other safety settings for enhanced navigation safety.

• ZeroLoss VHF Antenna Splitter: Ensures optimal signal transmission with minimal loss, improving AIS and VHF communication quality.

• SOTDMA 5W Transmissions: Supports reliable and extended-range AIS broadcasts for safety and vessel identification.
