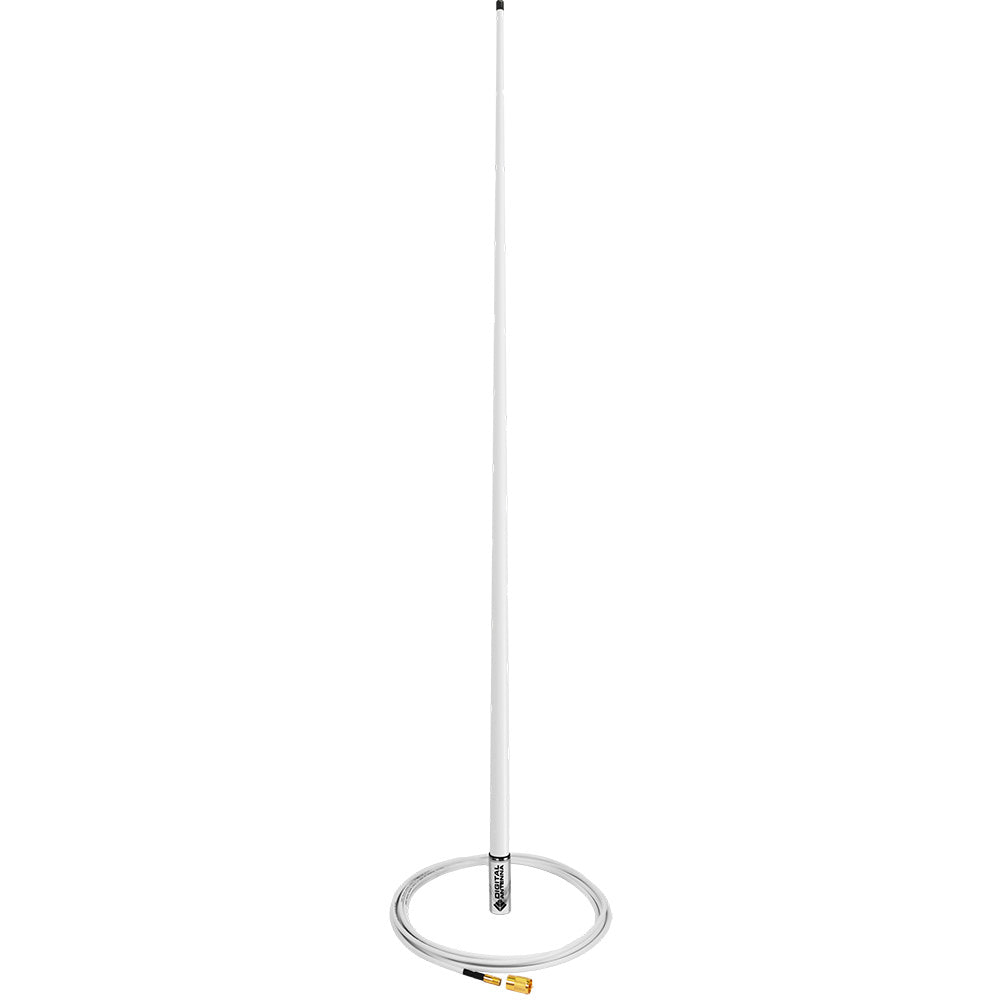

Digital Antenna 758-MW-S 8' 8' 6dBi Gain Advanced Multi-Band Marine Antenna

758-MW-S 8 8 6dBi Gain Advanced Multi-Band Marine Antenna

Digital Antennas Model 758-MW-S is the first marine antenna designed for seamless multi-band communication, ensuring powerful signals across various frequency bands. Whether youre offshore, navigating busy harbors, or relying on emergency communication, this high-performance antenna delivers unmatched reliability.

Designed to withstand the rigors of offshore communication, the 758-MW-S sets a new standard in marine antenna technology, delivering unparalleled performance, longevity, and signal stability across critical frequency bands.

Features:

• Seamless multi-band operation on VHF, UHF, and 800/900 MHz frequencies


• 20 premium low-loss DA195 cable for maximum signal strength


• Factory-installed mini-UHF connector with PL259 adapter for quick and secure connection to the radio


• Marine-grade durability, featuring a 316 stainless steel ferrule for corrosion resistance


• UV-stable polyurethane-coated rod protects against harsh marine conditions


• 5-year manufacturer warranty, ensuring long-term reliability

Specifications:

• Radiation Pattern Omni-Directional: Gain 6dBi


• Frequencies: 134-176 MHz, 403-470 MHz, 450-512 MHz,851-870 MHz


• Cable: 20 Digital Antenna, exclusive low-loss DA195


• Impedance: 50 ohms


• Max Input Power: 50 watts


• Exterior Finish: White polyurethane high gloss UV stable


• Dimensions: 8 length x 1 OD taper


• Weight: 2.3 lbs.


• RF Connector: Mini-UHF female with included PL259 adapter


• Installation: 1x14tpi female threaded base


• Elements: Copper - Hand soldered


• Polarization: Vertical


• Wind Rating: >160KPH


• Operating Temp: 30 F to +175 F


• Attaches to 1 x 14 threaded base (not included)


• Factory-installed mini-UHF Connector PL259 adapter


• Use with all DMR radios using VHF, UHF Band 1, UHF Band 2, 800/900 MHZ


• Warranty: 5 Years

Applications:

• Commercial


• Recreational


• Government Vessels
