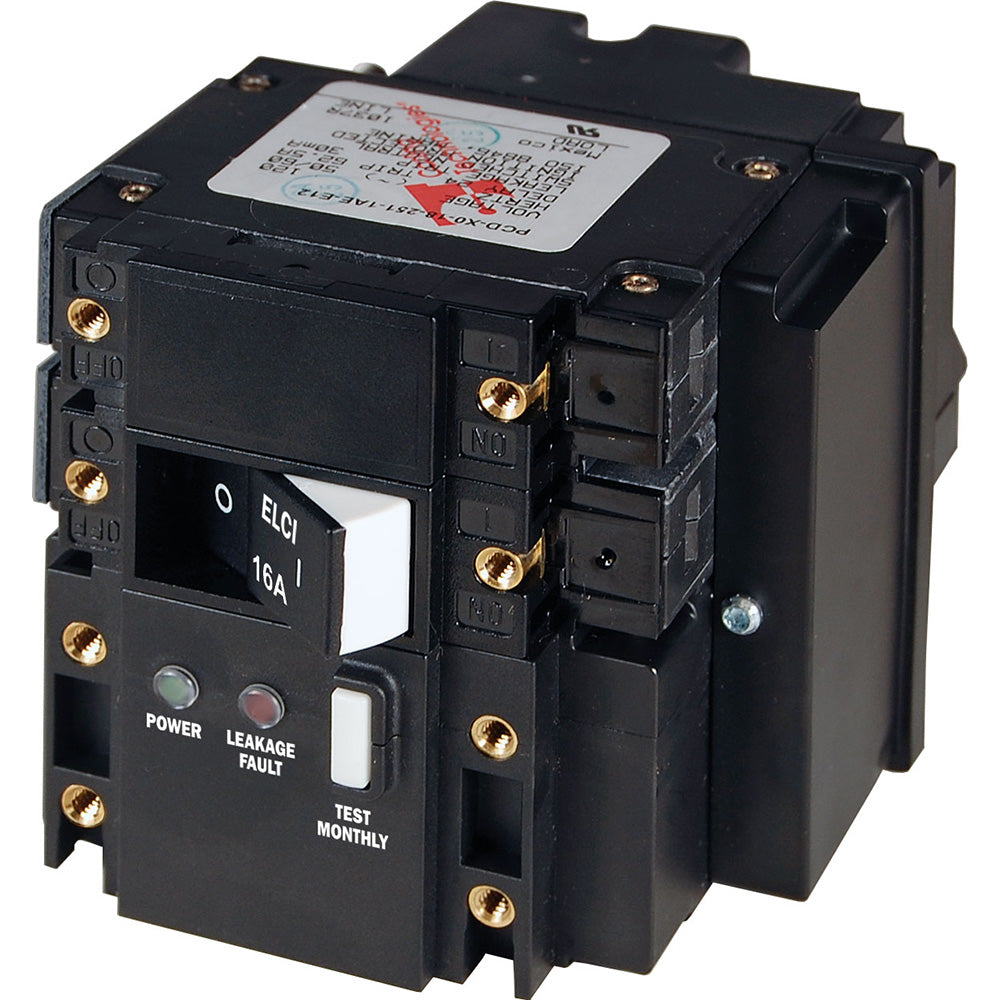

Blue Sea C-Series ELCI Main Circuit Breaker - Double Pole 230V AC 16A - 3091
Free Ground Shipping ( 2-6 Day Delivery Time )
Truck Freight: No
⏳ Hurry! Only 1 left in stock
Contact: 866-675-8464
30-day returns available
Manufactures Part Number: 3091
Truck Freight: No
C-Series ELCI Main Circuit Breaker - Double Pole 230V AC 16A
Features:
- Trips on short circuit, overload, or leakage to ground
- Front panel mountinstalled in a power distribution panel
Specifications:
- Amperage: 16A
- Actuator Style: Flat rocker
- Poles: 2
- Ignition Protected: Yes
- Maximum Voltage: 240V AC per pole
- Circuit Breaker Type: Magnetic Hydraulic - trip free
- Interrupt Capacity: 5000A
- Minimum Operating Temperature: -35 degrees C
- Maximum Operating Temperature: 66 degrees C
- Leakage Trip Amps: 30mA
- Mounting Screw: #6-32 Stainless Steel
- Mounting Screw Torque: 6in-lb (0.68 Nm)
- Switching Cycles: 10000
- Weight: 0.90 lbs (0.41kg)
