Blue Sea 20a Terminal Block 6 Circuit

In stock
SKU: BSS2406 632085024062
Manufacture Part Number:
Free Ground Shpping
Truck Freight:
$15.99

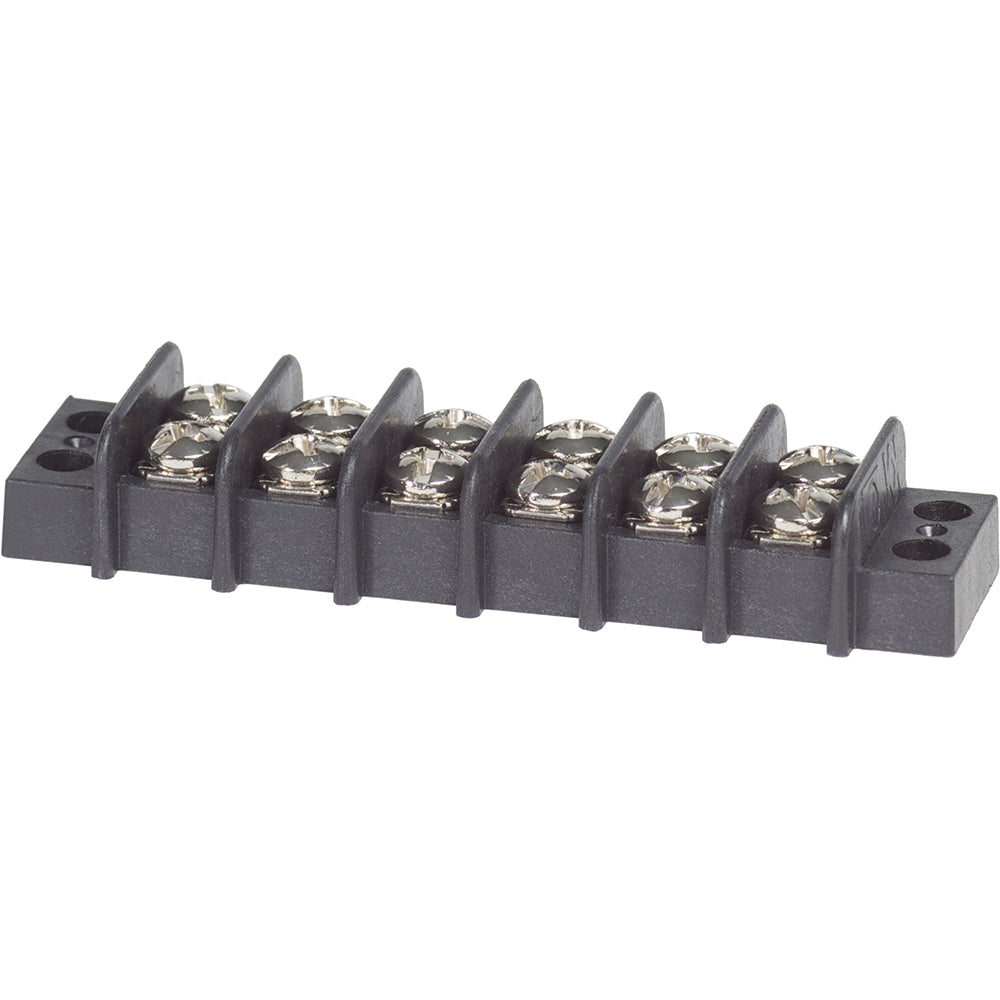

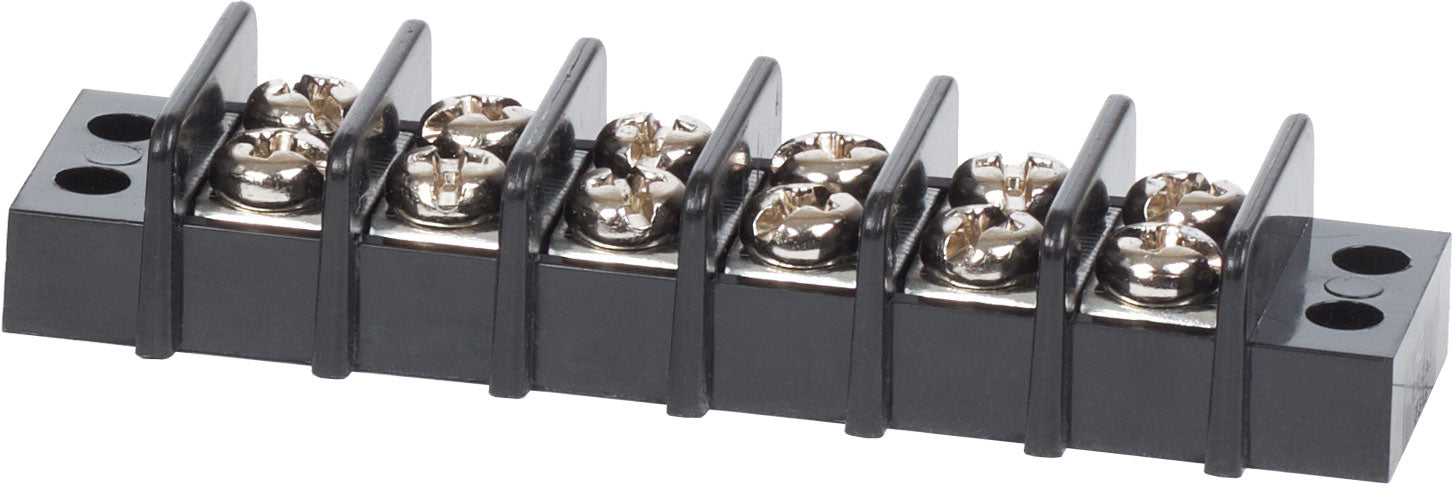

Blue Sea Systems Terminal Block 20A - 6 Circuit

Model: 2406-BSS
  • Closed back design completely insulates power from the mounting surface
  • Each screw pair is one isolated circuit
  • Jumpers allow creation of common circuits
Specifications
Circuits 6
Length 2.91in (73.91 mm)
Maximum Voltage 300V AC/DC
Continuous Rating 20A
Base Material UL 94 V0, PC
Bus Material Nickel-Plated Brass
Mounting Screw #6 [M3.5]
Screw Material Stainless Steel
Screw Terminal Torque 7 in-lb (0.79 Nm)
Terminal Screws M3.5
Wire Terminal Size #6 [M3]
