Blue Sea 20a Terminal Block 4 Circuit

In stock - 60 items available
SKU: BSS2404 632085024048
Manufacture Part Number:
Regular price $3.99
Regular price -33% $5.92 Sale price $3.99

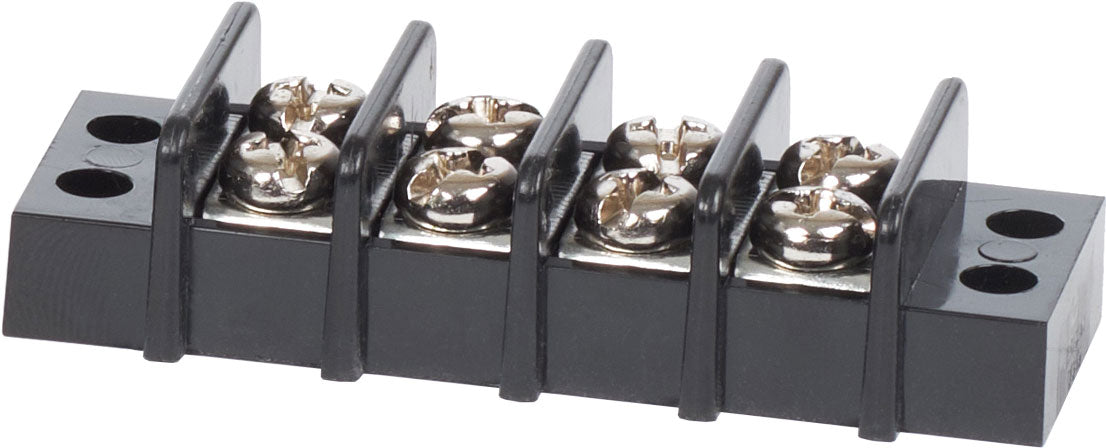

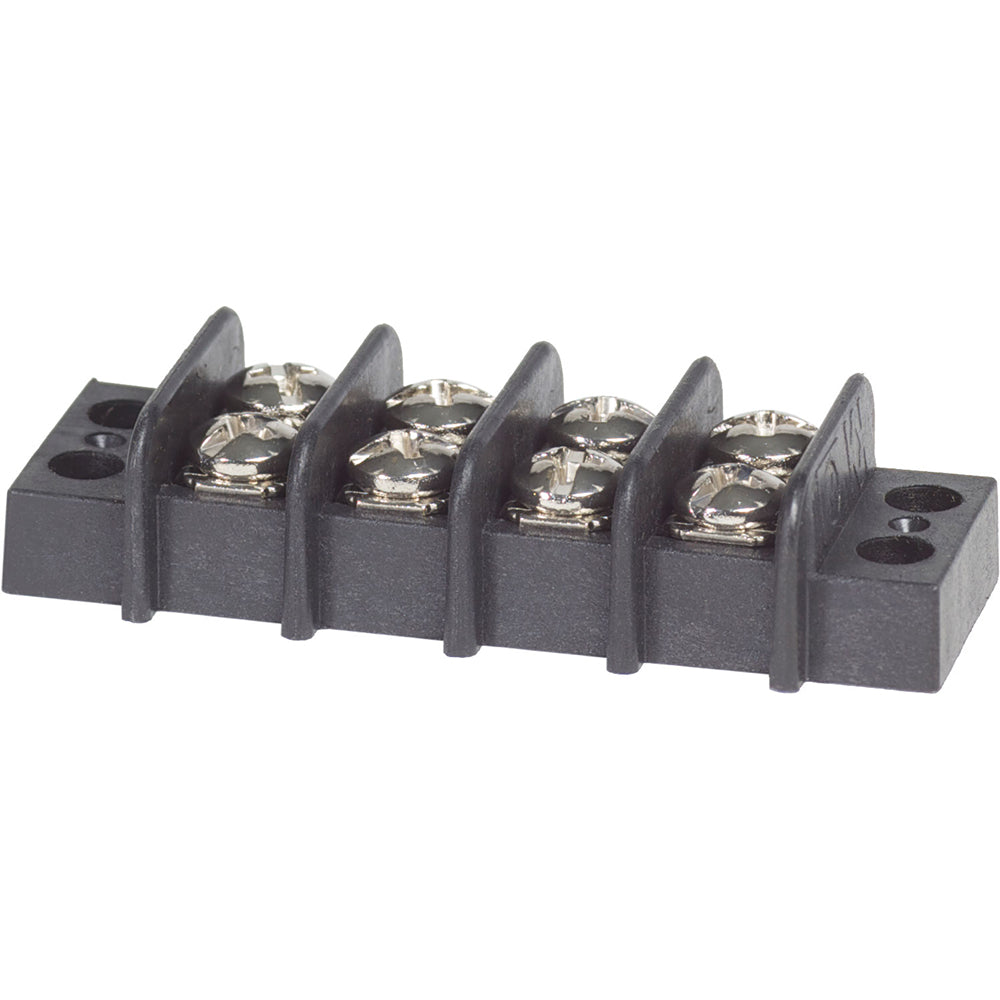

Blue Sea Systems Terminal Block 20A - 4 Circuit

Model: 2404-BSS
  • Closed back design completely insulates power from the mounting surface
  • Each screw pair is one isolated circuit
  • Jumpers allow creation of common circuits
Specifications
Circuits 4
Length 2.17in (55.12 mm)
Maximum Voltage 300V AC/DC
Continuous Rating 20A
Base Material UL 94 V0, PC
Bus Material Nickel-Plated Brass
Mounting Screw #6 [M3.5]
Screw Material Stainless Steel
Screw Terminal Torque 7 in-lb (0.79 Nm)
Terminal Screws M3.5
Wire Terminal Size #6 [M3]
