Blue Sea 20a Terminal Block 10 Circuit

In stock - 26 items available
SKU: BSS2410 632085024109
Manufacture Part Number:
Regular price $8.99

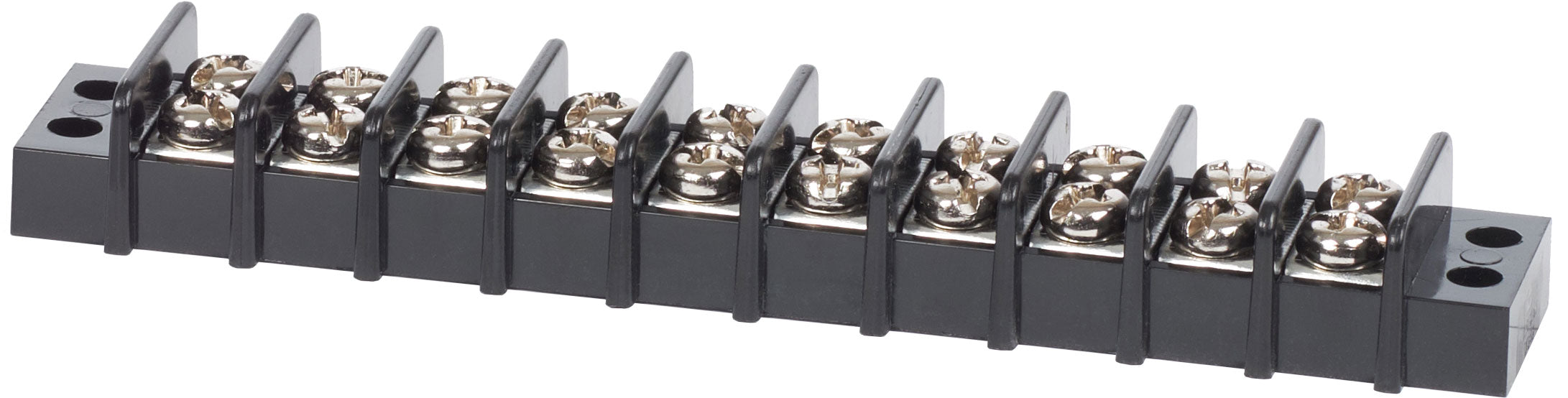

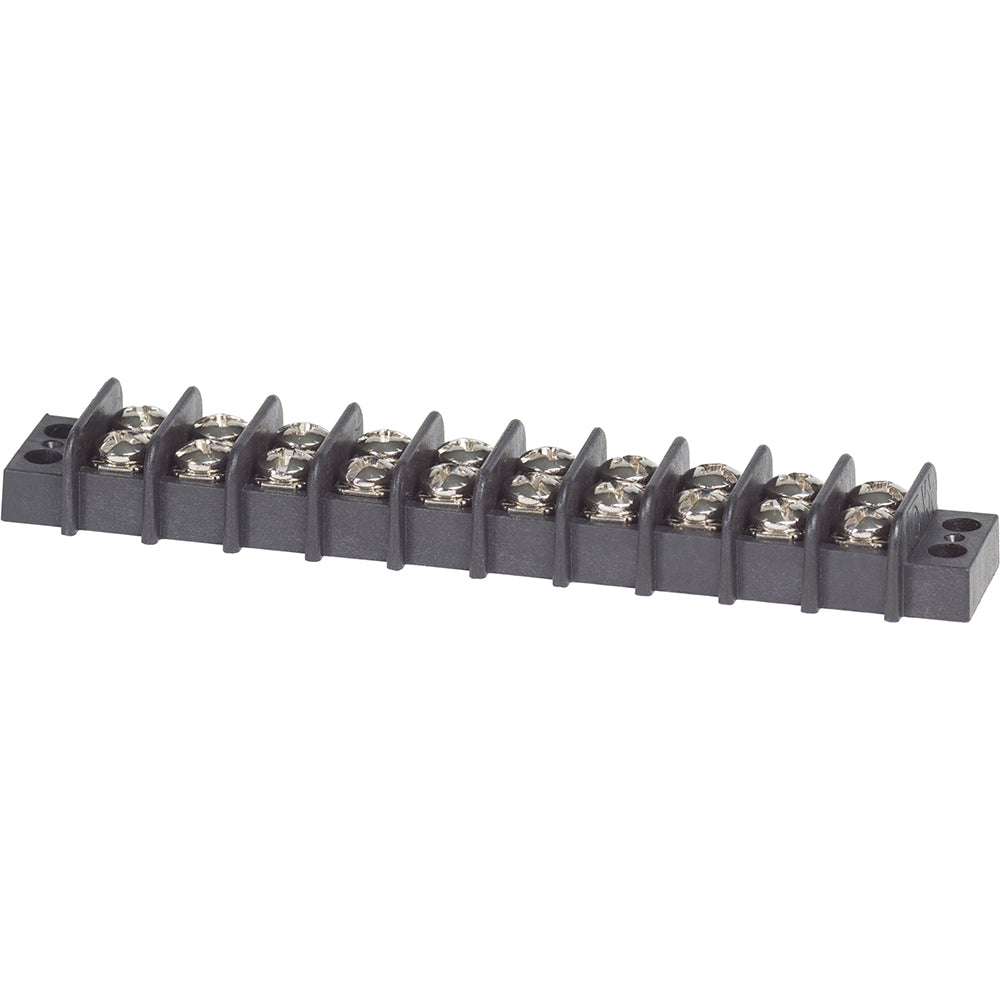

Blue Sea Systems Terminal Block 20A - 10 Circuit

Model: 2410-BSS
  • Closed back design completely insulates power from the mounting surface
  • Each screw pair is one isolated circuit
  • Jumpers allow creation of common circuits
Specifications
Circuits 10
Length 4.41in (112.01 mm)
Maximum Voltage 300V AC/DC
Continuous Rating 20A
Base Material UL 94 V0, PC
Bus Material Nickel-Plated Brass
Mounting Screw #6 [M3.5]
Screw Material Stainless Steel
Screw Terminal Torque 7 in-lb (0.79 Nm)
Terminal Screws M3.5
Wire Terminal Size #6 [M3]
