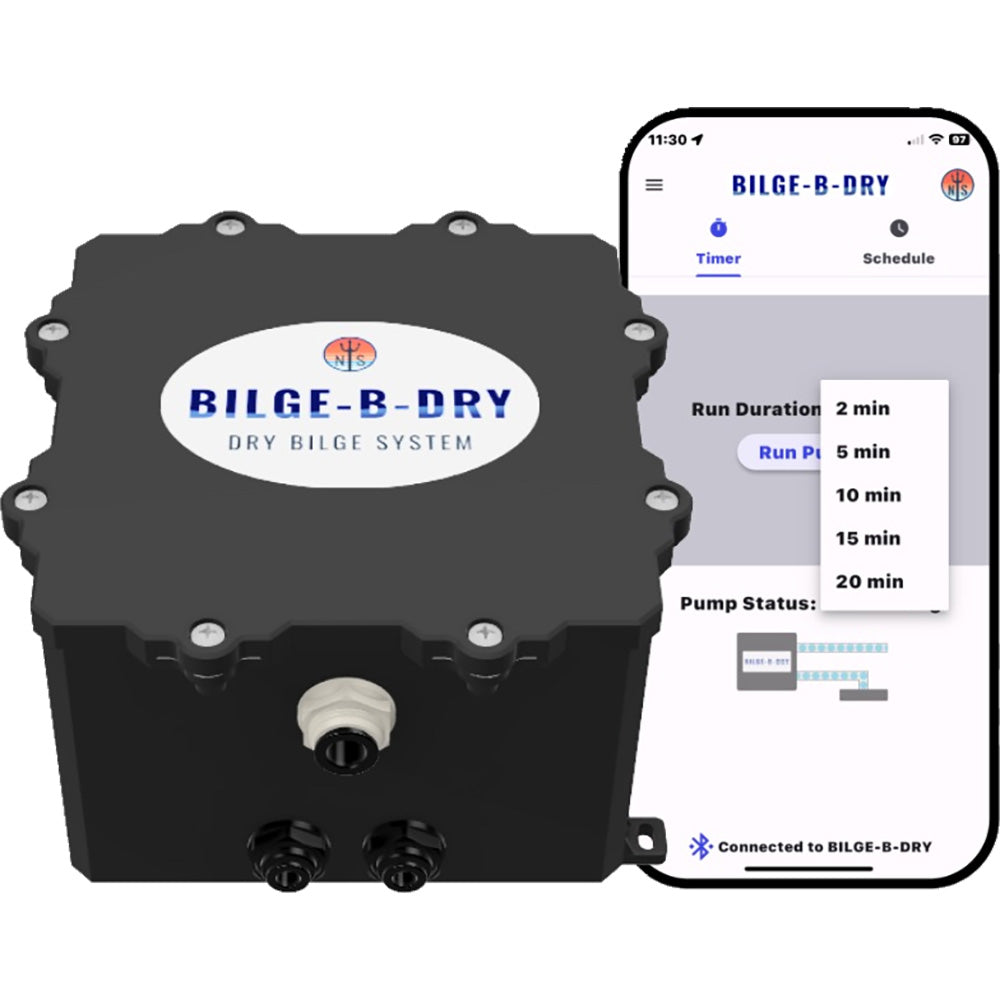

BILGE-B-DRY Dual Pump 12VDC - Part BBD-2025-122

Dual Pump - 12VDC

BILGE-B-DRY is the worlds only Smart Device enabled Dry Bilge System on the market! Enjoy simple installation and customized scheduling control at your fingertips with our Mobile App for Apple or Android devices. Due to size and placement, traditional bilge pumps cannot remove the last few inches of excess water that accumulates in your bilge. With BILGE-B-DRY, you will finally be able to eliminate cabin odors, reduce mold or corrosion, and protect your electrical wiring by removing every last drop of water from your bilge. Your cabin will be odor-free and your bilge will be the driest and cleanest at the marina!

Why choose BILGE-B-DRY Take advantage of:

• The worlds ONLY Smart Device enabled Dry Bilge System on the market with customized operation.


• An efficient, reliable method to remove excess bilge water on all boats, including stepped-hull boats where water sits forward of the step. Use BILGE-B-DRY after washdown, heavy rain or sea spray accumulation, rough seas, untreated leaks, etc.


• A compact pump design for easy installation in tight or awkward spaces in any orientation (horizontal or vertical)


• An environmentally friendly low-profile bilge water pickup design with a proprietary filter system


• Configured to automatically cycle (5) five times per day for (2) two minutes if you decline Smart Device connectivity.

BILGE-B-DRY connects to your Smart Device (if desired) through the free Mobile App on the APPLE GOOGLE PLAY stores. Customizable operation is at your fingertips with two options:

• Run the TIMER option up to 20 minutes after boating in heavy seas or upon washdown.


• Choose the SCHEDULE option for five customizable run times during the day, up to 20 minutes. This is a great option if you will be away from your boat for a few weeks.

BILGE-B-DRY is available in four 12vdc pump configurations:

• Single pump (1 motor/diaphragm pump - 12 feet of tubing provided)


• Dual pump (2 motors/diaphragm pumps - 12 feet of tubing for pickup, 6 feet for discharge provided)


• Triple pump (3 motors/diaphragm pumps - 18 feet of tubing for pickup, 6 feet for discharge provided)


• Quad pump (4 motors/diaphragm pumps - 24 feet of tubing for pickup, 6 feet for discharge provided)

Specifications:

• Meets ISO 8846 standards, Section 5, Protection against ignition of surrounding flammable gases.

Power Required:

• 12vdc (24vdc available, please add as a note to your order)

Pump:

• Working voltage: 8-13vdc


• Maximum flow: 0.3- GPM


• Current: less than 500mA


• Pump head: 10 feet


• Pump suction: 5 (vertical)feet


• Diaphram design, able to run dry for extended periods without damage


• Life expectancy >1000 hours

Control Board:

• Wireless Connectivity


• Static current: 20mA


• Working current: 50mA


• Working voltage: 12vdc[10-14V]


• Life expectancy: 100,000 cycles


• Working temperature: - 40 85 C


• Wi-Fi RF Grant FCC Rule Part 15C

Dimensions (in):

• Enclosure: 3.0 H x 5.0 W x 5.0 L


• Rectangular Pickup: 0.98 H x 2.4 W x 3.9 L

Dimensions (mm):

• Enclosure: 76 H x 128 W x 128 L


• Rectangular Pickup: 25 H x 60 W x 100 L

Tubing Diameter: (PVC or PU Outer Diameter):

• Single Pump: OD input and output tubing: 1/4


• Multi-Pumps: OD input tubing - 1/4 OD output tubing- 3/8

Included with your BILGE-B-DRY purchase are low-profile bilge water pickups. Our uniquely designed low-profile bilge water pickup (bracket sold seperately) with an integrated filter helps reduce harmful overboard discharge of heavy metals, solids, and petroleum. Place the pickups wherever you wish to remove water, such as the lowest part of your bilge, A/C evaporator or hard-to-reach compartments. Twenty small holes along the bottom of the pickup provide a debris barrier. The pickups integrated filter contains a proprietary blend of materials to prevent damage to the BILGE-B-DRY pump and to reduce oil discharge, which unlike other dry bilge systems, eliminates the need for a secondary filter.

For optimum performance of your BILGE-B-DRY unit, replace the low-profile bilge water pickups when flow rate has decreased. BILGE-B-DRY orders DO NOT INCLUDE the stainless holddown bracket or inline fuse!

Experience the revolutionary BILGE-B-DRY Dual Pump 12VDC, the world's only Smart Device enabled dry bilge system. Designed for optimal performance, this cutting-edge pump ensures complete removal of excess bilge water, even in the most challenging conditions. With its seamless installation and customizable scheduling options via the mobile app, you have complete control at your fingertips. Say goodbye to unpleasant odors, mold, and electrical corrosion by keeping your bilge dry and clean.

What sets the BILGE-B-DRY apart is its dual pump configuration, making it ideal for all types of boats, including those with stepped hulls where water tends to accumulate. Its compact design allows for easy installation in tight spaces, while the proprietary low-profile pickup system ensures efficient operation. Whether you're dealing with heavy rain, rough seas, or simply need to remove water after washdown, the BILGE-B-DRY is your perfect solution.

Features:
* Smart Device enabled for customized operation: Smart Device enabled for customized operation
* Efficiently removes excess bilge water, perfect for all boat types: Efficiently removes excess bilge water, perfect for all boat types
* Compact design for installation in tight spaces: Compact design for installation in tight spaces
* Environmentally friendly low-profile bilge water pickup: Environmentally friendly low-profile bilge water pickup
* Automatically cycles up to five times a day without connectivity: Automatically cycles up to five times a day without connectivity
