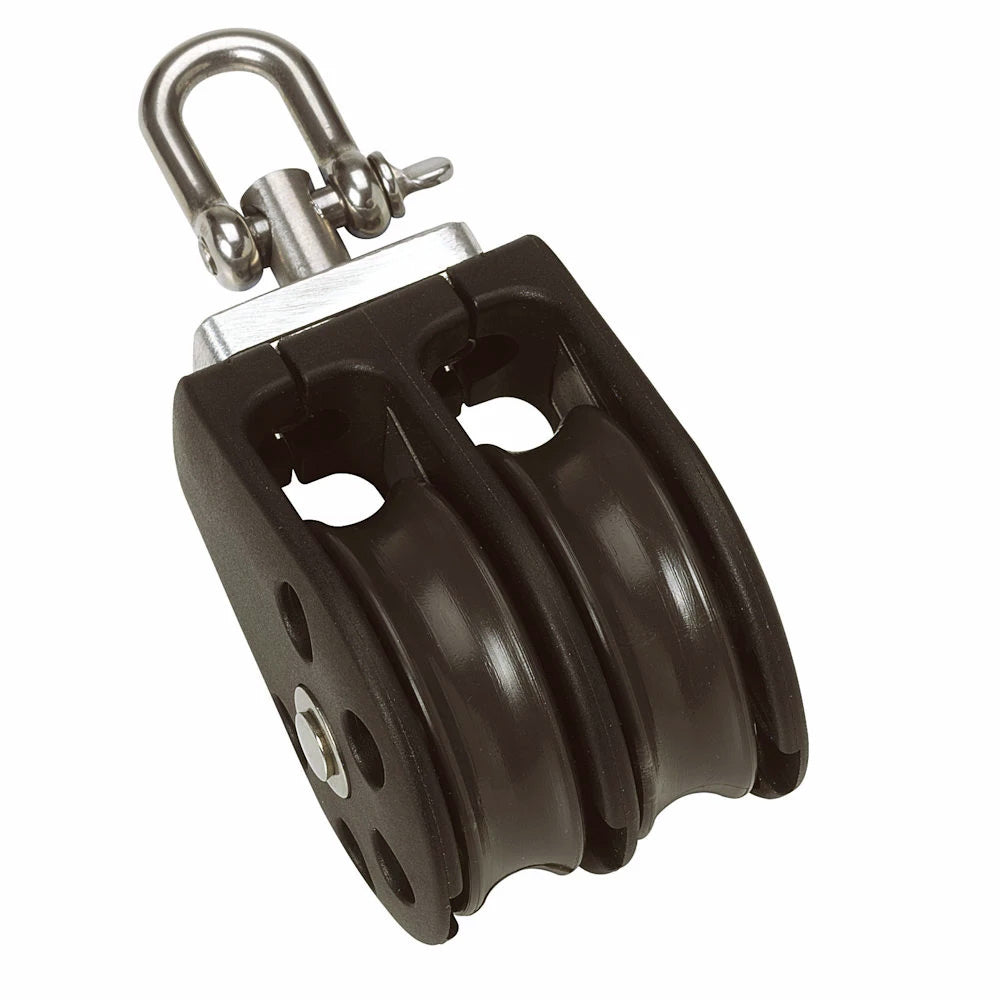

Barton Size 2 35mm Plain Bearing Pulley Block Double w/Swivel - N02230
Free Ground Shipping ( 2-6 Day Delivery Time )
Truck Freight: No
⏳ Hurry! Only 4 left in stock
Contact: 866-675-8464
30-day returns available
Manufactures Part Number: N02230
Truck Freight: No
Size 2 35mm Plain Bearing Pulley Block Double with Swivel
The Barton Size 2 Plain Bearing Block has a 35mm (1 3/8) sheave. This block range size provides high performance and load values in a variety of assemblies configurations. The range has an internal stainless steel frame and precision components. Also available in ball bearing sheave options. The lightweight design makes this range perfect for a multitude of uses on every yacht.
Suitable for up to 8mm (5/16) rope.
Specifications:
- Weight: 87g
- Dimensions: 83 39 38 mm
- Size: 2 (35MM)
- Block Type: Fixed Eye
- No. of Sheaves: Double
- Bearing Type: Plain
- Sheave Size: 35mm x 11mm (1 3/8 x 15/32)
- Max rope diameter: 8mm (5/16)
- SWL: 370kg (815lbs)
- Break load: 740kg (1630lbs)
- Max rolling load (ball bearing blocks): 260kg (573lbs)
