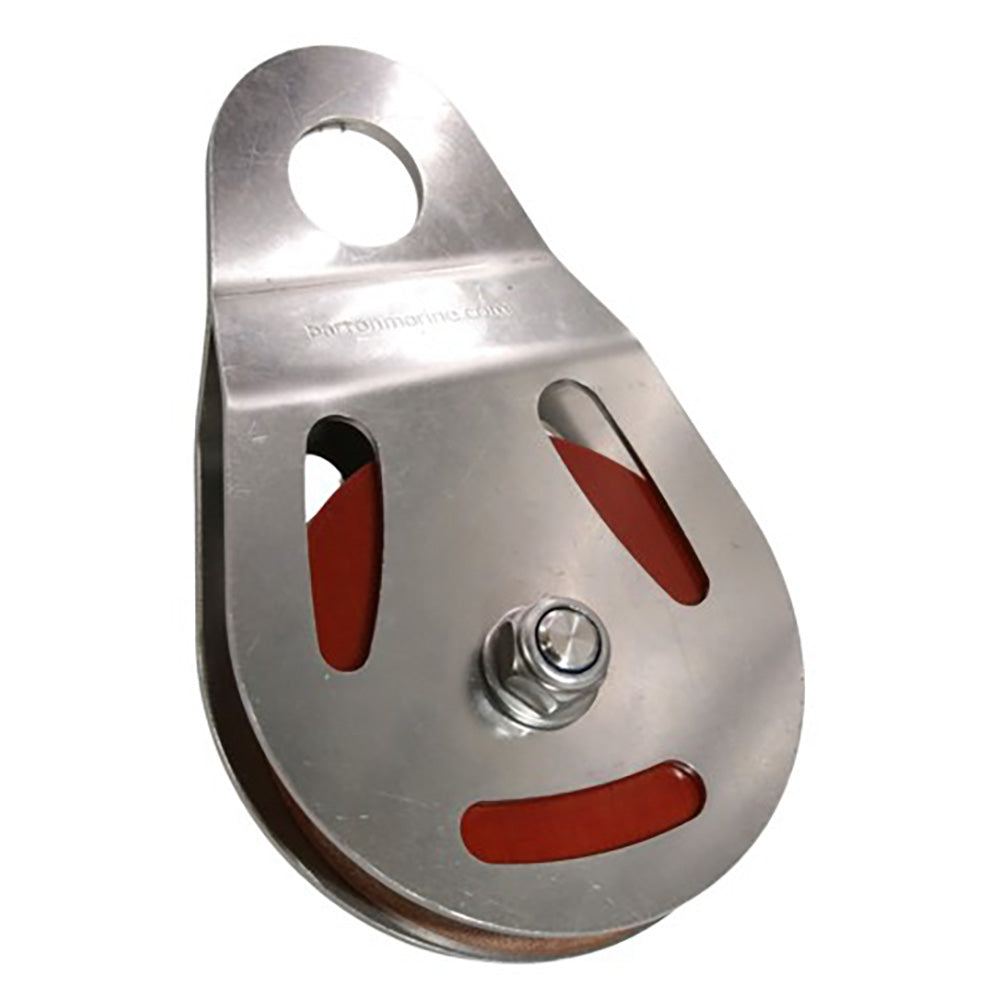

Barton Marine T92100 Tufnol Snatch Block for Wire & Fibreoptic Cables
Free Ground Shipping ( 2-6 Day Delivery Time )
Truck Freight: No
⏳ Hurry! Only 4 left in stock
Contact: 866-675-8464
30-day returns available
Manufactures Part Number: T92100
Truck Freight: No
Tufnol Snatch Block for Wire Fibreoptic Cables
The Barton wire snatch block has been developed specifically as a low maintenance static free block. The Tufnol sheave means that static cannot build up in the block and cause electrical discharge. Tufnol is a bearing-grade material so it gives a low-friction surface for the wire to run on and minimizes the number of moving components, giving it reliability and durability.
The cheeks are made from marine grade 316 stainless steel as is the pin and retaining nuts. This block is ideal for commercial applications in the toughest of environments.
Specifications:
- Safe Working Load: 350kg (770lbs)
- Break Load: 1500kg (3300lbs)
- Max Rope/Wire size: 10mm (3/8)
- Weight: 78grms (2.8oz)
- Length: 190nn (7 )
- Width: 115mm (4 )
- Thickness (Maximum): 53mm (2 1/16)
Fibreoptic Wire Bending
Fibreoptic cables and wire ropes require a minimum bend radius to stop failures. This block is suitable for both fibreoptics and wires up to 10mm in diameter. The large sheave means that the bend radius of the wire is not compromised and provides an additional engineered safety factor to prologue the life of wire if continual movement around the same section of wire is required.
The Barton Marine T92100 Tufnol Snatch Block is expertly designed for handling wire and fibreoptic cables, ensuring low maintenance and static-free operation. Featuring a Tufnol sheave, this block prevents the buildup of static electricity, eliminating the risk of electrical discharge. The Tufnol material also provides a low-friction surface, enhancing the reliability and durability of the block while minimizing the number of moving components.
Constructed with marine-grade 316 stainless steel for the cheeks, pin, and retaining nuts, this snatch block is ideal for even the toughest commercial applications. It supports a safe working load of 350 kg (770 lbs) and a break load of 1500 kg (3300 lbs), making it a robust choice for demanding environments. The large sheave design ensures that the minimum bend radius for fibreoptic cables and wires up to 10 mm in diameter is maintained, prolonging the life of your equipment and enhancing safety during use.
Features:
* Material: Tufnol sheave for low friction and static-free operation
* Construction: Marine-grade 316 stainless steel for durability
* Safe Working Load: Supports up to 350 kg (770 lbs) for heavy-duty applications
* Break Load: Capable of handling up to 1500 kg (3300 lbs) for added safety
* Compatibility: Suitable for wire and fibreoptic cables up to 10 mm in diameter
* Design: Large sheave maintains minimum bend radius for prolonged wire life
