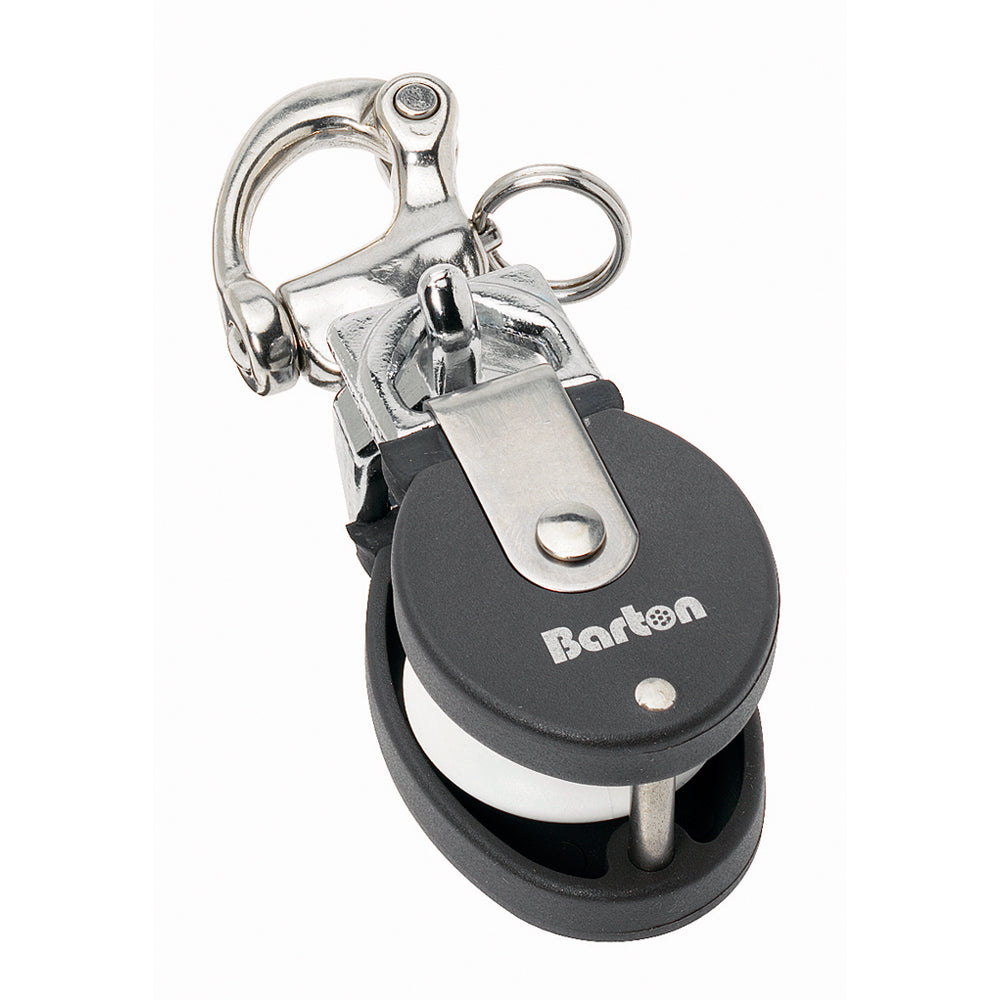

Barton Marine Size 2 Snatch Block with Stainless Snap Shackle * 35mm Sheave for Sailing and Boating - 90301

Size 2 Snatch Block with Stainless Snap Shackle - 35mm Sheave

Unique to Barton, these are probably the smallest block of this type available.

Important Note - Snatch Blocks

When using small and medium snatch blocks on a toe rail, a bungee line should be attached to the becket to prevent the block from 'tumbling' and causing damage by snagging.

Features:

• Extremely compact and strong


• A multitude of uses on cruising or racing yachts where a large unit is not required

Specifications:

• Sheave: 35mm (1.38")


• Sheave Width:17mm (0.67")


• Rope: 12mm (0.47")


• Break Load: 800kg (1,763.7lbs)


• SWL: 400kg (881.8lbs)


• Length: 110mm (4.33")


• Weight: 170g (0.37lbs)

The Barton Marine Size 2 Snatch Block with Stainless Snap Shackle is a compact yet robust pulley designed for versatile use on cruising and racing yachts. Featuring a 35mm (1.38") sheave, this snatch block is ideal for applications where space is limited but strength is essential. Its lightweight construction, weighing only 6 ounces, makes it easy to handle while providing reliable performance in demanding marine environments.

Constructed with high-quality materials, this snatch block offers a break load capacity of 1,763.7 pounds and a working load limit of 881.8 pounds. The sheave width of 0.67 inches accommodates ropes up to 0.47 inches in diameter, ensuring compatibility with various rigging configurations. Its compact dimensions, including a length of approximately 4.33 inches, make it perfect for use on toe rails, stanchions, or other tight spaces onboard.

Designed for durability and ease of use, the Barton Marine Size 2 Snatch Block features a stainless steel snap shackle for quick attachment and release. When employed on small to medium applications, it is recommended to attach a bungee line to the becket to prevent the block from tumbling and causing potential damage. This feature helps maintain smooth operation during sailing maneuvers, especially in racing scenarios where efficiency is critical.

Whether used for sheet control, reefing, or other halyard applications, this snatch block's compact size and strength make it an excellent choice for sailors seeking reliable gear without excess bulk. Its corrosion-resistant components ensure longevity even in harsh marine conditions, providing peace of mind during extended voyages or competitive racing.

Features:
* Compact and lightweight design suitable for limited spaces onboard
* High strength with a break load of 1,763.7 pounds and working load limit of 881.8 pounds
* Stainless steel snap shackle for secure and quick attachment
* Sheave diameter of 35mm (1.38 inches) with a width of 0.67 inches
* Accommodates ropes up to 0.47 inches in diameter for versatile rigging options
* Ideal for cruising and racing yachts requiring a small yet durable snatch block
