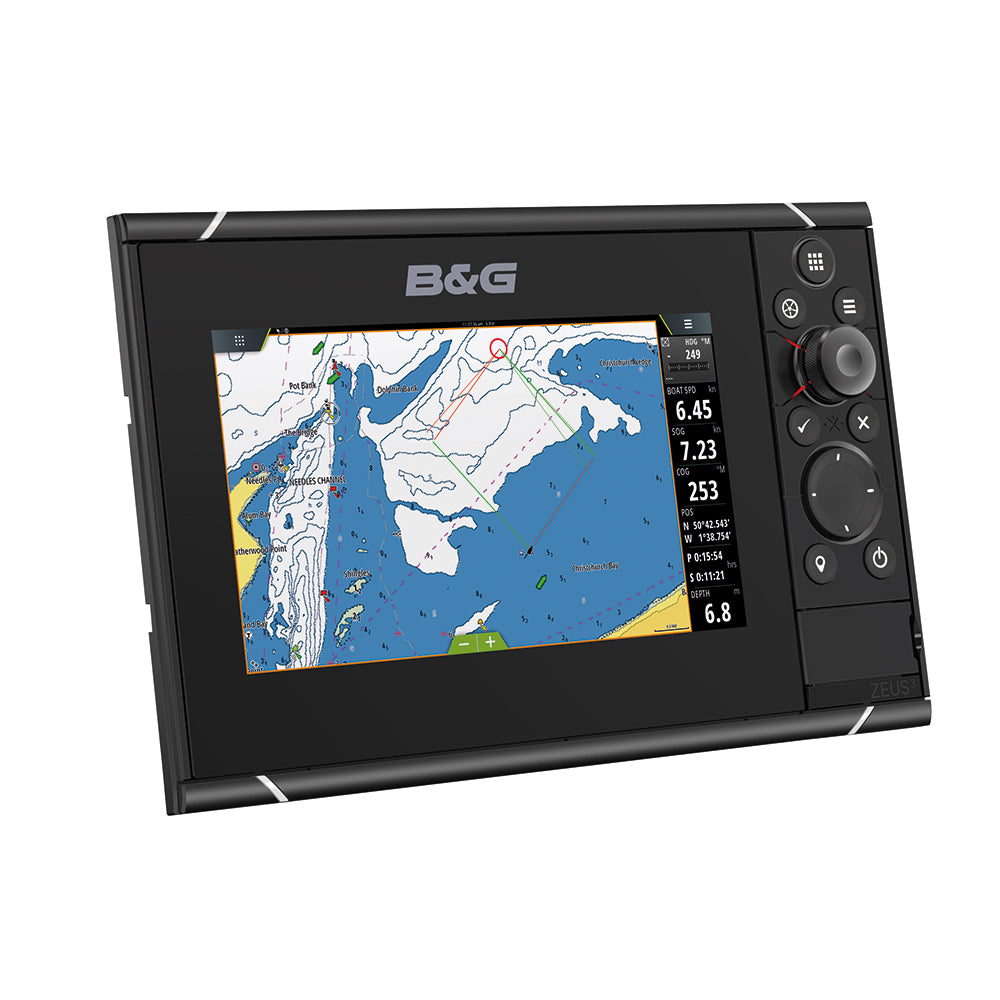

B&G Zeus3 7" MFD Display with Insight Charts - Part Number 000-13241-001

Zeus3 7" Multifunction Display with Insight Charts

Updated Features:

• Advanced WindPlot


• C-MAP® Easy Routing and Navionics® Autorouting support


• Easy-to-interpret C-MAP Navigation Palette


• Advanced WindPlot: provides users with a clearer view of wind trends, easier comparison of True Wind Speed (TWS) to True Wind Direction (TWD) and better display in small panels for use alongside charts, RacePanel or SailSteer features.


• C-MAP® Easy Routing and Navionics® Dock-to-Dock Autorouting: You will navigate faster and easier with automatic route planning. Menu activated, the feature automatically plots the shortest and safest course based on a boat’s draft, beam and height, creating a route around a landmass and other fixed navigational hazards. Requires C-MAP MAX-N+ charts, Navionics+ or Navionics Platinum charts.


• C-MAP Navigation Palette: Enhances the readability of C-MAP charts, especially near shore, making it easy to tell where the boat is in relation to a channel, navaid, ledges and drop-offs, or a point of land.

The Zeus3 7 is a complete chartplotter navigation system for blue water cruisers and regatta racers. This high-performance multifunction display features a 7-inch widescreen display, incorporating SolarMAX™ HD technology for brilliant daytime visibility and ultra-wide viewing angles. To ensure reliable control in all conditions and situations, Zeus3 incorporates an all-weather touchscreen that works even while wet. It combines this with an integrated rotary dial and keypad capable of controlling all display functions. Both sets of controls can be used simultaneously, or Zeus3 can be switched to non-touch mode for dependable operation under the most extreme conditions.

A high-performance processor enables responsive operation and quick chart redraw while moving, panning or zooming. Zeus3 is powered by B&G software designed specifically for sailors, and packed with a wide array of sail-specific functionality. See all key sailing data on a single screen with SailSteer, view laylines and tacking angles overlaid on charts, and plan more accurately with Sailing Time arrival estimates that factor in the realities of travel by wind. RacePanel delivers a range race-proven functionality including integration with B&G H5000 tactical systems for additional analytical and predictive capabilities.

Built-in Wi-Fi lets you access charts, weather information, software updates and online support directly from your display via any Wi-Fi internet hotspot. GoFree® Wi-Fi also lets you mirror your Zeus3 screen on a compatible smartphone, and control your Zeus3 display from a compatible tablet, for an extra display that you can use anywhere on board. See what lies ahead beneath the water with built-in support for ForwardScan® sonar, and above the water with plug-and-play support for Broadband Radar® and AIS solutions. Enhance your situational awareness in crowded harbours and during races and regattas with tools like MARPA target tracking and AIS overlay. Complete autopilot integration means short-handed and single-handed sailors can take immediate control of their B&G autopilot system from any B&G Zeus3 display on board.

Zeus3 also connects seamlessly to a wide range of sensors, instruments, displays, expansion modules, and accessories; allowing you to create a fully-integrated electronics solution to provide greater safety, performance, and enjoyment on the water.

Specifications:

• Dimensions: 9.4"W x 5.9"H x 3.5"D


• Display: 7" IPS optically bonded TFT


• Resolution: 600 x 1024


• Mounting Type: Bracket(supplied) or Panel Mount


• External Storage: 2 MicorSD, max. 32GB each


• Internal Storage: 16GB


• Supply Voltage: 10- 31.2 VDC


• Wifi: Yes


• Bluetooth: Yes


• Video: 2 x composite (RCA connectors) video inputs


• Ethernet: Yes


• NMEA 2000: Yes


• NMEA 0183: Yes


• Waypoints, Routes, Tracks: 6000 Waypoints, 500 Routes with 100 Max Route Points, 50 Tracks with up to 12,000 track points


• Preloaded with Insight Chart


• Cartography Supported: Insight, Navionics (Gold, Nav+, Platinum+), C-MAP (MAX N, MAN N+) NV Digital(Raster US Charts)


• Internal GPS Antenna


• Autopilot Support: Full Autopilot Control and commissioning

The B&G Zeus3 7" Multifunction Display is designed for blue water cruisers and regatta racers seeking a reliable and high-performance navigation system. With advanced features like Insight Charts, SolarMAX* HD technology, and an all-weather touchscreen, this display ensures you have the best visibility and control in any condition.

Experience quicker route planning with C-MAP? Easy Routing and Navionics? Autorouting, allowing for the safest navigation based on your boat's specifications. The enhanced C-MAP Navigation Palette improves chart readability, making it easier to navigate near shore.

Whether you're racing or cruising, the Zeus3 integrates seamlessly with B&G tactical systems for superior analytical capabilities. Built-in Wi-Fi provides access to charts, weather updates, and online support, while also allowing screen mirroring on smartphones and tablets.

Equipped with ForwardScan? sonar and support for Broadband Radar? and AIS solutions, the Zeus3 enhances situational awareness on the water. With full autopilot integration and compatibility with a range of sensors, this multifunction display is the ultimate tool for any sailor.

Features:
* Advanced WindPlot: Provides a clearer view of wind trends and better display for use alongside charts.
* C-MAP? Easy Routing: Automatically plots the safest course based on your boat's draft, beam, and height.
* C-MAP Navigation Palette: Enhances readability of charts, especially near shore, for easier navigation.
* All-weather Touchscreen: Works even when wet, ensuring reliable control in all conditions.
* Built-in Wi-Fi: Access charts, weather information, and software updates directly from your display.
* ForwardScan? sonar support: Helps you see underwater obstacles for enhanced navigation.
* Full Autopilot Control: Seamlessly integrates with B&G autopilot systems for easy operation.
* Multiple Connectivity Options: Includes Ethernet, NMEA 2000, and NMEA 0183 for expanded network capabilities.
