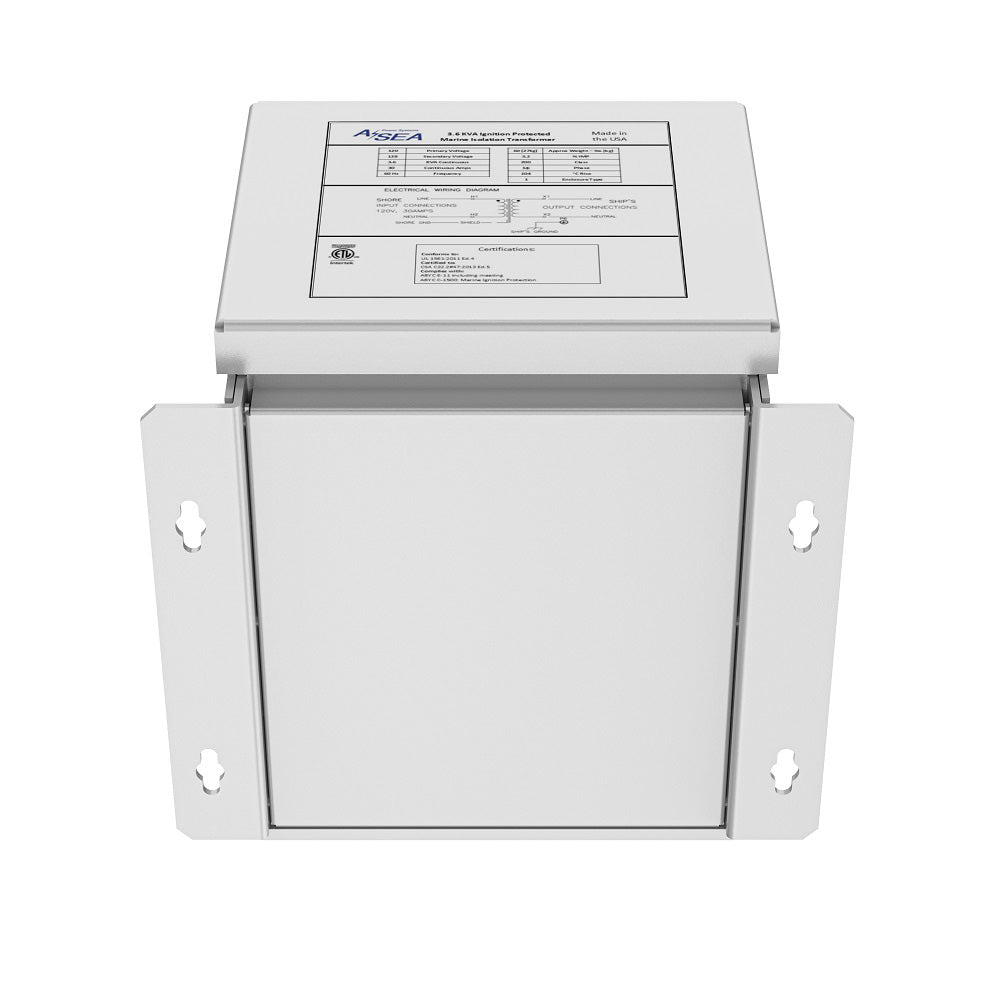

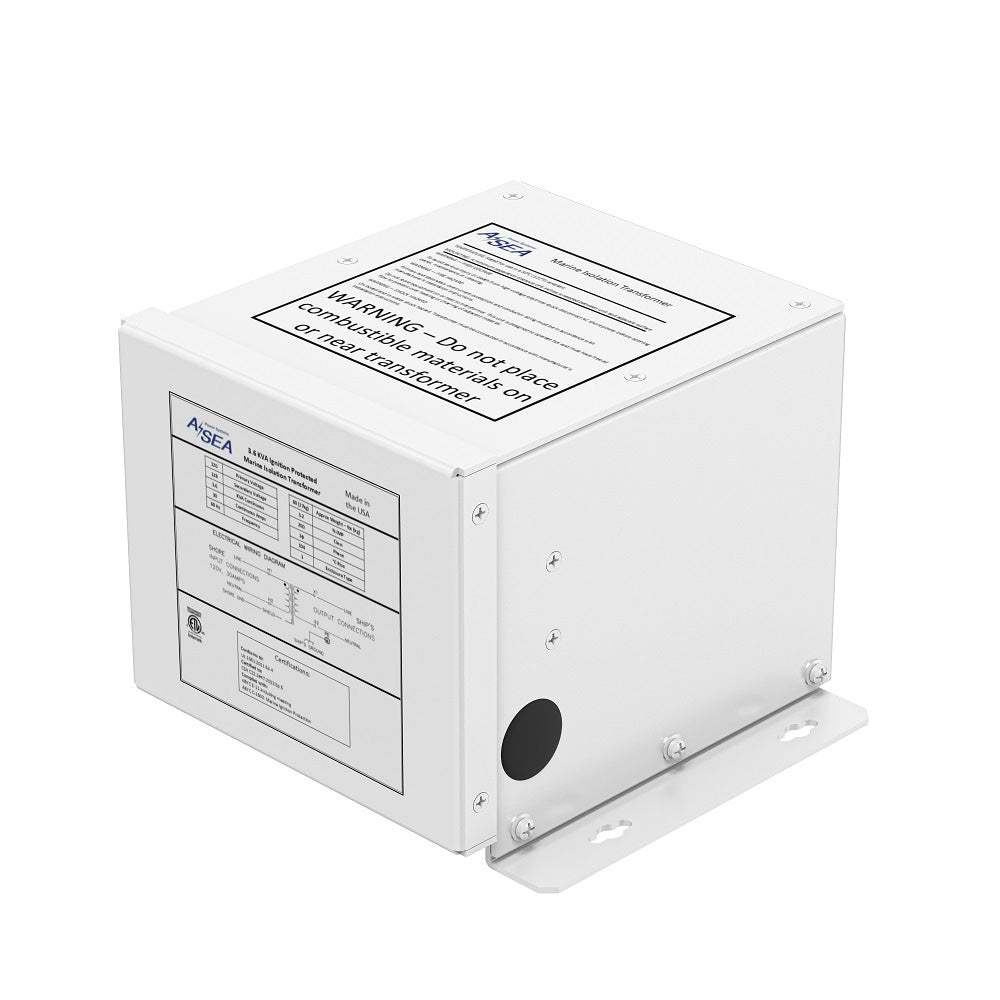

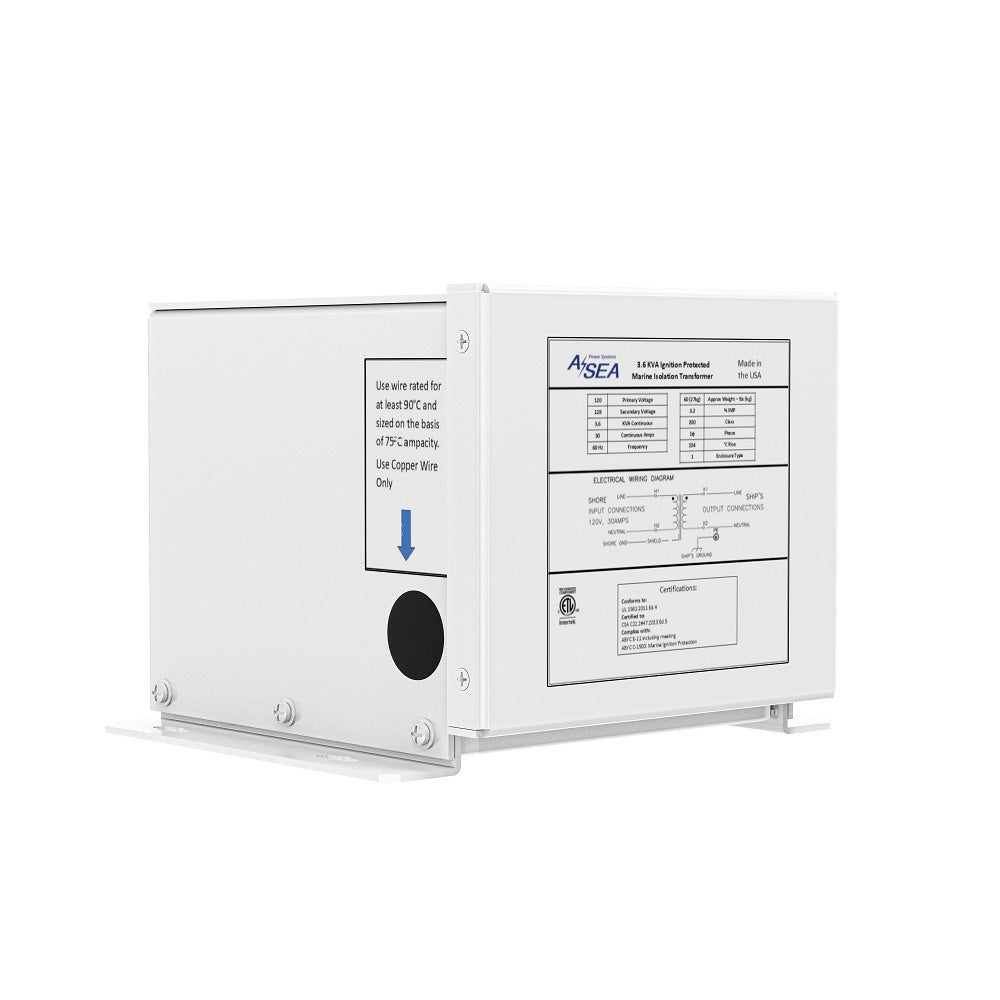

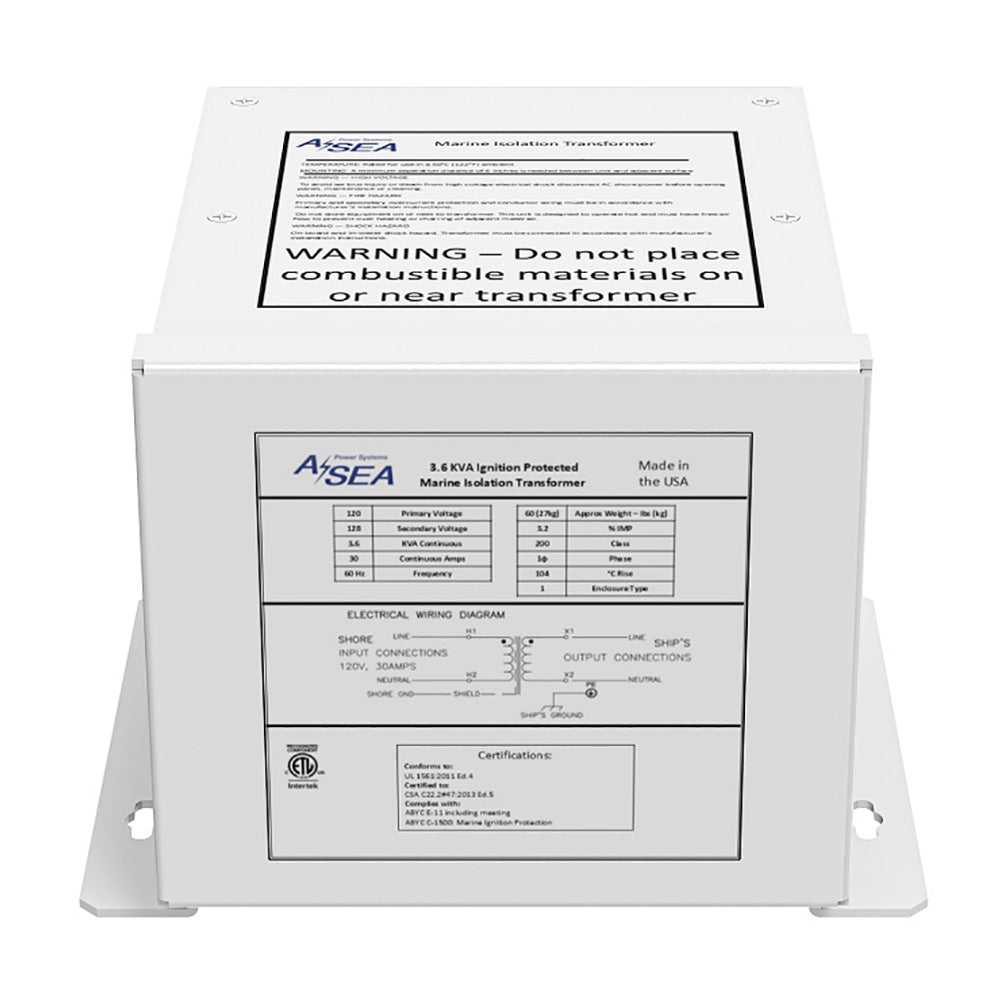

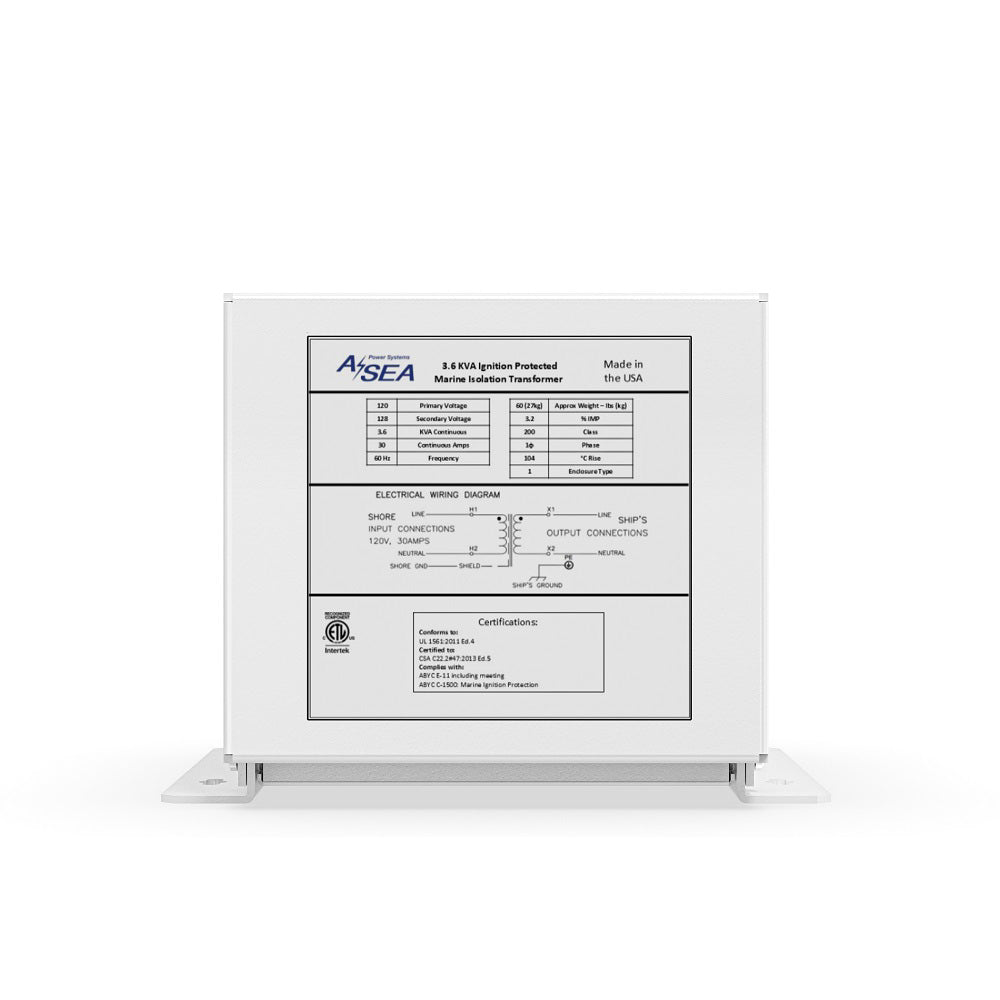

ASEA Power Systems 3.6 kVA Marine Isolation Transformer for Boat Safety and Power Protection - 634003

3.6 kVA Isolation Transformer

ASEAs Isolation Transformer is a drop-in replacement for Charles IsoG2 designed to protect vessel under-fittings from galvanic corrosion and to shield onboard electronics from reverse polarity and shore power fluctuations. It also ensures safety by preventing the boat from sending unintended electric currents into the surrounding water.

Features:

• Ignition Protected: Certified to ABYC C-1500 requirements, making them safe and reliable to use in gasoline-powered marine vessels.


• Galvanic Corrosion Protection: By isolating AC shore power from the boats AC power system, the ASEA Isolation Transformer protects the boat from galvanic corrosion.


• Marina electrical leakage compliance: With NEC 555.35 becoming mandatory for marinas to check and limit the amount of leakage available per vessel, an isolation transformer doesnt allow any electrical leakage back to the power pedestal.


• Charles Isolation Transformer Replacement: ASEAs isolation transformers are designed as a direct and improved replacement for Charles IsoG2.


• GFPE Tripping Prevention: Eliminates false GFPE tripping by preventing current flow back into the dock, guaranteeing an uninterrupted power supply, even as a transient occupant.

Specifications:

• Input Voltage: 120 VAC


• Input Current: 30 A


• Output Voltage: 120 VAC


• Output Current: 30 A


• Output Frequency: 60 Hz


• Weight: 55 lbs


• Height: 21.6 cm / 8.5 in


• Width: 21.6 cm / 8.5 in


• Width (with flange): 27.4 cm / 10.8 in


• Depth: 26.7 cm / 10.5 in

Certifications:

• UL 1561


• Meets ABYC E-11.7.1


• ABYC C-1500 (for ignition protection)

The ASEA Power Systems 3.6 kVA Isolation Transformer (Part Number: 634003) is an essential component for marine vessels requiring reliable electrical safety and protection. Designed as a direct replacement for the Charles IsoG2, this transformer enhances your boat*s electrical system by providing galvanic corrosion protection, shore power isolation, and safety compliance. Weighing approximately 55 pounds, this transformer is built to deliver consistent performance while protecting your vessel's onboard electronics and under-fittings.

Marine environments pose unique electrical challenges, including galvanic corrosion and power fluctuations. The ASEA 3.6 kVA Isolation Transformer effectively isolates your boat from shore power, preventing electrical leakage that could damage sensitive electronics or cause corrosion. Certified to meet ABYC C-1500 standards, it ensures ignition protection, making it safe for use in gasoline-powered boats. The transformer also complies with marina electrical leakage requirements, ensuring your vessel does not contribute to shore power system issues.

Installation is straightforward, thanks to its design as a drop-in replacement for the Charles IsoG2. The transformer features a compact footprint, with a height and width of approximately 8.5 inches, and a depth of around 10.5 inches. It supports a maximum input and output current of 30 amps at 120 volts, operating at 60 Hz. Its durable construction and UL 1561 certification guarantee reliable, long-term operation in demanding marine conditions.

In addition to galvanic protection, the ASEA Power Systems transformer prevents false GFPE tripping caused by reverse currents, maintaining an uninterrupted power supply even during transient conditions. This feature ensures your boat's electrical system remains functional and safe, providing peace of mind during extended voyages or dockside stays. Its compliance with ABYC E-11.7.1 further underscores its suitability for marine applications, offering both safety and peace of mind for boat owners and operators.

Features:
* Ignition Protected: Certified to ABYC C-1500 requirements for safe use in gasoline-powered marine vessels
* Galvanic Corrosion Protection: Isolates shore power to protect boat under-fittings and onboard electronics
* Marina Electrical Leakage Compliance: Prevents electrical leakage back to the power pedestal, ensuring marina standards are met
* Direct Replacement for Charles IsoG2: Designed for easy installation as a drop-in upgrade
* GFPE Tripping Prevention: Eliminates false ground-fault protection trips, maintaining consistent power supply
