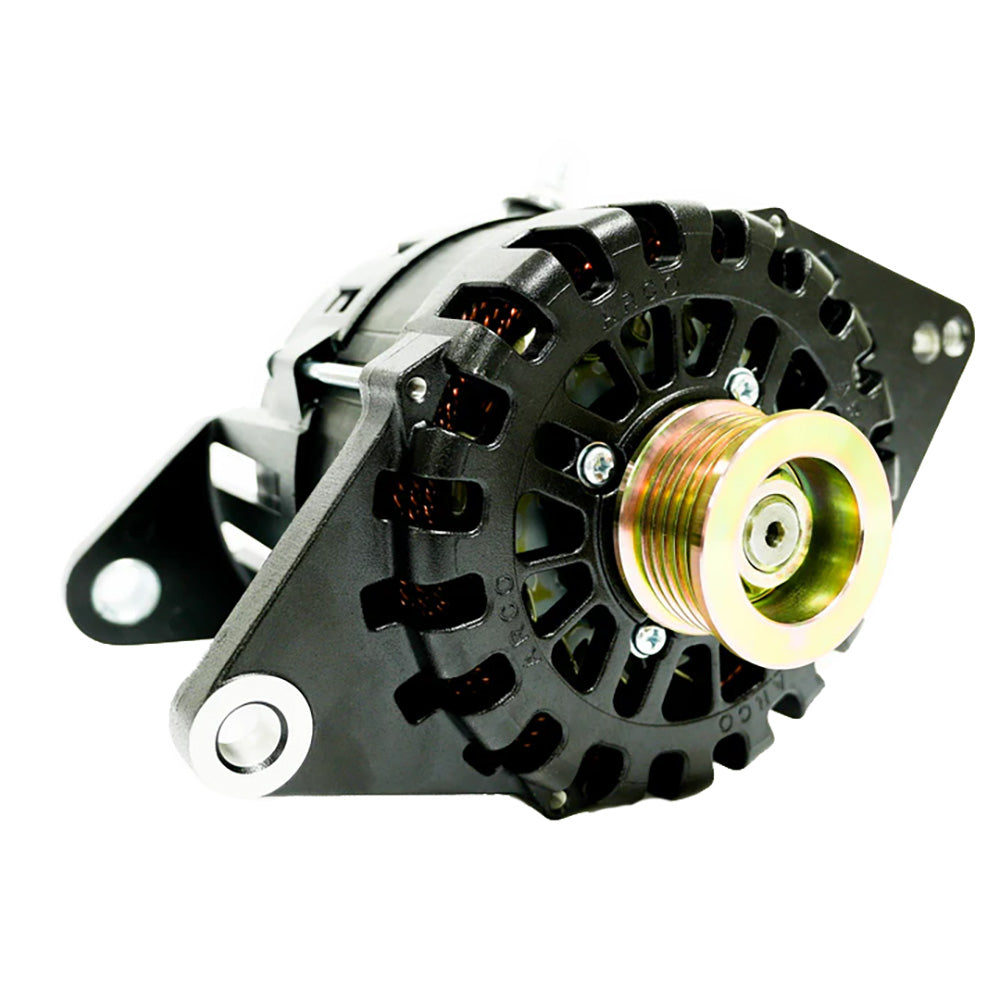

ARCO Marine Zeus A8000-48V 8kW J180 Alternator with Isolated Ground

Zeus A8000-48V 8kW J180 4 Alternator with Isolated Ground

The ARCO Zeus A8000-48V alternator turns on at lower RPMs, runs cooler, and provides more power than other 48V alternators that are larger and heavier. This alternator continuously generates over 3kW (55 Amps)at 2,500 RPM and almost 6kW (111 Amps) at 4,000 Alternator RPM. Put in real-world terms, a marine diesel engine charging at 1,200 RPM with a 3.13:1 pulley ratio is generating just over 5kW (97 Amps), and a Mercedes Sprinter at 750 RPM with a 3.21:1 ratio is generating over 3kW (55 Amps)!

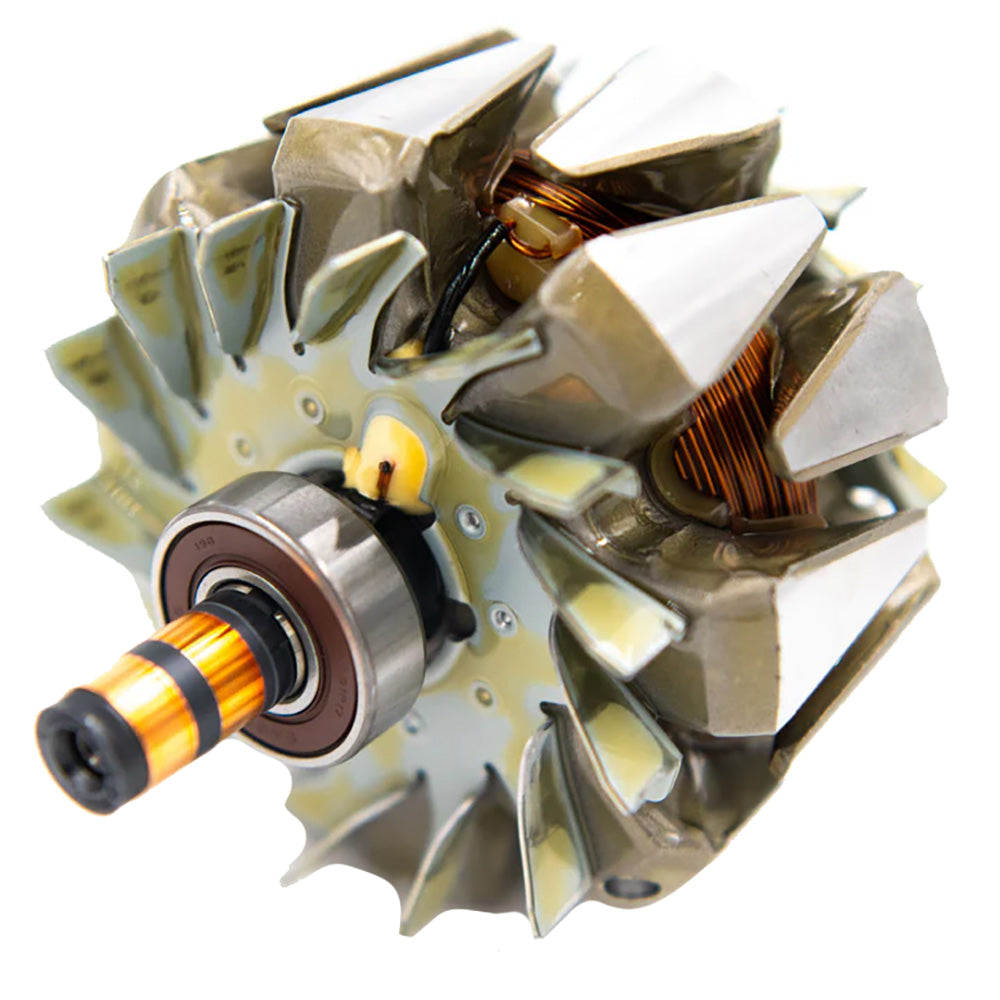

Instead of using rotors designed for 48 volts, many competitor alternators simply use their 12V rotors which is less efficient and limits output at all RPMs. In this scenario, your external smart regulator must drastically reduce field, by as much as 78%. If this is not done correctly, you run the risk of destroying the unit and damaging other components in your system. ARCO utilizes a native 48V rotor and field current. This results in our 48V alternator running cooler than competitors 48V alternators, having a direct impact on the alternators lifespan.

Features:

• Engineered for high energy production.


• Suitable for marine, RV, military, and commercial applications.


• Rapidly charges large battery banks.


• Coolest operating temperatures for increased performance:


• Heat shedding coatings

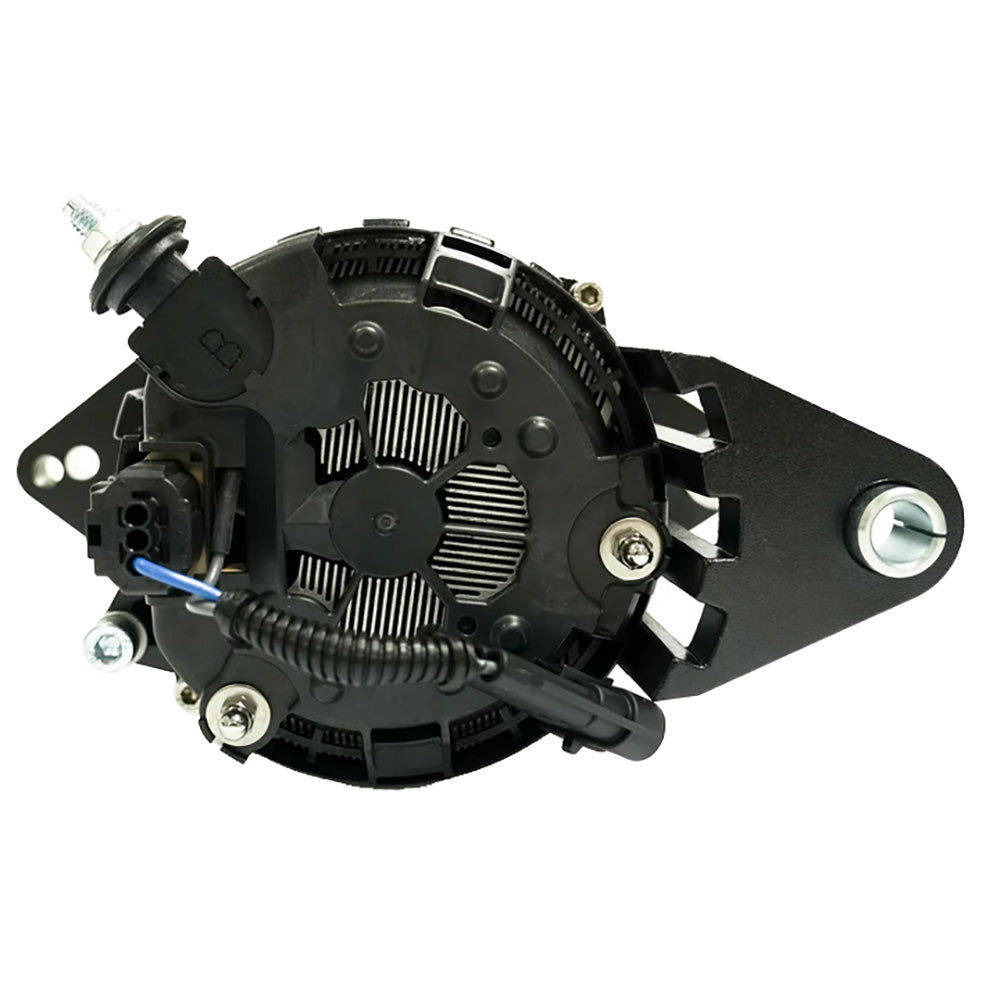

• Rectifier located on housing exterior


• Dual cooling fans


• OEM components


• Optimized for performance at idle speeds.


• Reduces the need for a generator by creating additional power with your engine.


• Unleash peak performance with E-Coat/Cerakote, keeping the high amp alternator cooler for sustained amperage output.


• Use the ARCO Zeus Bluetooth Alternator Regulator for maximum performance or lithium battery charging.


• SAE J1171 Certified.


• Proudly made in the U.S.A.

Technical Specifications:

• Voltage - 48v


• Field Type - P


• Rotor Poles - 16

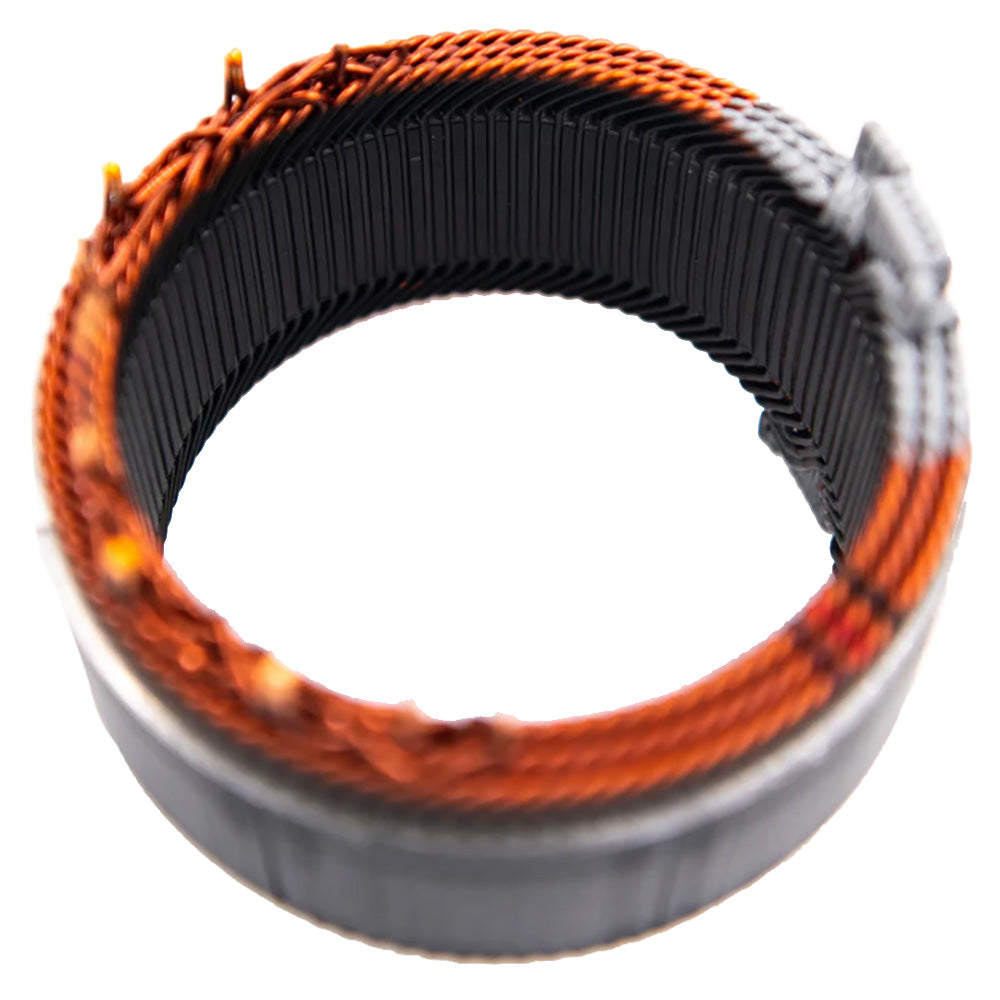

• Stator Size - 138mm


• Frame Size - Large


• Weight - 15.89lbs/7.2kg


• Regulation - External Only


• Finish - (Black) E-coating


• Cut-In RPM - 1,920 Alternator RPM


• Maximum Alt RPM - 19,000


• Battery Post - M8 Thread Post, Side Mount


• Standard Pulley - 49K6 (6-groove, 49mm)


• Pulley Mount - 17mm diameter shaft, 25mm long, threaded M17 x 1.5


• Pulley Hardware - M17 x 1.5 x 24mm nut, w/ 18mm ID x 29mm OD washer (Included)


• Diodes - 6 positive, 6 negative, 80A Rated, Avalanche


• Max Output (Cold, 9,000 RPM) at 53.5v - 180 Amps - 9,360 Watts 14.8 kW PTO


• Sustained Cruising Output (Hot, 6,000 RPM) at 53.5v - 138 Amps - 7,383 Watts 10.5 kW PTO


• Sustained Idle Output (Hot, 2,500 RPM) at 53.5v - 78 Amps 4,173 Watts 6kW PTO


• Max Continuous Operating Temperature - 100C / 212F

Mounting Application:

• Replaces most Volvo Penta alternators using a 4 J180 saddle-style mount. Also, used on many larger industrial-based engines.

The ARCO Marine Zeus A8000-48V Alternator (Part Number: 4603) is engineered for exceptional energy production, making it an ideal choice for marine, RV, military, and commercial applications. With the ability to generate over 3kW at 2,500 RPM and nearly 6kW at 4,000 RPM, this alternator outperforms larger and heavier competitors. Its unique design ensures lower RPM activation and cooler operation, significantly extending its lifespan.

What sets the Zeus A8000 apart is its native 48V rotor and optimized field current, which enhances efficiency and reduces the risk of component damage. The alternator features advanced cooling technologies including heat shedding coatings and dual cooling fans, ensuring peak performance even at idle speeds. With the ARCO Zeus Bluetooth Alternator Regulator, you can achieve maximum performance and efficient lithium battery charging. This alternator is proudly made in the U.S.A. and certified to SAE J1171 standards.

Features:
* Engineered for high energy production.
* Suitable for marine, RV, military, and commercial applications.
* Rapidly charges large battery banks.
* Coolest operating temperatures for increased performance.
* Heat shedding coatings for enhanced durability.
* Rectifier located on housing exterior for efficient cooling.
* Dual cooling fans to optimize airflow.
* OEM components ensure reliability.
* Optimized for performance at idle speeds.
* Reduces the need for a generator by creating additional power with your engine.
* Unleash peak performance with E-Coat/Cerakote technology.
* Compatible with ARCO Zeus Bluetooth Alternator Regulator for maximum efficiency.
* SAE J1171 Certified for safety and performance.
* Proudly made in the U.S.A.
