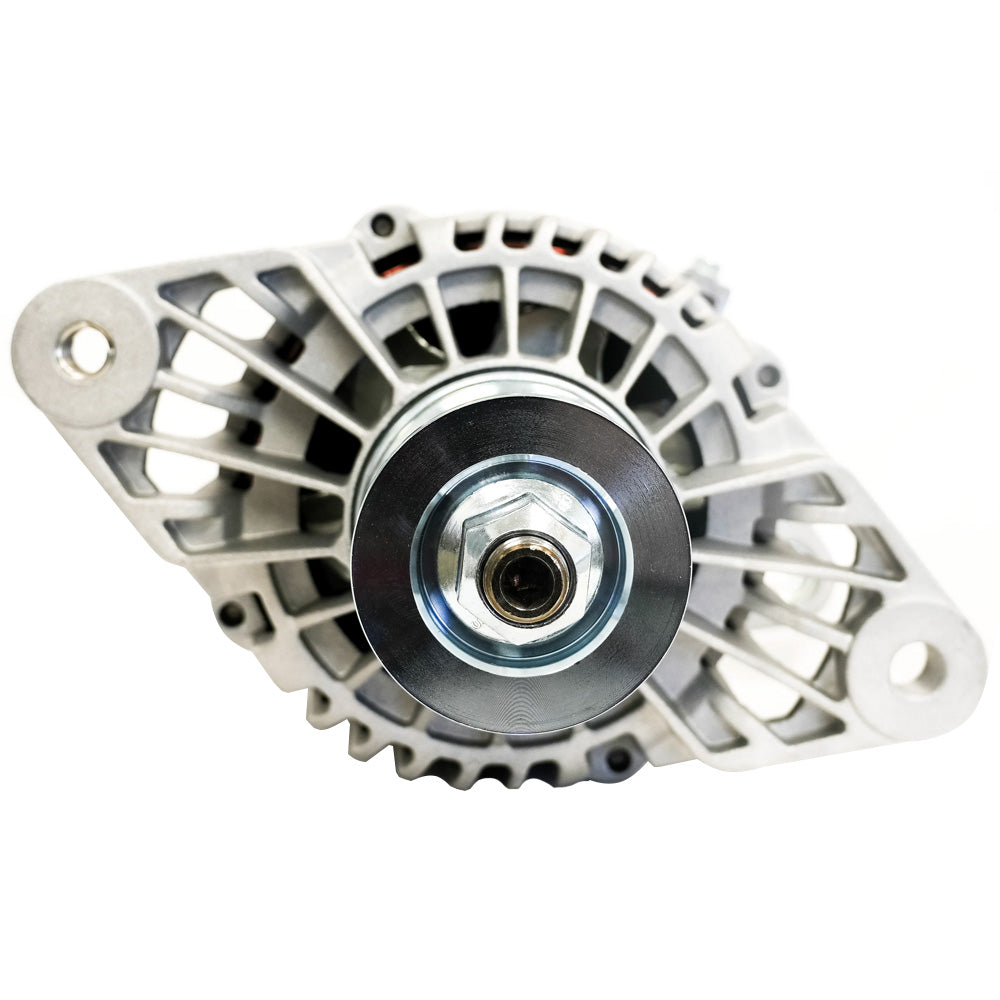

Arco Marine Zeus A220/3000W 12V High Output Alternator - J180 Mount for Marine and Diesel Applications - 4043

Zeus A220/3000W 12V HD High Output Alternator - J180 Mount

ARCO Zeus Heavy Duty Alternatoris engineered for maximum output and extended-duty performance in demanding marine and diesel applications. Delivering the highest power output in its class, this high-amperage alternator is built to rapidly charge large battery banks and support high electrical loads with confidence.

Zeus Heavy Duty operates at exceptionally cool temperatures thanks to dual internal cooling fans, ensuring sustained performance, extended service life, and reliable power production over long run times. Its high-energy output reduces reliance on onboard generators by producing more usable power directly from your engine.

Features:

• Replace your noisy generator
• Designed for Extended Duty Operation
• Engineered for high energy production
• Rapidly charges large battery banks
• Coolest operating temperatures for increased performance, with dual internal fans
• Reduces the need for a generator by creating additional power with your engine
• External Regulation Required
• SAE J1171 Certified

Regulation:

• External Only (EX): These units will come with a terminal block and a P-Type harness. They will only work with an external regulator, such as an ARCO Zeus Bluetooth alternator regulator.

Specifications:

• Voltage: 12V
• Field Type: P
• Rotor Poles: 12
• Weight: 18.7 lb (8.5 kg)
• Regulation: External Only (EX)
• Cut-In RPM: 1,288
• Maximum Alt RPM: 10,000
• Rear Battery Post: M8 Thread
• Standard Pulley: K8 59 mm
• Shaft Diameter: 7/8 in (22.22 mm)
• Avalanche Diodes: 50 amps
• Max Output (Cold): 249 amps
• Sustained Cruising Output (Hot, 6,000 RPM): 228 Amps
• Sustained Idle Output (Hot, 3,000 RPM): 200 amps
• Max Continuous Operating Temperature: 125C

The ARCO Marine Zeus A220/3000W 12V high output alternator is designed for demanding marine and diesel environments where reliable, high-amperage power is essential. Engineered to deliver maximum electrical output, this alternator rapidly charges large battery banks and supports high electrical loads, reducing the need for auxiliary generators. Its robust construction and advanced cooling system ensure consistent performance even under extended duty cycles, making it ideal for heavy-duty applications. The dual internal cooling fans effectively maintain cool operating temperatures, which enhances durability and prolongs service life. This alternator's high-energy output means more usable power is generated directly from your engine, optimizing overall power management in your marine or diesel setup.

Features:

• Replace your noisy generator for quieter operation

• Designed for extended duty operation in demanding environments

• Engineered for high energy production and reliability

• Rapidly charges large battery banks to ensure consistent power

• Cool operating temperatures maintained by dual internal fans enhance performance and longevity

• Reduces reliance on onboard generators by creating additional power directly from the engine

• External regulation required for optimal performance

• SAE J1171 certified for compliance and safety
