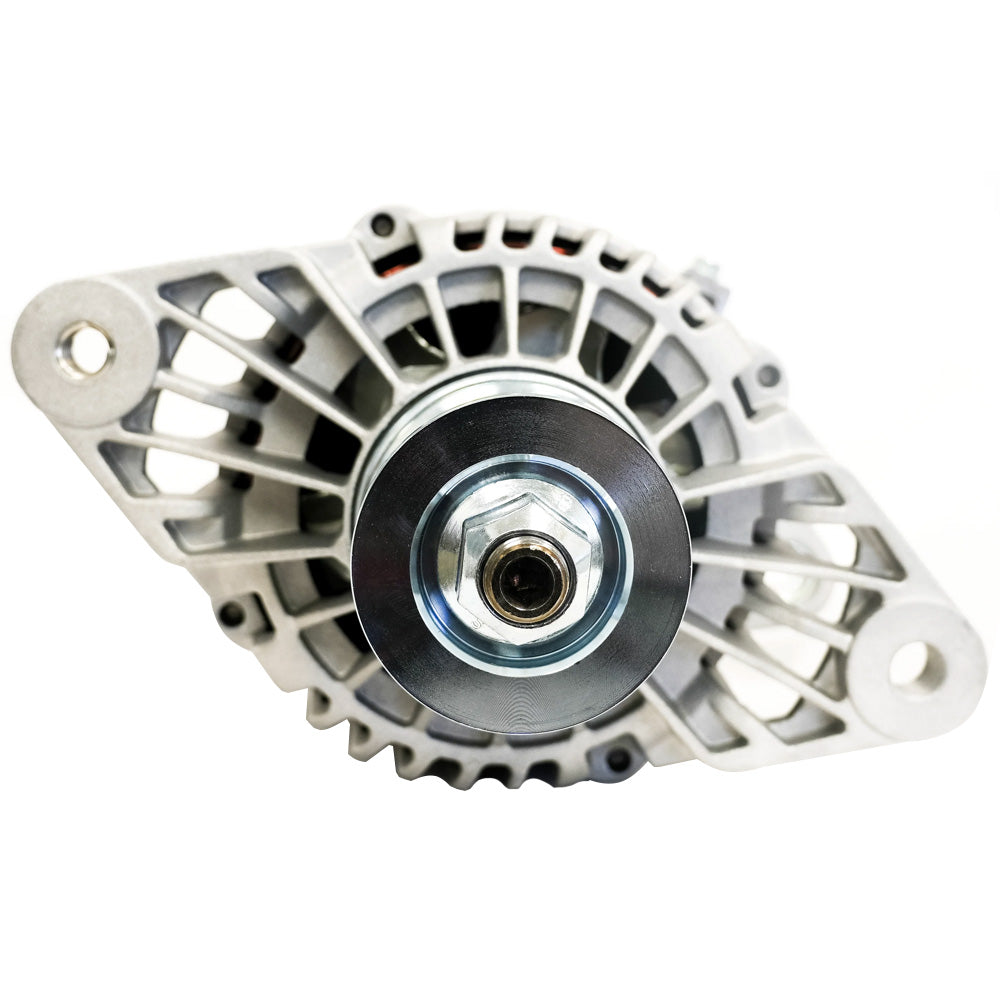

Arco Marine Zeus A115/3500W 24V Heavy Duty Alternator for Marine and Diesel Applications - 4412

Zeus A115/3500W 24V HD Hight Output Alternator - J180 Mount

ARCO Zeus Heavy Duty Alternatoris engineered for maximum output and extended-duty performance in demanding marine and diesel applications. Delivering the highest power output in its class, this high-amperage alternator is built to rapidly charge large battery banks and support high electrical loads with confidence.

Zeus Heavy Duty operates at exceptionally cool temperatures thanks to dual internal cooling fans, ensuring sustained performance, extended service life, and reliable power production over long run times. Its high-energy output reduces reliance on onboard generators by producing more usable power directly from your engine.

Features:

• Replace your noisy generator!
• Suitable for most diesel applications
• Designed for extended duty operation
• Engineered for high energy production
• Rapidly charges large battery banks.
• Coolest operating temperatures for increased performance, with dual internal fans
• Reduces the need for a generator by creating additional power with your engine.
• External Regulation Required

Regulation:

• External Only (EX): These units will come with a terminal block and a P-Type harness. They will only work with an external regulator, such as an ARCO Zeus Bluetooth alternator regulator.

Specifications:

• Voltage: 24V
• Field Type: P
• Rotor Poles: 12
• Weight: 18.7 lb (8.5 kg)
• Regulation: External Only (EX)
• Cut-In RPM: 1,288
• Maximum Alt RPM: 10,000
• Rear Battery Post: M8 Thread
• Standard Pulley: K8 59 mm
• Shaft Diameter: 7/8 in (22.22 mm)
• Avalanche Diodes: 50 amps
• Max Output (Cold): 132 amps
• Sustained Cruising Output (Hot, 6,000 RPM): 104 Amps
• Sustained Idle Output (Hot, 3,000 RPM): 89 amps
• Max Continuous Operating Temperature: 125C

The ARCO Marine Zeus A115/3500W 24V heavy-duty alternator is engineered to provide maximum electrical output in demanding marine and diesel environments. Designed for extended duty operation, this high-amperage alternator efficiently charges large battery banks and supports high electrical loads, reducing reliance on onboard generators. Its robust construction and high energy production capabilities make it a reliable choice for challenging power needs. Equipped with dual internal cooling fans, it operates at exceptionally cool temperatures, ensuring sustained performance and extended service life even under continuous operation. This cooling advantage allows for increased power output and enhances the durability of the alternator over long run times. The Zeus A115/3500W is suitable for most diesel applications and is engineered specifically to deliver high energy output, making it ideal for users seeking to optimize power generation without the noise and inefficiency of traditional generators. The external regulation requirement means it comes with a terminal block and P-Type harness, compatible only with external regulators like the ARCO Zeus Bluetooth regulator, ensuring precise control of the charging process. With a voltage of 24V, rotor poles of 12, and a maximum cold output of 132 amps, this alternator provides ample power for demanding applications. Its design includes a K8 pulley with a 59 mm diameter, a 7/8 inch shaft, and an M8 rear battery post thread, ensuring compatibility with standard engine setups. The alternator's regulation system ensures optimal performance at an engine RPM as low as 1,288, with a maximum altitude operation of 10,000 feet. Built to withstand demanding conditions, it features avalanche diodes rated at 50 amps and can operate at sustained temperatures up to 125°C, making it a durable and reliable power source for marine and diesel applications. The ARCO Marine Zeus A115/3500W is an essential upgrade for those seeking a high-output, extended-duty alternator that enhances power capabilities while maintaining cool, efficient operation.

Features:

• Replace your noisy generator!

• Suitable for most diesel applications

• Designed for extended duty operation

• Engineered for high energy production

• Rapidly charges large battery banks

• Coolest operating temperatures for increased performance, with dual internal fans

• Reduces the need for a generator by creating additional power with your engine

• External regulation required
