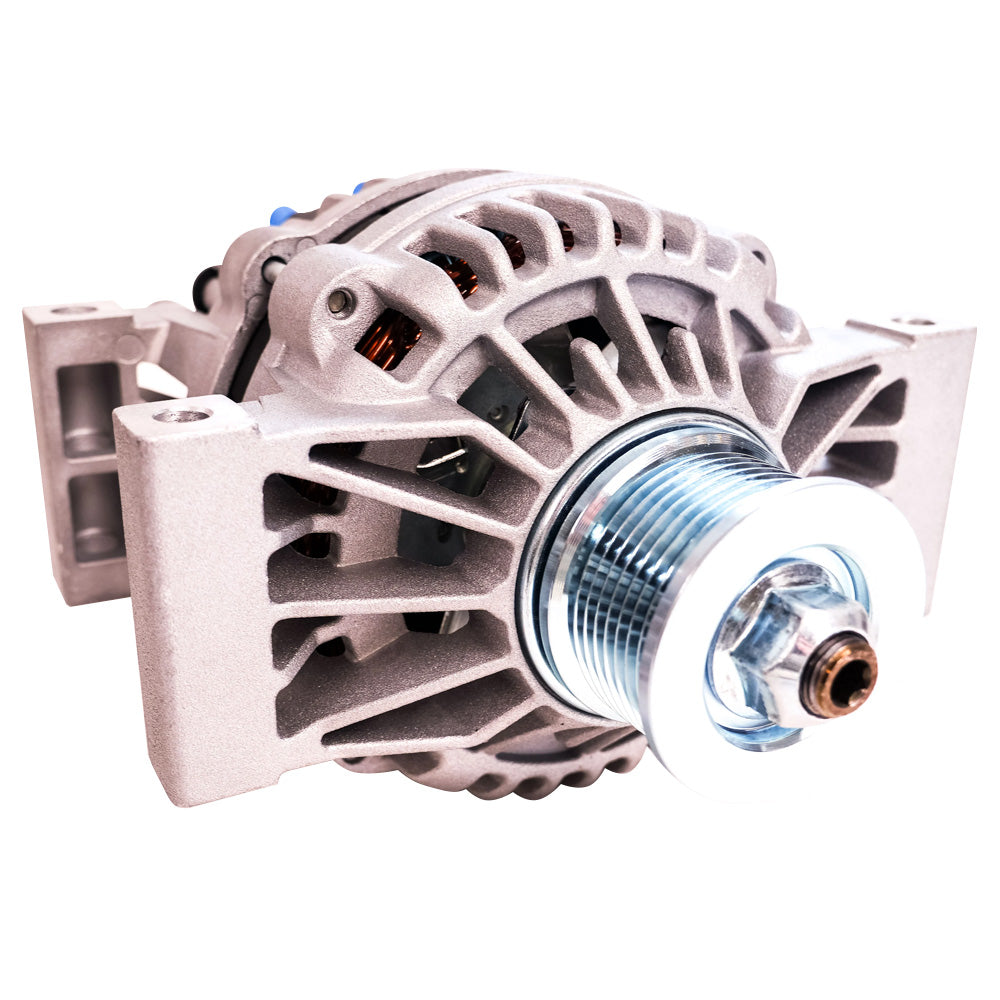

Arco Marine Zeus A115/3500W 24V HD High Output Alternator - Pad Mount for Marine and Diesel Applications - 4413

Zeus A115/3500W 24V HD High Output Alternator - Pad Mount

ARCO Zeus Heavy Duty Alternatoris engineered for maximum output and extended-duty performance in demanding marine and diesel applications. Delivering the highest power output in its class, this high-amperage alternator is built to rapidly charge large battery banks and support high electrical loads with confidence.

Zeus Heavy Duty operates at exceptionally cool temperatures thanks to dual internal cooling fans, ensuring sustained performance, extended service life, and reliable power production over long run times. Its high-energy output reduces reliance on onboard generators by producing more usable power directly from your engine.

Features:

• Replace your noisy generator!
• Suitable for most diesel applications
• Designed for extended duty operation
• Engineered for high energy production
• Rapidly charges large battery banks.
• Coolest operating temperatures for increased performance, with dual internal fans
• Reduces the need for a generator by creating additional power with your engine.
• External Regulation Required

Regulation:

• External Only (EX): These units will come with a terminal block and a P-Type harness. They will only work with an external regulator, such as an ARCO Zeus Bluetooth alternator regulator.

Specifications:

• Voltage: 24V
• Field Type: P
• Rotor Poles: 12
• Weight: 18.7 lb (8.5 kg)
• Regulation: External Only (EX)
• Cut-In RPM: 1,288
• Maximum Alt RPM: 10,000
• Rear Battery Post: M8 Thread
• Standard Pulley: K8 59 mm
• Shaft Diameter: 7/8 in (22.22 mm)
• Avalanche Diodes: 50 amps
• Max Output (Cold): 132 amps
• Sustained Cruising Output (Hot, 6,000 RPM): 104 Amps
• Sustained Idle Output (Hot, 3,000 RPM): 89 amps
• Max Continuous Operating Temperature: 125C

The ARCO Marine Zeus A115/3500W 24V HD High Output Alternator is designed to deliver maximum electrical power for demanding marine and diesel engine applications. Engineered with high amperage output, this alternator efficiently charges large battery banks and supports high electrical loads, reducing dependency on onboard generators. Its robust construction and advanced cooling system ensure reliable performance even under extended duty cycles, making it an essential component for heavy-duty marine setups. The alternator features dual internal cooling fans that maintain optimal operating temperatures, promoting longer service life and consistent power production. Its external regulation compatibility allows for flexible integration with various external regulators, ensuring optimal voltage control tailored to your system's needs. With a weight of approximately 18.7 pounds, the Zeus A115/3500W is built for durability and ease of installation, featuring a standard K8 pulley and a rear M8 threaded battery post. This high-output alternator is suitable for most diesel applications, offering a reliable power source that minimizes noise and maximizes energy efficiency. The regulation system requires an external regulator, such as the ARCO Zeus Bluetooth regulator, to ensure precise voltage control and optimal performance. Whether replacing a noisy generator or enhancing your existing electrical system, this alternator provides a powerful, cooling-efficient solution for extended marine and diesel operations. Its high cold maximum output of 132 amps and sustained cruising output of 104 amps at 6,000 RPM make it an outstanding choice for high-demand environments, ensuring your electrical system remains fully powered during extended use. The ARCO Marine Zeus A115/3500W is the ideal upgrade for those seeking a durable, high-performance alternator that supports demanding electrical loads while maintaining cool operating temperatures and long-term reliability.

Features:

• Replace your noisy generator with high-amperage power output

• Suitable for most diesel marine applications

• Designed for extended duty operation in demanding environments

• Engineered for high energy production and rapid battery charging

• Dual internal cooling fans for optimal operating temperatures

• Reduces reliance on onboard generators by producing additional power from your engine

• External regulation required for voltage control

• Standard K8 pulley and rear M8 battery post for easy installation

• High cold maximum output of 132 amps

• Supports sustained cruising output of 104 amps at 6,000 RPM
