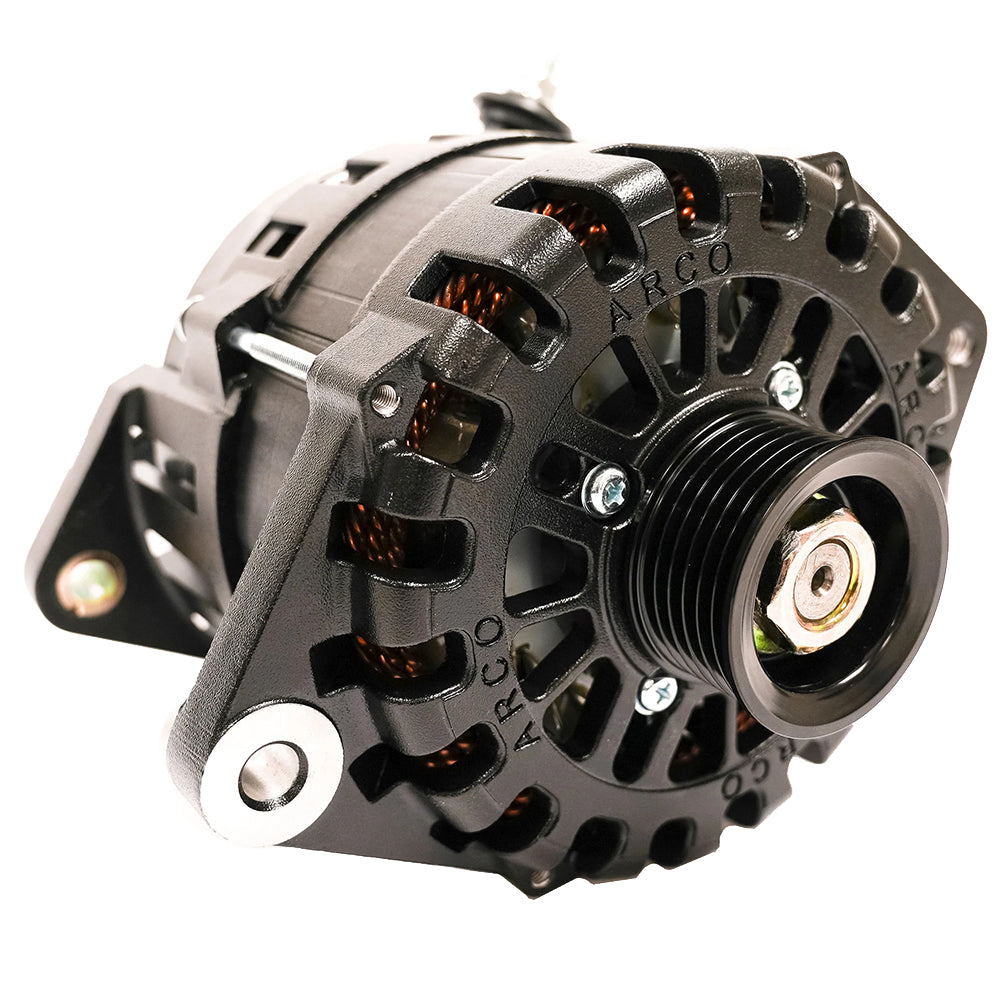

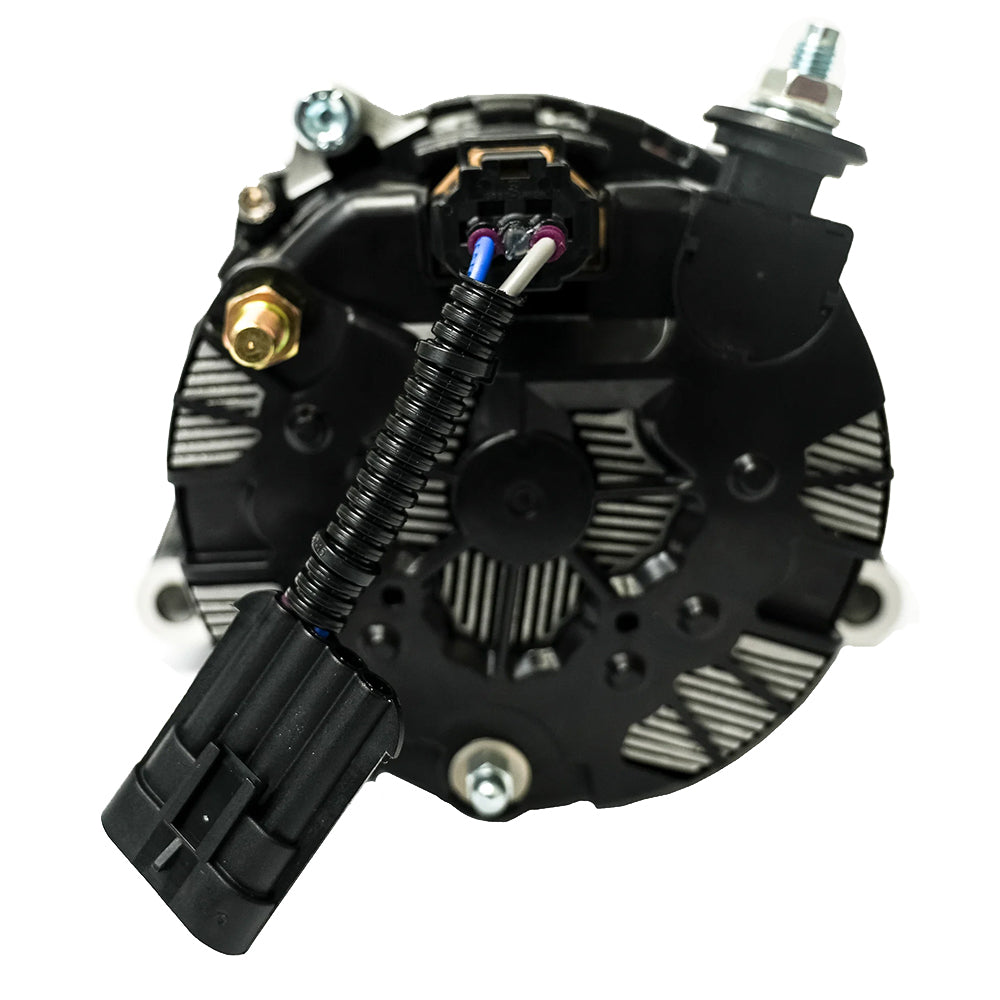

ARCO Marine Zeus 24V 4kW LTO Alternator (Part Number: 4402) with Isolated Ground

Zeus 24V 4kW Low Turn On (LTO) 3.15 Alternator with Isolated Ground (Common Rail)

The ARCO Zeus 24v 4kW LTO alternator turns on at lower RPMs, runs cooler, and provides more power than older designs that are larger and heavier. This alternator continuously generates over 1.4kW (51 Amps) at just under 1,500 RPM and almost 2.4kW (87 Amps) at 2,000 Alternator RPM. Put in real-world terms, a marine diesel engine idling at 750 RPM with a 2:1 pulley ratio is generating over 1.5kW (55 Amps), and a Mercedes Sprinter at 750 RPM with a 3.21:1 ratio is generating over 2.5kW (91 Amps)!

The ARCO Zeus 24v 4kW alternator turns on at lower RPMs, runs cooler, and provides more power than older designs that are larger and heavier. The newest generation of 24V performance has arrived.

Competitors 24V alternators utilize a 12V rotor and field current which is less efficient and limits output at all RPMs. ARCO utilizes a native 24V rotor and field current. This results in our 24V alternator running cooler than competitors 24V alternators, having a direct impact on the alternator lifespan.

Features:

• Engineered for high energy production.


• Suitable for marine, RV, military, and commercial applications.


• Rapidly charges large battery banks.


• Coolest operating temperatures for increased performance:


• Heat shedding coatings


• Rectifier located on housing exterior


• Dual cooling fans


• OEM components


• Optimized for performance at cruising speeds.


• Reduces the need for a generator by creating additional power with your engine.


• Unleash peak performance with E-Coat/Cerakote, keeping the high amp alternator cooler for sustained amperage output.


• Use the ARCO Zeus Bluetooth Alternator Regulator for maximum performance or lithium battery charging.


• SAE J1171 Certified.


• Proudly made in the U.S.A.

Technical Specifications:

• Voltage - 24v


• Field Type - P


• Rotor Poles - 16


• Stator Size - 138mm


• Frame Size - Large


• Weight - 15.89lbs/7.2kg


• Regulation - External Only


• Finish - (Black) E-coating


• Cut-In RPM - 1,072 Alternator RPM


• Maximum Alt RPM - 19,000


• Battery Post - M8 Thread Post, Side Mount


• Standard Pulley - 49K6 (6-groove, 49mm)


• Pulley Mount - 17mm diameter shaft, 25mm long, threaded M17 x 1.5


• Pulley Hardware - M17 x 1.5 x 24mm nut, w/ 18mm ID x 29mm OD washer (Included)


• Diodes - 6 positive, 6 negative, 50A Rated, Avalanche


• Max Output (Cold, 9,000 RPM) at 27.5v - 144 Amps - 3,960 Watts 5.7Kw PTO


• Sustained Cruising Output (Hot, 6,000 RPM) at 27.5v - 130 Amps - 3,575 Watts 5.1Kw PTO


• Sustained Idle Output (Hot, 3,000 RPM) at 27.5v - 108 Amps - 2,970 Watts 4.2kW PTO


• Max Continuous Operating Temperature - 100C / 212F

Mounting Application:

• Must Be used on Yanmar Common Rail Engines introduced after 2013 (JH-CR, 3JH40, 4JH45, 4JH57, 4JH80, 4JH110).

Introducing the ARCO Marine Zeus 24V 4kW Low Turn On (LTO) Alternator, a cutting-edge solution for your power generation needs. This high-performance alternator is designed to activate at lower RPMs, allowing for quicker charging and cooler operation than traditional models. With the capability to continuously generate over 1.4kW (51 Amps) at just under 1,500 RPM, and nearly 2.4kW (87 Amps) at 2,000 RPM, the Zeus alternator is a game-changer in marine, RV, military, and commercial applications.

Engineered for efficiency, the ARCO Zeus uses a native 24V rotor and field current, which enhances its output and longevity compared to competitors using a 12V design. This innovative approach results in optimal performance even at cruising speeds while maintaining the coolest operating temperatures. The alternator is equipped with dual cooling fans and an external rectifier, ensuring robust performance under demanding conditions. Unleash peak performance with the Zeus and reduce the need for an additional generator by harnessing more power from your engine.

Features:
* Engineered for high energy production.: Engineered for high energy production.
* Suitable for marine, RV, military, and commercial applications.: Suitable for marine, RV, military, and commercial applications.
* Rapidly charges large battery banks.: Rapidly charges large battery banks.
* Coolest operating temperatures for increased performance.: Coolest operating temperatures for increased performance.
* Heat shedding coatings enhance efficiency.: Heat shedding coatings enhance efficiency.
* Rectifier located on housing exterior to reduce heat.: Rectifier located on housing exterior to reduce heat.
* Dual cooling fans for optimal airflow.: Dual cooling fans for optimal airflow.
* Uses OEM components for reliability.: Uses OEM components for reliability.
* Optimized for performance at cruising speeds.: Optimized for performance at cruising speeds.
* Reduces the need for a generator by creating additional power with your engine.: Reduces the need for a generator by creating additional power with your engine.
* E-Coat/Cerakote technology keeps the high amp alternator cooler.: E-Coat/Cerakote technology keeps the high amp alternator cooler.
* Compatible with ARCO Zeus Bluetooth Alternator Regulator for maximum performance or lithium battery charging.: Compatible with ARCO Zeus Bluetooth Alternator Regulator for maximum performance or lithium battery charging.
* SAE J1171 Certified for safety and reliability.: SAE J1171 Certified for safety and reliability.
* Proudly made in the U.S.A.: Proudly made in the U.S.A.
