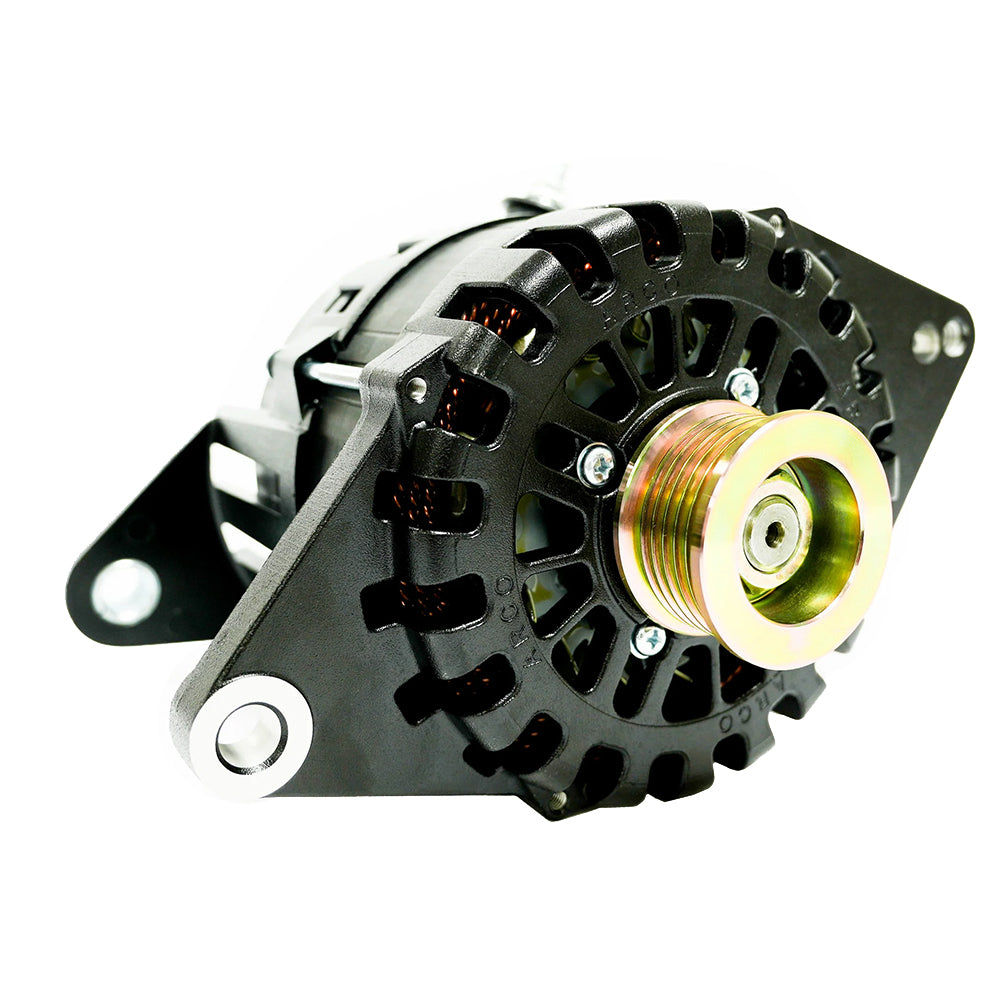

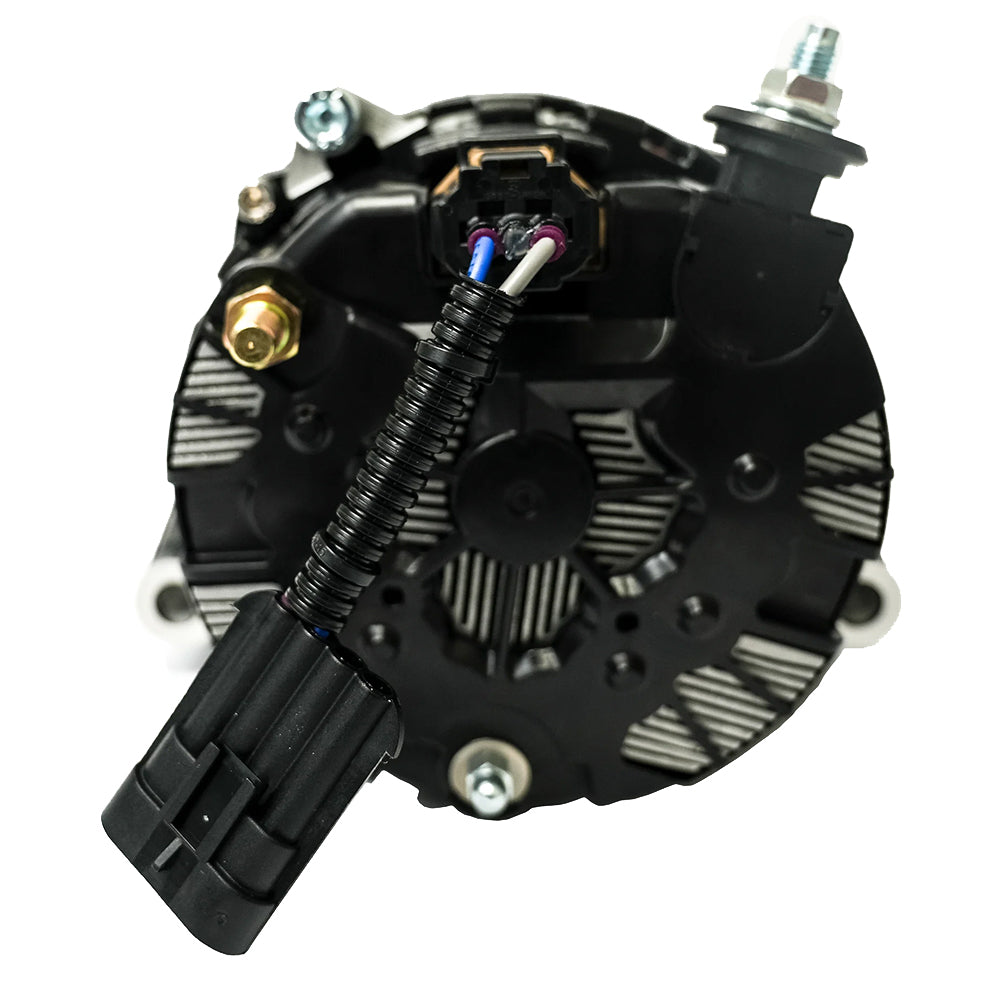

ARCO Marine Zeus 24V 4kW Low Turn On (LTO) J180 4" Alternator - Part #4403

Zeus 24V 4kW Low Turn On (LTO) J180 4 Alternator with Isolated Ground

The ARCO Zeus 24v 4kW LTO alternator turns on at lower RPMs, runs cooler, and provides more power than older designs that are larger and heavier. This alternator continuously generates over 1.4kW (51 Amps) at just under 1,500 RPM and almost 2.4kW (87 Amps) at 2,000 Alternator RPM. Put in real-world terms, a marine diesel engine idling at 750 RPM with a 2:1 pulley ratio is generating over 1.5kW (55 Amps), and a Mercedes Sprinter at 750 RPM with a 3.21:1 ratio is generating over 2.5kW (91 Amps)!

The ARCO Zeus 24v 4kW alternator turns on at lower RPMs, runs cooler, and provides more power than older designs that are larger and heavier. The newest generation of 24V performance has arrived.

Competitors 24V alternators utilize a 12V rotor and field current which is less efficient and limits output at all RPMs. ARCO utilizes a native 24V rotor and field current. This results in our 24V alternator running cooler than competitors 24V alternators, having a direct impact on the alternator lifespan.

Features:

• Engineered for high energy production.


• Suitable for marine, RV, military, and commercial applications.


• Rapidly charges large battery banks.


• Coolest operating temperatures for increased performance:


• Heat shedding coatings


• Rectifier located on housing exterior


• Dual cooling fans


• OEM components


• Optimized for performance at cruising speeds.


• Reduces the need for a generator by creating additional power with your engine.


• Unleash peak performance with E-Coat/Cerakote, keeping the high amp alternator cooler for sustained amperage output.


• For maximum performance or lithium battery charging, use the ARCO Zeus Bluetooth Alternator Regulator.


• SAE J1171 Certified.


• Proudly made in the U.S.A.

Technical Specifications:

• Voltage - 24v


• Field Type - P


• Rotor Poles - 16


• Stator Size - 138mm


• Frame Size - Large


• Weight - 15.89lbs/7.2kg


• Regulation - External Only


• Finish - (Black) E-coating


• Cut-In RPM - 1,072 Alternator RPM


• Maximum Alt RPM - 19,000


• Battery Post - M8 Thread Post, Side Mount


• Standard Pulley - 49K6 (6-groove, 49mm)


• Pulley Mount - 17mm diameter shaft, 25mm long, threaded M17 x 1.5


• Pulley Hardware - M17 x 1.5 x 24mm nut, w/ 18mm ID x 29mm OD washer (Included)


• Diodes - 6 positive, 6 negative, 50A Rated, Avalanche


• Max Output (Cold, 9,000 RPM) at 27.5v - 144 Amps - 3,960 Watts 5.7Kw PTO


• Sustained Cruising Output (Hot, 6,000 RPM) at 27.5v - 130 Amps - 3,575 Watts 5.1Kw PTO


• Sustained Idle Output (Hot, 3,000 RPM) at 27.5v - 108 Amps - 2,970 Watts 4.2kW PTO


• Max Continuous Operating Temperature - 100C / 212F

Mounting Application:

• Replaces most Volvo Penta alternators using a 4 J180 saddle-style mount.

Experience superior power generation with the ARCO Marine Zeus 24V 4kW Low Turn On (LTO) J180 Alternator. This advanced alternator is designed to activate at lower RPMs, making it ideal for marine, RV, military, and commercial applications. With the capability to generate over 1.4kW (51 Amps) at just under 1,500 RPM and nearly 2.4kW (87 Amps) at 2,000 RPM, this alternator outperforms traditional designs. Its efficient operation not only maximizes energy production but also ensures cooler running temperatures, extending the lifespan of the unit.

The ARCO Zeus is engineered with a native 24V rotor and field current, which enhances efficiency compared to competitors that rely on a 12V system. This innovation results in a cooler operation and a more robust performance at cruising speeds. Additionally, the alternator features dual cooling fans, heat shedding coatings, and an exterior rectifier to optimize energy output and reliability. Whether you're charging large battery banks or reducing the need for a generator, the ARCO Marine Zeus is your go-to solution for reliable power.

Features:
* Engineered for high energy production.: Engineered for high energy production.
* Suitable for marine, RV, military, and commercial applications.: Suitable for marine, RV, military, and commercial applications.
* Rapidly charges large battery banks.: Rapidly charges large battery banks.
* Coolest operating temperatures for increased performance.: Coolest operating temperatures for increased performance.
* Heat shedding coatings.: Heat shedding coatings.
* Rectifier located on housing exterior.: Rectifier located on housing exterior.
* Dual cooling fans for optimal thermal management.: Dual cooling fans for optimal thermal management.
* OEM components ensure reliability.: OEM components ensure reliability.
* Optimized for performance at cruising speeds.: Optimized for performance at cruising speeds.
* Reduces the need for a generator by creating additional power with your engine.: Reduces the need for a generator by creating additional power with your engine.
* E-Coat/Cerakote technology keeps the alternator cooler for sustained output.: E-Coat/Cerakote technology keeps the alternator cooler for sustained output.
* For maximum performance or lithium battery charging, use the ARCO Zeus Bluetooth Alternator Regulator.: For maximum performance or lithium battery charging, use the ARCO Zeus Bluetooth Alternator Regulator.
* SAE J1171 Certified.: SAE J1171 Certified.
* Proudly made in the U.S.A.: Proudly made in the U.S.A.
