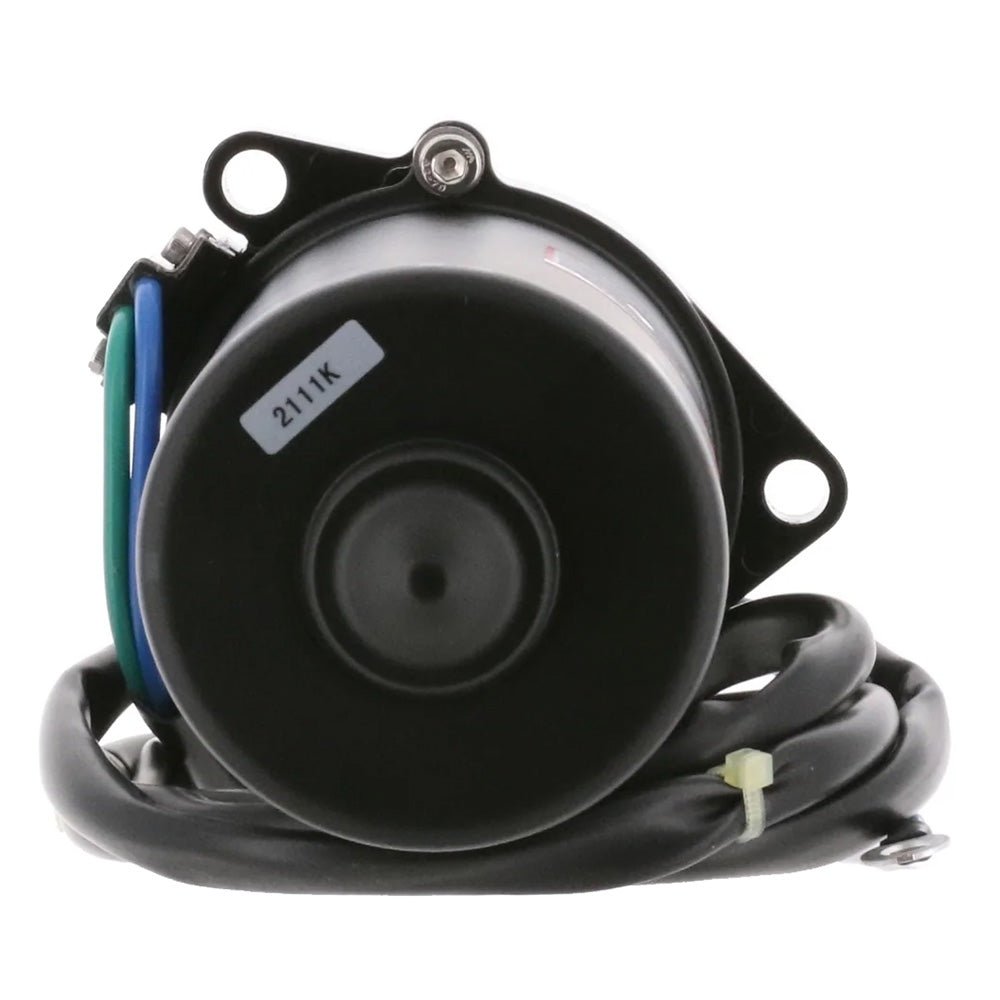

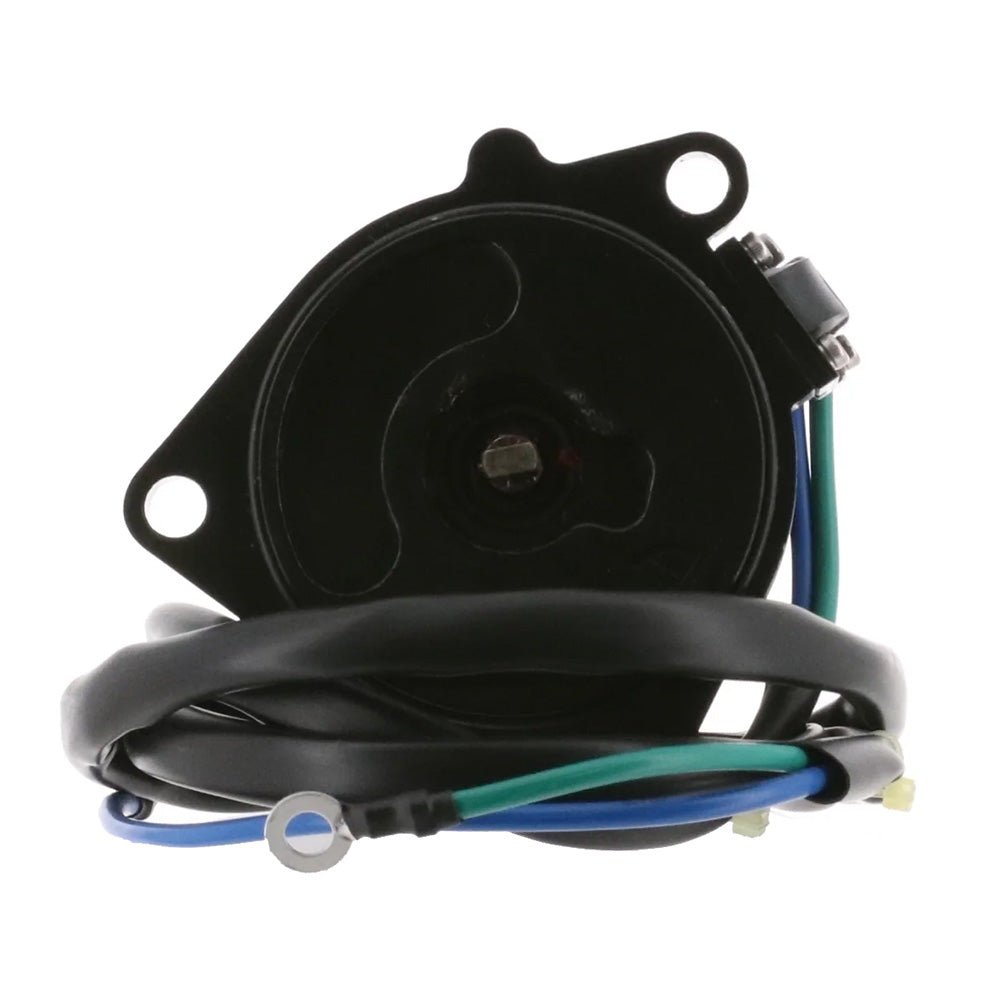

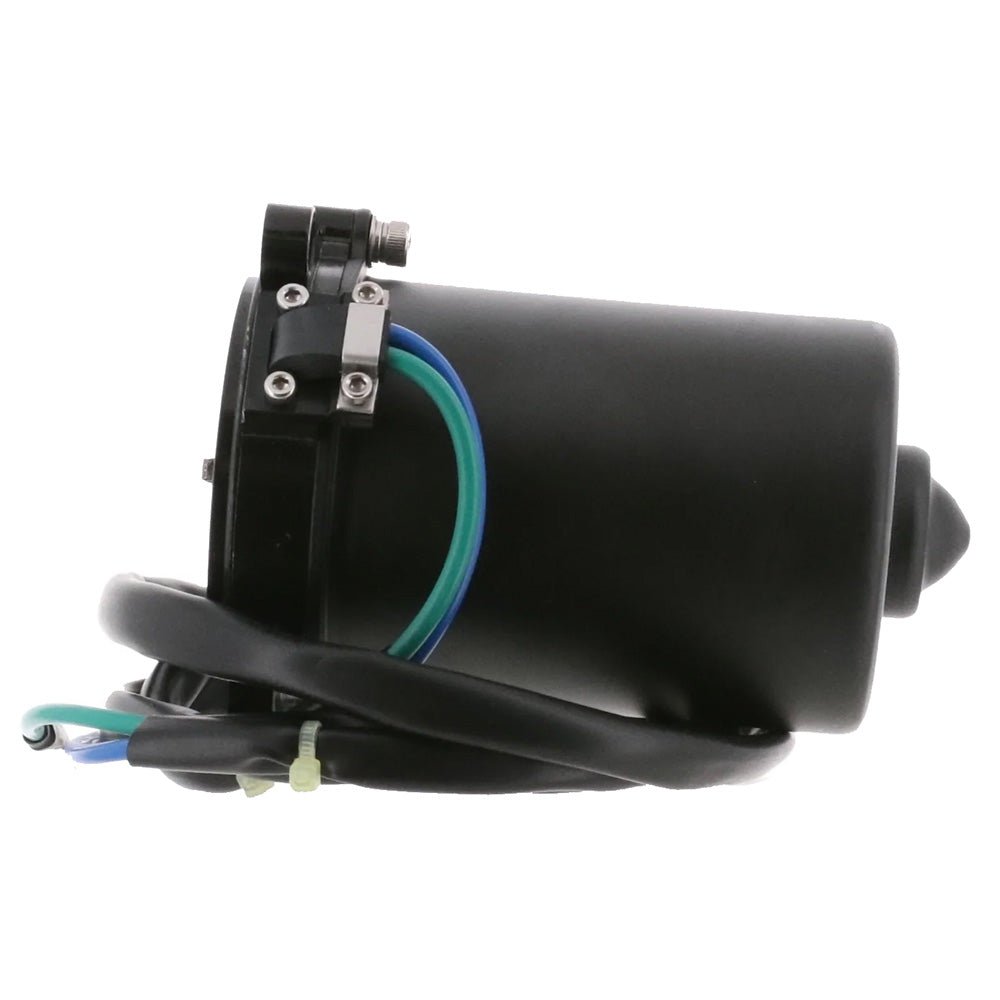

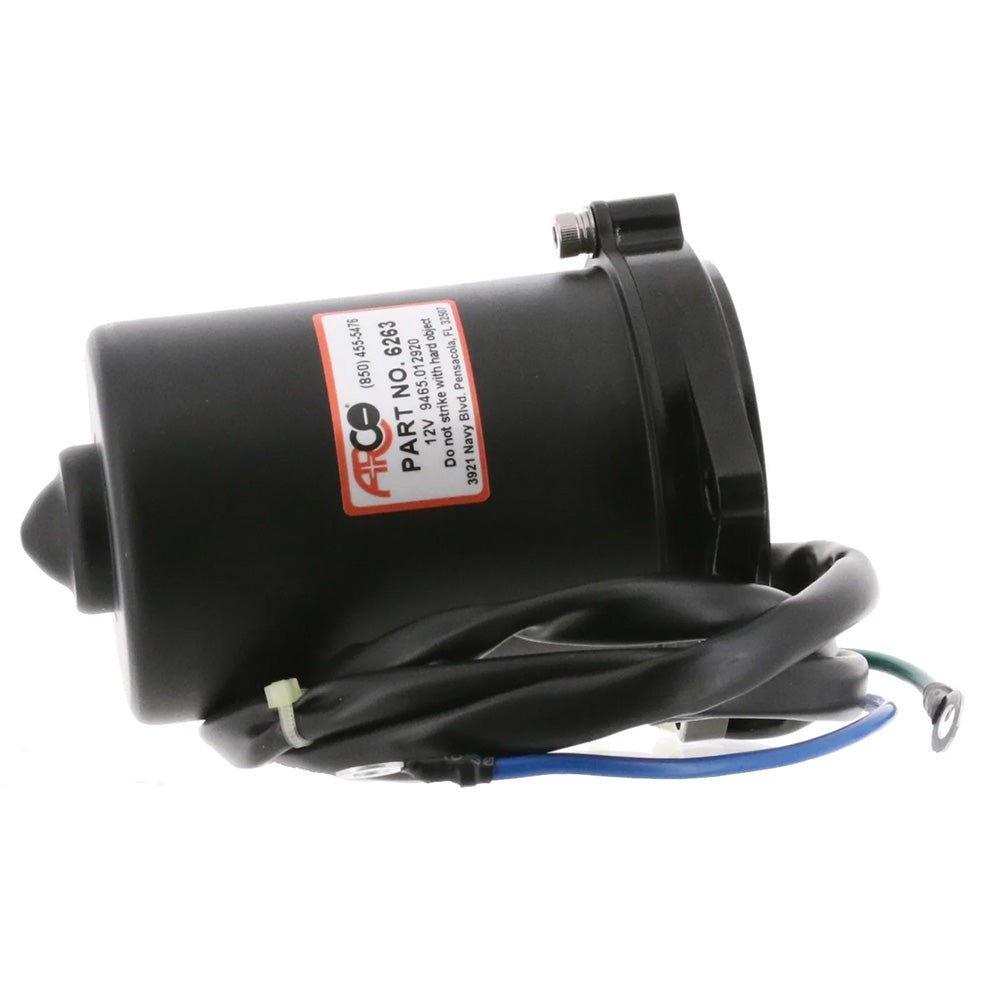

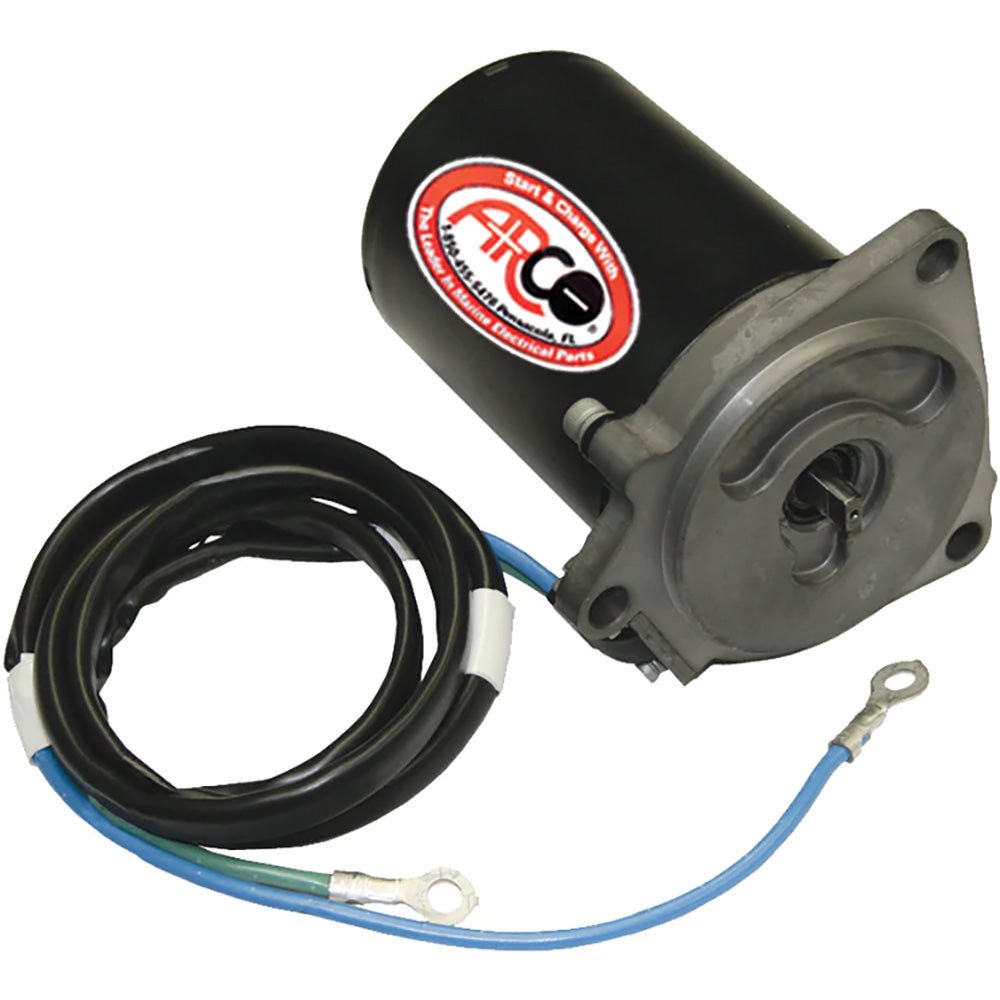

ARCO Marine Replacement Outboard Tilt Trim Motor - Yamaha, 2-Wire, 3 Bolt, Flat Blade Shaft - 6263

Replacement Outboard Tilt Trim Motor - Yamaha, 2-Wire, 3 Bolt, Flat Blade Shaft

Replacement outboard tilt trim motor that will fit Yamaha 2002-2009 200, 225, 250 HP 4 Stroke, 2002-2009 200-300 HP 2 Stroke, 2-wire connection, 3-bolt mount, Includes O-ring, Ring Terminal Ends.

ARCO advises cleaning all connections: A corroded connection creates resistance, lowering the amperage required to operate the motor.

Features:

• Tilt trim motors are dynamically tested to ensure out-of-the-box performance


• Motor shafts induction case hardened at bearing surfaces for superior wear resistance


• Epoxy Powder coated for maximum insulation protection

Warranty Information:

When properly installed, all ARCO products are warrantied against defects in materials and workmanship for a period of 12 months for leisure use and 90 days for commercial or racing applications.

Add an extra year of warranty to your rotating electric ARCO product (Tilt/Trim Motors, Alternators, Outboard Starters, and Inboard Starters) when you register your product within 30 days of purchase. You can register your product by visiting arcomarine.com/product-registration

Replaces:

MERCURY Tilt Trim Motor 888645T1
YAMAHA Tilt Trim Motor 60V-43880-00
YAMAHA Tilt Trim Motor 69J-43880-00
YAMAHA Tilt Trim Motor 69J-43880-01
SIERRA Tilt Trim Motor 18-6798
