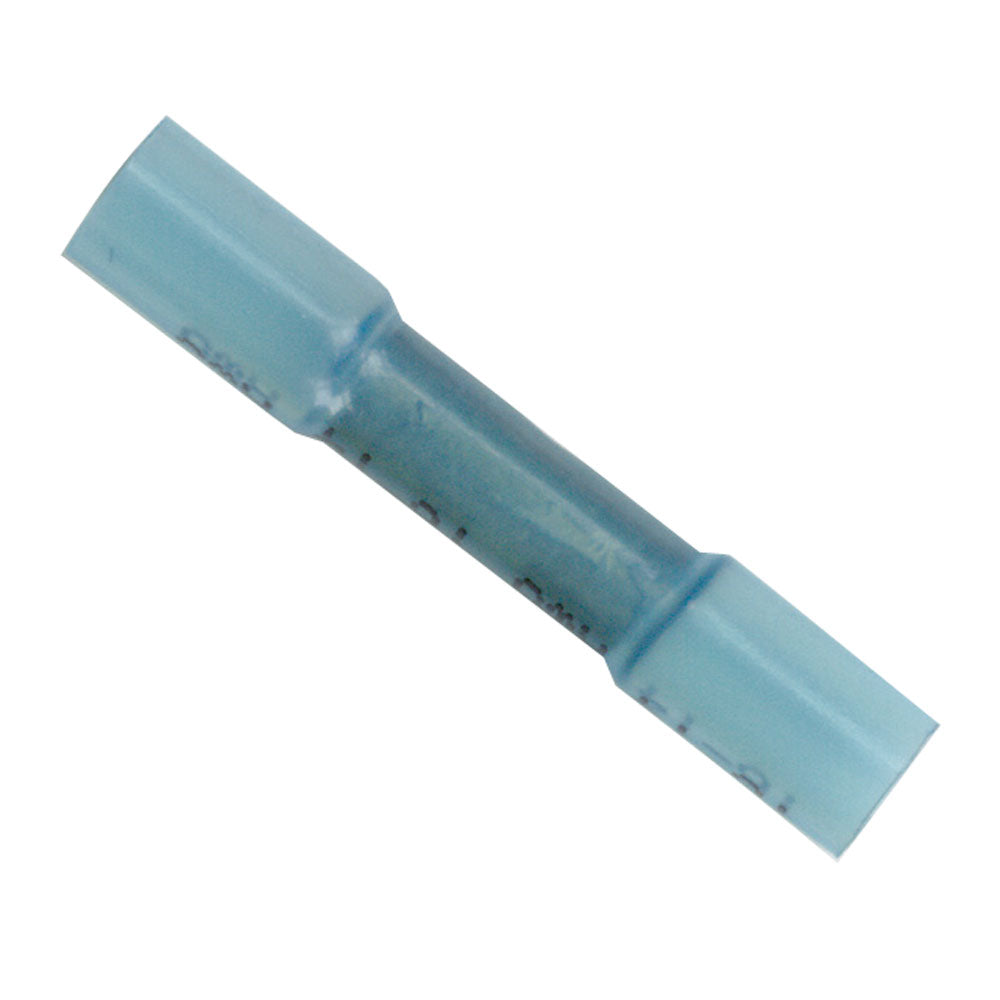

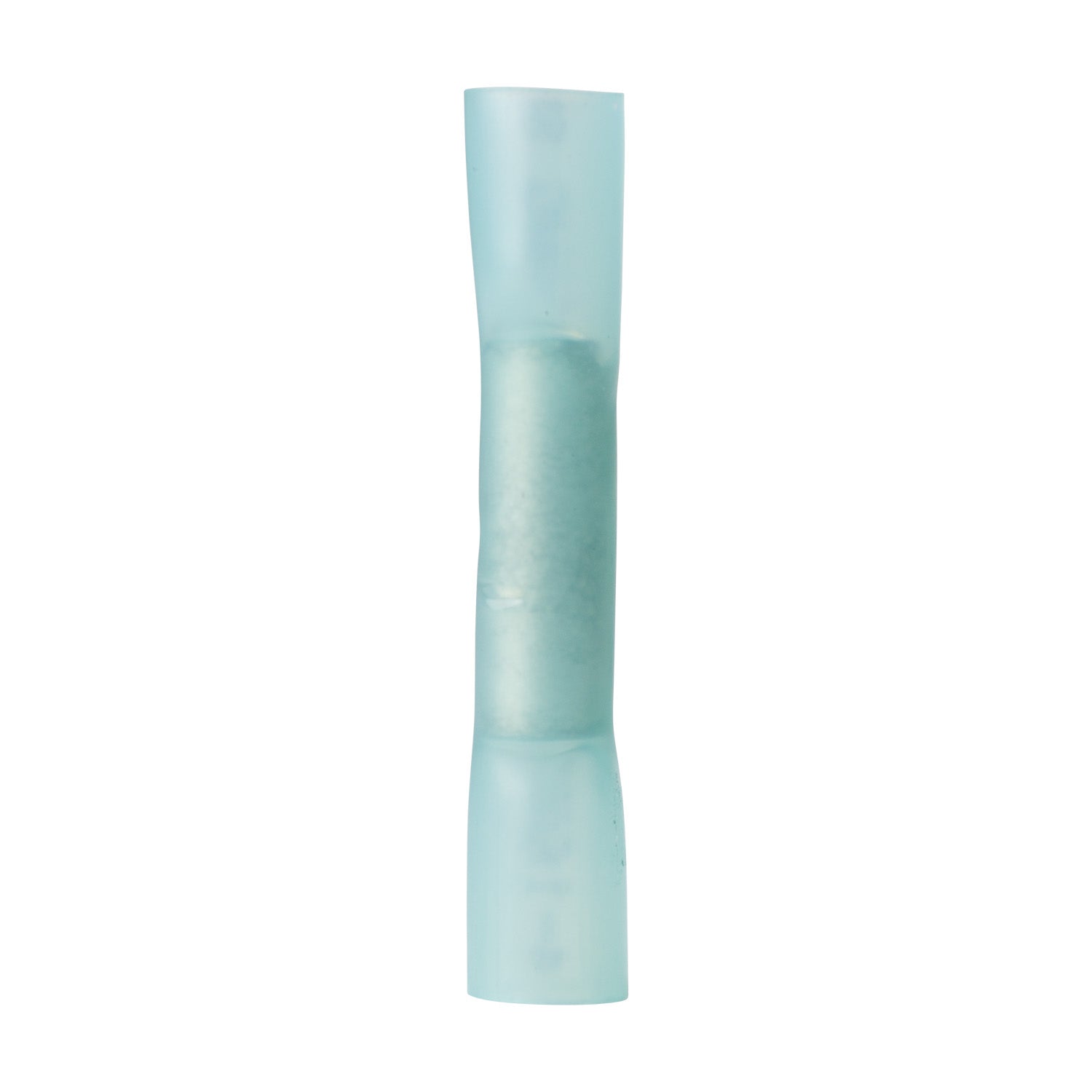

Ancor 16-14 Butt Connector Heat Shrink Blue 500 Pack

In stock
SKU: ANC309102
Regular price $143.99
  • Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC.
  • Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief.
  • Nylon insulator, preferred by experts, for Marine Grade™ resistance to sunlight, water, oil, chemicals, vibration and cut-through damage.
  • UL Listed and CSA Recognized
  • Highest shrink ratio - shrinks to 1/3 original size.
  • Shrinks at 257° F/125° C.
  • Operating temperature range 40° C to 110° C.
  • ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing
  • Shrinks to form a water tight seal and the ultimate vibration and strain relief.
  • Tinned for corrosion resistance.
  • Pure copper for maximum current flow.
  • Brazed seam for maximum strength.
Wire Range mm Qty/Pkg Part No
12-10 3-5 500 309202
12-10 3-5 100 309299
16 - 14 1-2 100 309199
16 - 14 1-2 500 309102
22 - 18 0.3-0.8 500 309002
22 - 18 0.3-0.8 100 309099
