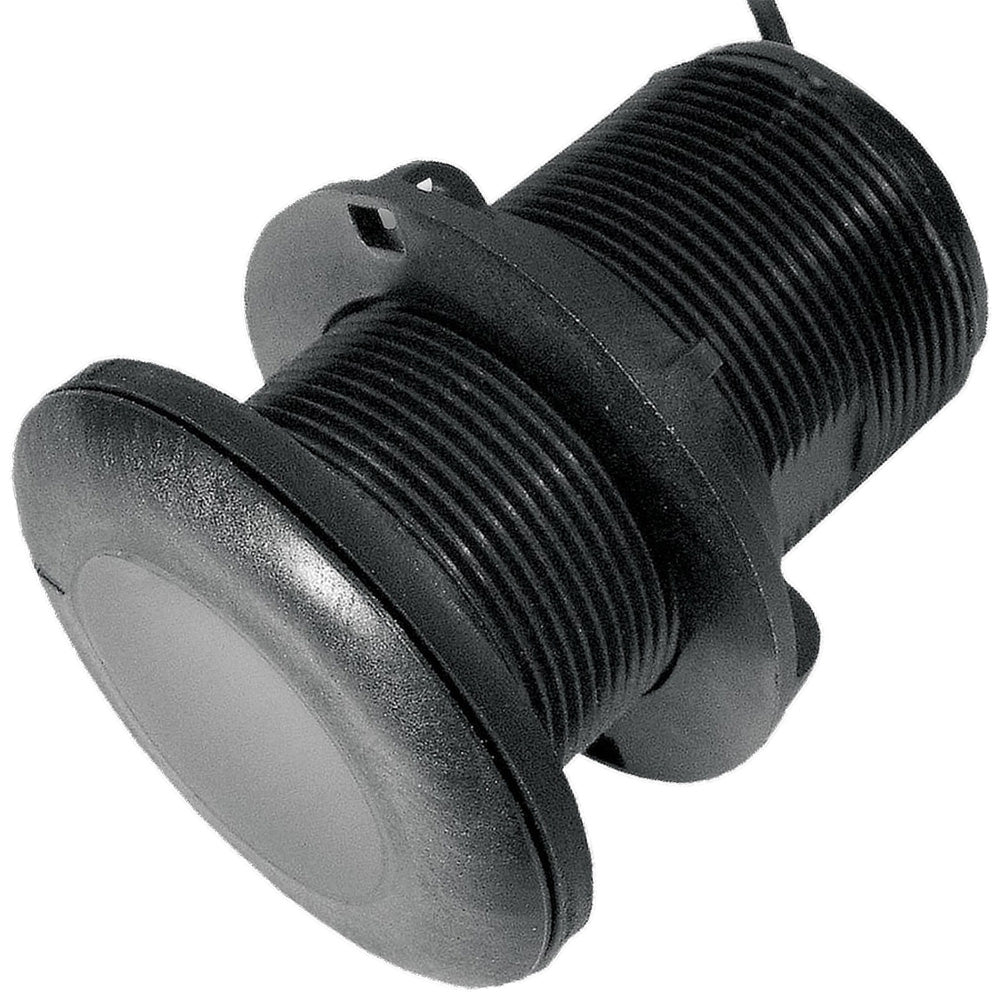

Airmar P319 Plastic Thru Hull Depth and Temperature Transducer - 600W, 50/200 kHz with Match & Match Cable - P319-DT-MM

P319 Plastic Thru Hull Depth Temperature Transducer - 600W- 50/200kHz - Requires Mix Match Cable

Airmars entry-level P319 features a single, 50/200 kHz, dual-frequency, ceramic element in a low-profile, plastic housing. The nearly flush design minimizes drag with only 5 mm (3/16) extending outside of the hull.

Features:

• Requires Mix Match Cable for the Fishfinder Unit
• Cable Length 2M
• Deadrise Range: Best performance through 7. Can accommodate up to 12.
• Hole Size: 51 mm (2)
• Usable Shaft Length: 63.5 mm (2.50)
• Depth only or depth and fast-response water-temperature sensing
• 600 W of power
• Dual-frequency element:
• 50 kHz with a wide 45 beamwidth for depth performance to 366 m (1200)
• 200 kHz with a 12 beamwidth for depth performance to 213 m (700)
• Right-angle cable exit saves space and protects the transducer if stepped on
• An included rubber washer allows tightening of the hull nut to irregular hull surfaces
• Low-profile housing has minimum drag
• Plastic housing is ABYC H-27 compliant

The Airmar P319 Plastic Thru Hull Depth and Temperature Transducer is an ideal solution for boaters seeking reliable depth measurement and water temperature sensing. Its low-profile, nearly flush design minimizes drag, with only 5 mm (3/16 inches) protruding from the hull, ensuring smooth navigation and reduced water resistance. The ceramic element operates at dual frequencies of 50 kHz and 200 kHz, providing versatile depth performance for various water conditions. The 50 kHz setting offers a wide 45-degree beamwidth for depths up to 1,200 feet, making it suitable for deep-sea applications, while the 200 kHz setting has a narrower beamwidth for shallower waters up to 700 feet, enhancing detail and accuracy in coastal or inland waterways. The transducer is powered by 600 watts, delivering consistent and clear signals for your fishfinder system.
Constructed with a durable plastic housing compliant with ABYC H-27 standards, the P319 is designed to withstand marine environments. Its right-angle cable exit design optimizes space and protects the cable from accidental damage if stepped on. The unit features a 51 mm (2 inches) hole size for installation and a usable shaft length of 2.5 inches, accommodating a variety of hull configurations. An included rubber washer aids in securing the transducer to irregular hull surfaces, ensuring a tight seal and optimal performance. The P319 requires a Match & Match cable, which is 2 meters long, to connect seamlessly with compatible fishfinder units. This setup provides both depth and fast-response water temperature data, making it a versatile addition to your marine electronics setup.
Whether you need reliable depth readings or real-time water temperature information, the Airmar P319 is designed to meet a wide range of boating and fishing needs. Its combination of low-profile design, dual-frequency operation, and durable construction makes it a dependable choice for both recreational and professional mariners seeking precision and durability in their transducers.

Features:

• Requires Match & Match Cable for connection to fishfinder units

• Cable length: 2 meters (6.56 feet)

• Optimal deadrise range: up to 7°, accommodates up to 12°

• Hole size: 51 mm (2 inches)

• Usable shaft length: 2.5 inches (63.5 mm)

• Provides depth only or depth and water temperature sensing

• 600 watts power output for clear signals

• Dual-frequency ceramic element: 50 kHz with 45° beamwidth for depths up to 1,200 feet, and 200 kHz with 12° beamwidth for depths up to 700 feet

• Right-angle cable exit design for space efficiency and cable protection

• Includes rubber washer for secure mounting on irregular hull surfaces

• Low-profile housing minimizes drag and water resistance

• Plastic housing complies with ABYC H-27 standards for marine safety
