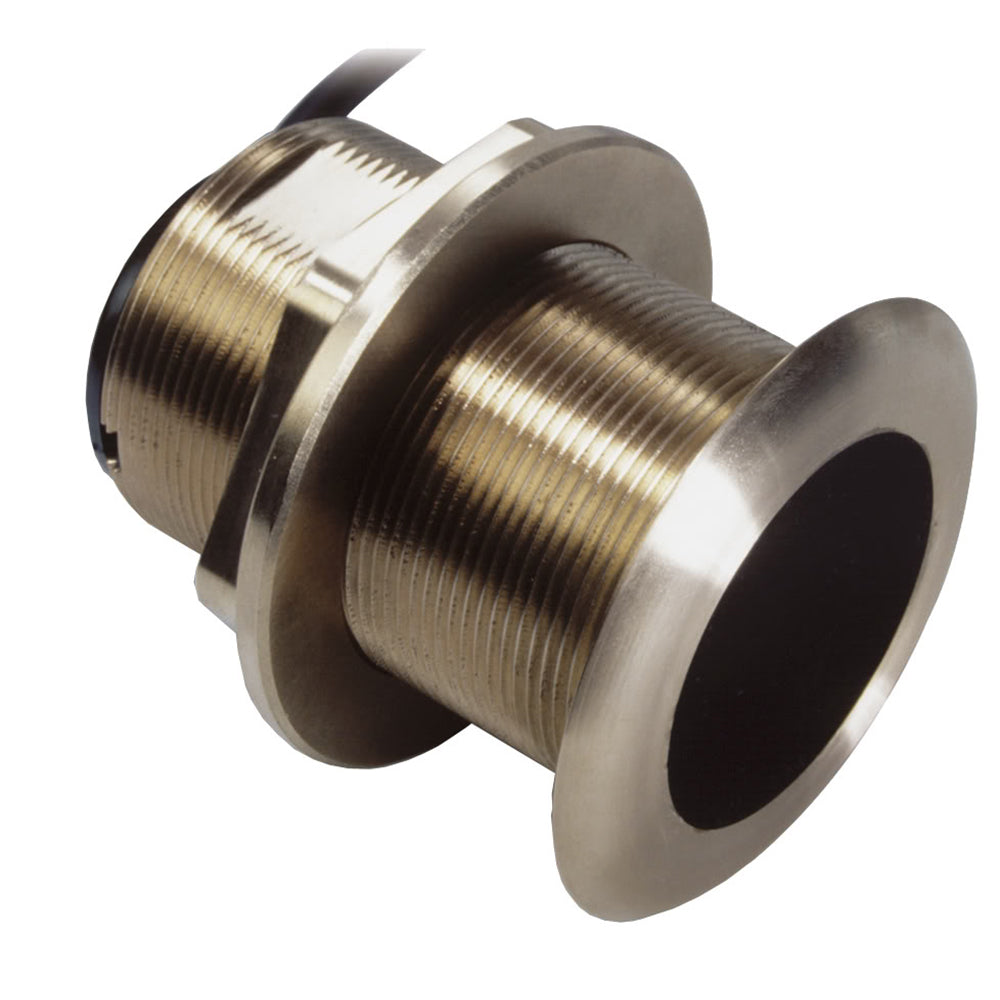

Airmar B60 Bronze Thru-Hull Transducer w/Humminbird #9 Plug - 7-Pin - 12 - B60-12-HB

B60 Bronze Thru-Hull Transducer w/Humminbird #9 Plug - 7-Pin - 12

The bronze B60-12 provides a vertical beam without a fairing. Inside the housing, the ceramic element is tilted for built-in, deadrise compensation. The resulting vertical beam gives excellent echo returns for more-accurate depth readings. The nearly-flush housing minimizes drag with only 5mm (3/16") extending outside of the hull.

Features:

• Engineered for center-console and trailered boats




• Low-profile protrusion below the hull


• No affect on your boats running performance


• Arrow on cap points toward keel when installed


• Built-in temperature sensor


• Boat Size: Up to 8M (25')


• Bronze transducer housing

Specifications:

• Weight: 1.4 kg (3 lb)




• Hull Deadrise: Up to 24


• Acoustic Window: Urethane

The Airmar B60-12 Bronze Thru-Hull Transducer is engineered for reliable performance on center-console and trailered boats up to 25 feet. Its durable bronze housing ensures longevity in harsh marine environments, while the nearly flush design with just 3/16 inch (5mm) protrusion minimizes drag and maintains your boat’s sleek profile. The ceramic element inside the transducer is tilted to provide built-in deadrise compensation, resulting in a vertical beam that delivers precise and consistent echo returns for accurate depth readings even in complex water conditions. This makes the B60-12 ideal for anglers and boaters seeking dependable fishfinding and depth measurement capabilities without impacting boat speed or performance.

Features:

• Engineered for center-console and trailered boats up to 25 feet in length

• Low-profile bronze housing minimizes hydrodynamic drag

• Vertical beam design for superior echo return and depth accuracy

• Fairing-less installation with only 3/16 inch protrusion outside the hull

• Arrow indicator on cap aligns toward keel during installation

• Built-in temperature sensor for real-time water temperature data
