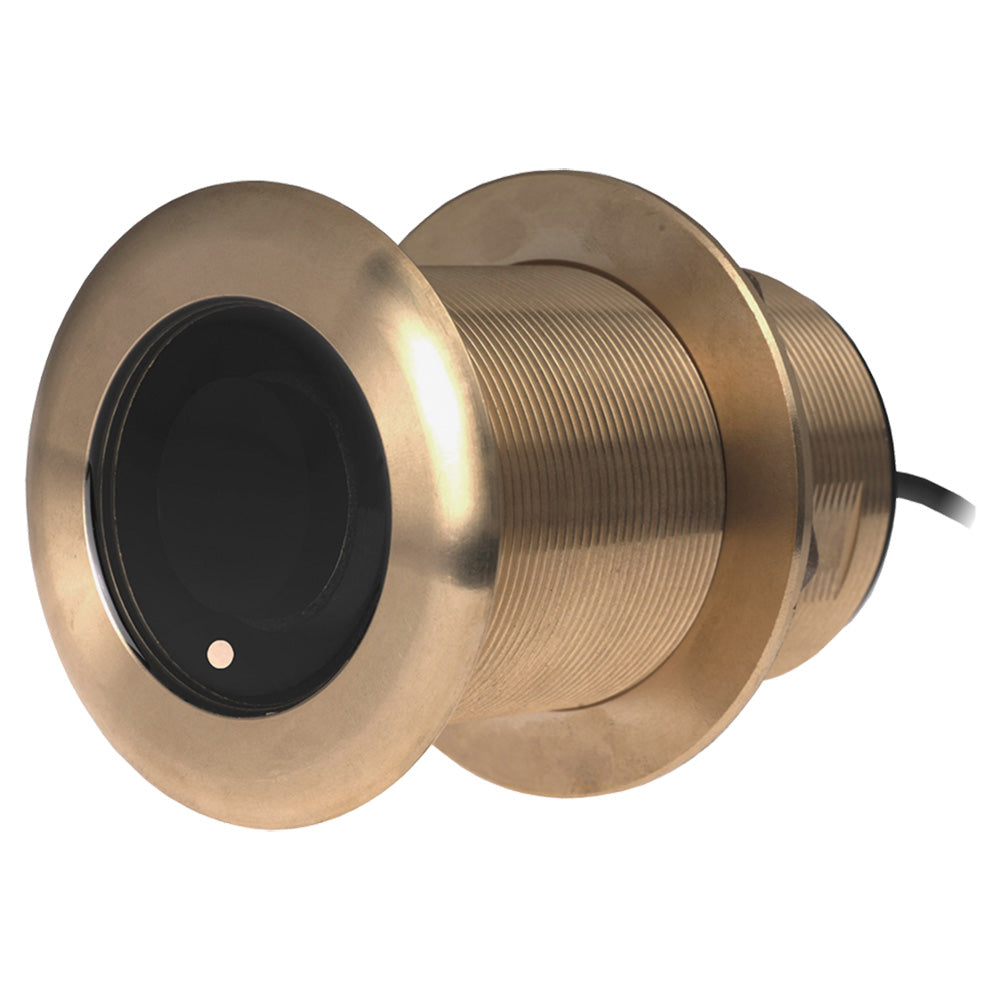

Airmar B60 12 Degree Tilt Thru Hull Req Mix & Match Cable - B60-12-MM

B60 12 Degree Tilt Thru Hull Req Mix Match Cable

The B60 is a 600 W, 50/200 kHz transducer that integrates Airmars popular Tilted Element feature. This Tilted Element transducer has the ceramic element fixed at either a 20 or 12 angle within the housing. When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise angle. By orienting the beam directly down, it ensures maximum echo returns to the transducer for more-accurate depth readings.

Features:

• Depth and fast-response water temperature sensing


• 600W of power


• Dual-frequency element:


• 50 kHz with a wide 45 beamwidth for depth performance to 353 m (1200)


• 200 kHz with a 12 beamwidth for depth performance to 206 m (700)


• Perfect for center-console or trailered boats


• Low-profile bronze housing extends only 5 mm (3/16) outside the hull


• No effect on your boats running performance


• Bronze housing for fiberglass or wood hull


• Also available in a stainless steel housing (SS60) for use with all hull materials

Specifications:

• Power Rating: 600W


• Max Deadrise Angle: 24


• Housing: Bronze


• Functions: Depth, Temperature


• Hull Material: Fiberglass or wood


• Max Vessel LOA: Up to 8 m (26)


• Hole Size: 60 mm (2-3/8)


• Usable Shaft Length: 68.5 mm (2.70)


• Acoustic Window: Urethane


• Common Use: Leisure/Yachting, Fishing


• Conventional Beam: 45/12


• Max Deadrise: Up to 24


• Max Depth: Low frequency- 366 m (1200), High frequency- 206 m (700)


• Mounting Style: Tilted Element Thru-Hull


• Retractable housing: No


• Single or Dual Frequency: Conventional Dual Frequency


• Tilted Element: Yes


• Weight: 1.4 kg (3 lbs.)

The Airmar B60-12-MM is a high-performance 600W dual-frequency transducer designed for optimal depth and water temperature measurement on leisure, yachting, and fishing vessels. Featuring a tilt element fixed at a 12-degree angle, this transducer corrects for hull deadrise when installed flush to the hull, ensuring precise downward beam alignment for maximum echo return and accurate depth readings. Its low-profile bronze housing extends only 5 mm outside the hull, minimizing hydrodynamic impact and maintaining your vessel's performance without compromise.

The B60 transducer operates effectively on fiberglass or wood hulls and is suitable for vessels up to 26 feet in length with a maximum deadrise angle of 24 degrees. Its dual-frequency capability includes a 50 kHz setting with a broad 45-degree beamwidth for depths up to 1,200 feet and a 200 kHz setting with a 12-degree beamwidth for depths up to 700 feet. This versatility provides excellent performance in various water conditions, making it ideal for both recreational and fishing applications.

Constructed with a durable bronze housing, the transducer features integrated depth and water temperature sensors, offering fast response times for real-time data. Its urethane acoustic window enhances signal clarity and durability. The B60 is designed for easy installation through a 2-3/8 inch (60 mm) hole, compatible with a range of boat types, including center-console and trailered boats. This model also includes a mix & match cable, providing flexible connectivity options for seamless integration with your existing marine electronics system.

Overall, the Airmar B60 12 Degree Tilt Thru-Hull Transducer offers reliable, high-quality performance for boaters seeking precise depth and temperature measurements with minimal hull impact. Its robust construction and dual-frequency design make it a dependable choice for enhancing your marine navigation and fishing experience.

Features:

• Depth and water temperature sensing for accurate real-time data

• 600W power rating for reliable performance

• Dual-frequency operation: 50 kHz with 45° beamwidth, 200 kHz with 12° beamwidth

• Deep water performance: up to 1,200 feet at 50 kHz, 700 feet at 200 kHz

• Tilted element fixed at 12 degrees to correct for hull deadrise

• Low-profile bronze housing extends only 5 mm outside the hull

• Suitable for fiberglass or wood hulls with a maximum deadrise of 24 degrees

• Designed for vessels up to 26 feet in length

• Easy installation through a 2-3/8 inch (60 mm) hole

• Includes mix & match cable for flexible connectivity

• Reliable for leisure, yachting, and fishing applications

• Constructed with durable urethane acoustic window for signal clarity
