Actisense Rear Panel Mount NMEA 2000 Micro 5-Pin Male Connector (Part A2K-PMW-M)

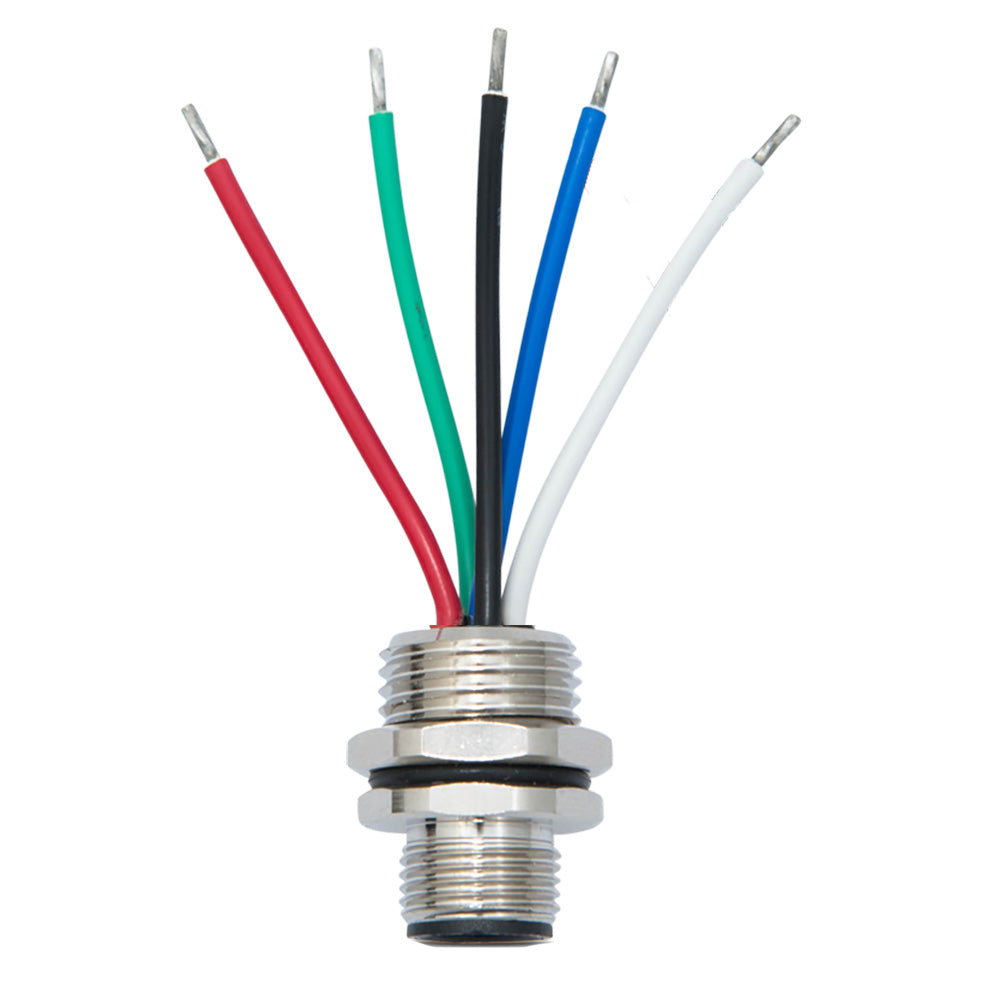

Rear Panel Mount NMEA2000 Wired Micro 5-Pin - Male

Panel mount wired connectors available from Actisense allow NMEA 2000 installations through watertight bulkheads (or panels) to be achieved.

Waterproof seals ensure the integrity of the NMEA 2000 connection and bulkhead/panel.

The female panel mount wired connector can easily replace any of the existing drop glands on the Actisense QNB-1 to create a quick pluggable NMEA 2000 connection option.

The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.

Technical Specifications:

Electrical

• Rated Current - 4A


• Rated Voltage - 60VDC

Mechanical

• Contacts - Brass, gold-plated


• Contact Carrier - Nylon GF


• Contact Polarization - Standard M12-A-Polarization


• Mating Thread - M12


• Housing - Brass, nickel-plated


• Mounting Thread - PG9


• Mounting Nut - Brass, nickel plated - PG9


• Mounting Hole Diameter - 15.3mm


• Wires - 18 AWG (stripped and tinned)


• Wire Jacket - PVC


• Weight - 20g

Approvals and Certifications

• Protection - IP67 (when mated)


• Operating Temperature - -25C to +90C


• Connector Specification - Meets IEC61076-2-101

The Actisense Rear Panel Mount NMEA 2000 Micro 5-Pin Male connector offers a reliable solution for integrating NMEA 2000 networks through watertight bulkheads or panels. Designed with waterproof seals, this connector ensures the integrity of your marine communication system even in challenging environments. Its easy replacement capability allows it to retrofit existing connections, such as on the Actisense QNB-1, providing a quick and secure pluggable connection for marine electronics.
Constructed with high-quality materials, the connector features brass, gold-plated contacts for optimal conductivity and corrosion resistance, and a nickel-plated brass housing for durability. The nylon GF contact carrier and PVC wire jacket contribute to its robustness and resistance to environmental factors. With a rated current of 4A and voltage of 60VDC, it is suitable for various marine communication applications. The connector complies with IEC61076-2-101 standards and is rated IP67 when mated, ensuring protection against water ingress and dust in harsh maritime conditions.
This connector is designed for easy installation, featuring a PG9 mounting thread and a 15.3mm mounting hole diameter. It supports 18 AWG wires, which are stripped and tinned for secure connections. Operating within a temperature range of -25°C to +90°C, it maintains performance across diverse marine environments. Whether for new installations or retrofitting existing systems, the Actisense NMEA 2000 connector provides a dependable, sealed connection that enhances your vessel's communication reliability and safety.

Features:

• Watertight panel mount design for secure NMEA 2000 connections through bulkheads or panels

• Waterproof seals ensure connection integrity in marine environments

• Brass, gold-plated contacts for corrosion resistance and reliable conductivity

• Nickel-plated brass housing for durability

• Supports rated current of 4A and voltage of 60VDC

• IP67 protection rating when mated for dust and water resistance

• Standard M12-A polarization with PG9 mounting thread for easy installation

• Compatible with 18 AWG tinned and stripped wires

• Operates effectively between -25°C and +90°C
