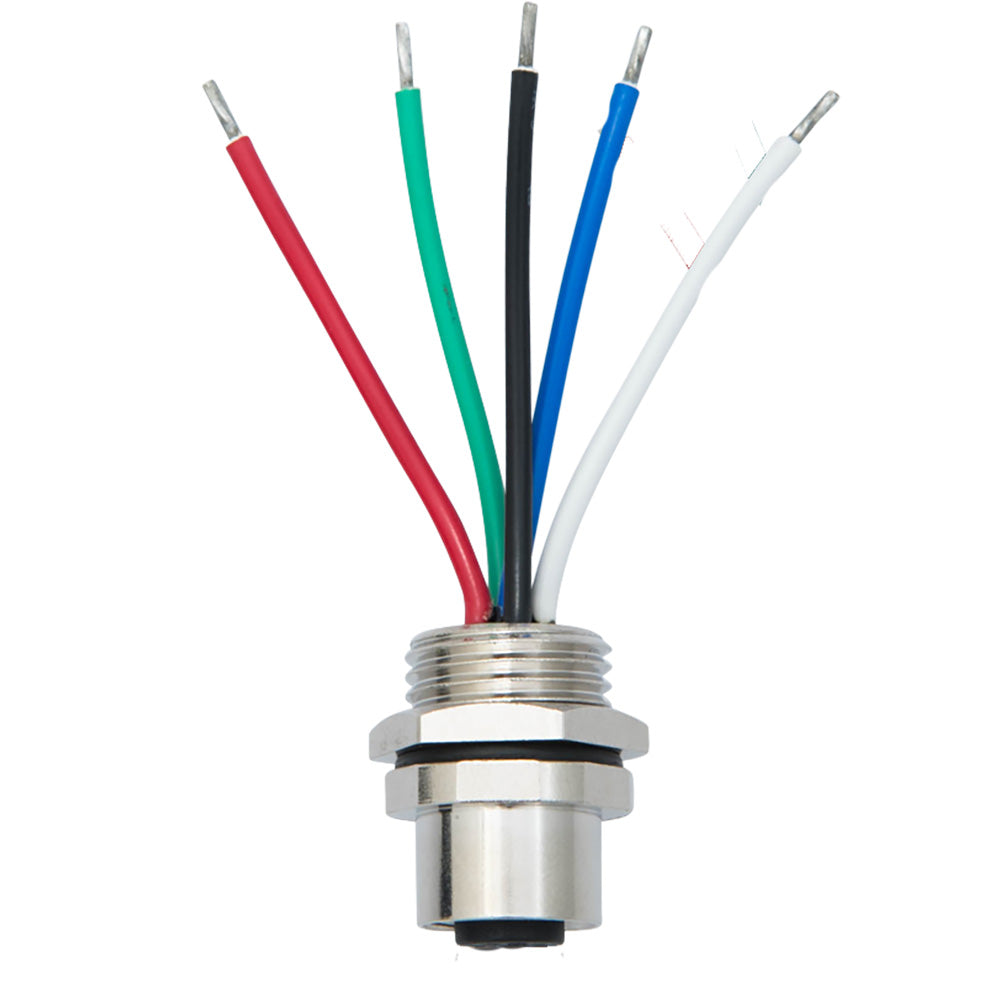

Rear Panel Mount NMEA2000 Wired Micro 5-Pin - Female

Panel-mount wired connectors available from Actisense allow NMEA 2000 installations through watertight bulkheads (or panels) to be achieved.

Waterproof seals ensure the integrity of the NMEA 2000 connection and bulkhead/panel.

The female panel mount wired connector can easily replace any of the existing drop glands on the Actisense QNB-1 to create a quick pluggable NMEA 2000 connection option.

The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.

Technical Specifications:

Electrical

• Rated Current - 4A


• Rated Voltage - 60VDC

Mechanical

• Contacts - Brass, gold-plated


• Contact Carrier - Nylon GF


• Contact Polarization - Standard M12-A-Polarization


• Mating Thread - M12


• Housing - Brass, nickel-plated


• Mounting Thread - PG9


• Mounting Nut - Brass, nickel plated - PG9


• Mounting Hole Diameter - 15.3mm


• Wires - 18 AWG (stripped and tinned)


• Wire Jacket - PVC


• Weight - 20g

Approvals and Certifications

• Protection - IP67 (when mated)


• Operating Temperature - -25C to +90C


• Connector Specification - Meets IEC61076-2-101

The Actisense A2K-PMW-F Rear Panel Mount NMEA 2000 Micro 5-Pin Female connector offers a reliable and waterproof solution for marine data networking. Designed specifically for seamless integration through watertight bulkheads or panels, this connector ensures secure and durable connections in harsh marine environments. Its panel-mount wiring configuration allows for easy installation and replacement, making it an ideal choice for custom NMEA 2000 setups or upgrades to existing systems. The waterproof seals prevent moisture ingress, safeguarding your electronic connections against moisture and corrosion, and maintaining signal integrity even in the most demanding conditions. Whether replacing drop glands on the Actisense QNB-1 or creating a new connection point, this connector simplifies installation with its robust build and compatibility with standard NMEA 2000 networks. The high-quality brass housing is nickel-plated for corrosion resistance, while the brass contacts are gold-plated to ensure optimal signal transfer. The connector supports a rated current of 4A and a maximum voltage of 60VDC, making it suitable for various marine communication and power applications. Its mechanical design features include a brass mounting nut, nylon contact carrier with standard M12 polarization, and a mounting hole of approximately 15.3mm diameter, enabling secure attachment to panels or bulkheads. Wires are stripped and tinned 18 AWG PVC jacket cables, providing flexibility and ease of wiring. Certified to meet IEC61076-2-101 standards, the Actisense NMEA 2000 connector is built for durability and reliable performance in marine environments with an IP67 protection rating when mated. Operating temperature ranges from -25°C to +90°C, ensuring operation across diverse climates. Overall, this connector is an essential component for professional marine electronics installations, ensuring seamless, waterproof, and corrosion-resistant connections for your NMEA 2000 network.

Features:

• Waterproof seals: Ensure integrity of NMEA 2000 connection and bulkhead sealing

• Rated Current: 4A for reliable power transfer

• Rated Voltage: 60VDC suitable for marine applications

• Corrosion-resistant housing: Brass, nickel-plated for durability

• Gold-plated brass contacts: Enhance signal transfer quality

• Standard M12 polarization: Ensures compatibility with existing connectors

• Mounting nut: Brass, nickel-plated with PG9 thread for secure installation

• Mounting hole diameter: Approximately 15.3mm for panel mounting

• Wiring: Stripped and tinned 18 AWG PVC jacket cables for flexibility

• Protection: IP67 when mated for water and dust resistance

• Operating temperature: -25°C to +90°C for versatile marine use

• Meets IEC61076-2-101 standards: Ensures compliance and quality
