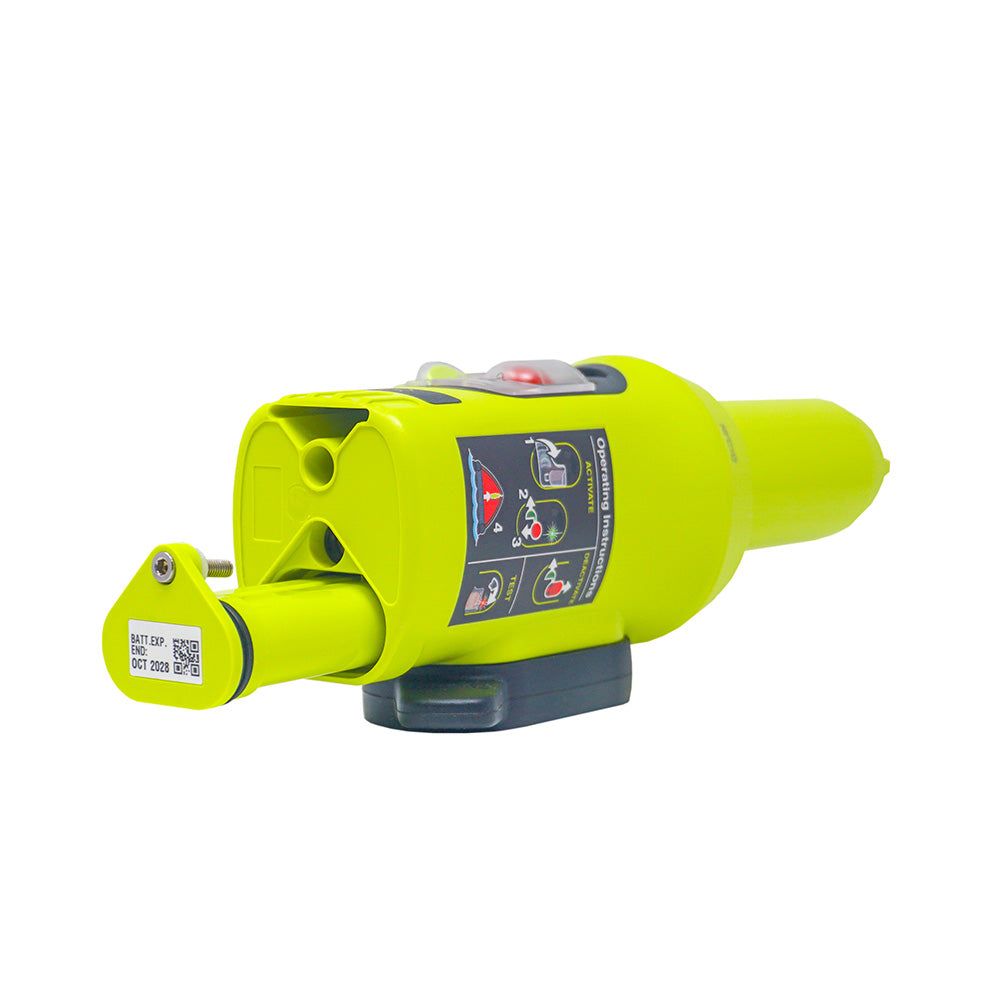

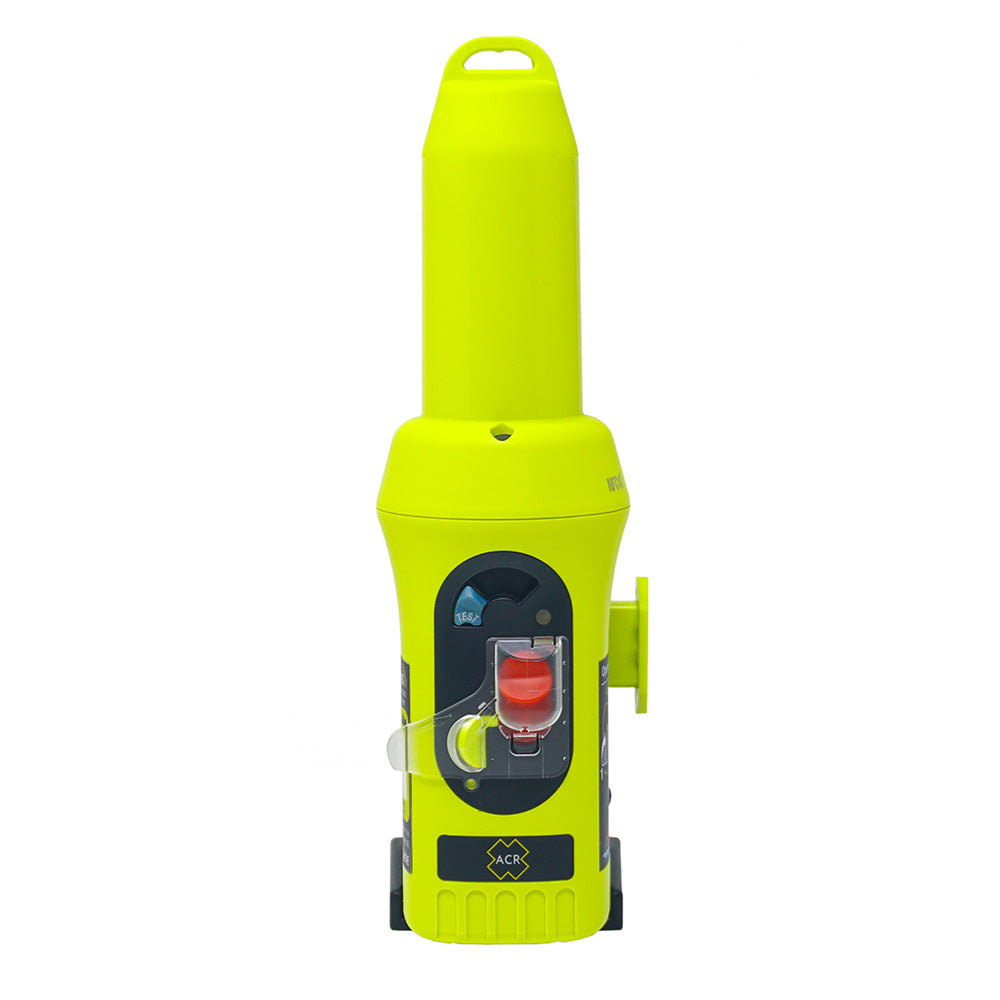

ACR Electronics Pathfinder SART with AIS - Maritime Search and Rescue Transponder - 2940

Pathfinder SART with AIS

The Pathfinder AIS is a fully approved AIS Search and Rescue Transponder (SART) that complies with IMO SOLAS regulations and allows vessels that must conform to GMDSS to meet the mandatory SART carriage requirement. Utilizing AIS class-A position reports, the Pathfinder AIS sends a total of eight position report messages once per minute to allow for real-time tracking.

Utilizing the tried and proven sturdy design and convenient form factor of the Pathfinder Pro SART, the Pathfinder AIS features Automatic Identification System (AIS) distress alerting versus the use of a traditional radar-based system. The state-of-the-art Pathfinder AIS transmits GNSS/GPS satellite location coordinates to all AIS-equipped vessels within VHF range, alerting them to the fact that emergency assistance is required.

The Pathfinder AIS has an average detection range of 5 nautical miles, incorporates Near Field Communication (NFC) technology, which aids product registration and provides test data, and utilizes a lithium battery providing 96 hours of operating life. Other benefits include precise GNSS/GPS positioning, real-time tracking, and, in contrast to radar SARTs, AIS SARTs have less susceptibility to adverse weather conditions such as heavy rain or fog.

The Pathfinder AIS comes with a sleek wall mount to keep it out of the way, yet readily accessible in an emergency. The optional telescopic pole conveniently connects to the bottom of the SART and provides for maximum height (extends 3.3ft/1m) and visibility out of a life craft. The SART can also be suspended inside the craft for hands-free usage.

Engineered to withstand the harshest marine environments, the Pathfinder AIS is ready to perform in any emergency, ensuring your distress signal is detected by any AIS-equipped vessel within range. Its rugged design ensures it remains operational when you need it most.

Carriage Requirements:

• Any IMO SOLAS vessel on international voyages is required to carry a SART
• 300-500 Gross Register Tonnage (GRT) must carry a minimum of 1 SART
• Over 500 GRT Gross Register Tonnage (GRT) must carry a minimum of 2 SARTs
• 1 SART for every four life rafts on Ro-Ro passenger vessels
• Passenger ships of any size must carry a minimum of 2 SARTs regardless of their tonnage
• Lifeboats: SOLAS requires that at least 1 SART be available for use in each survival craft
• Liferafts: In the case of passenger ships, if there are more than 2 liferafts, additional SARTs should be provided so that at least one SART is available for every 2 liferafts

Features:

• AIS class-A position report is sent once per minute as a series of 8 identical position report messages (four on 161.975 MHz and four on 162.025 MHz), creating a high probability that at least one of the messages is sent on the highest point of a wave.
• Average detection range of approximately 5nm (detection ranges are much greater from aircraft, ranging anywhere from 25nm at 1,000ft to 130nm at 20,000ft)
• Includes mounting bracket and mounting screws
• Compact 8.94 x 2.56 Inches (227 mm x 65 mm) unit easily packs into a life raft
• Waterproof to 10 meters (33 ft)
• Non-Hazmat Lithium battery (5-year replacement life) operates for over 96 hours
• Worldwide certifications; complies with IMO, MED, FCC, and IEC standards
• Application: mandatory requirement for all vessels governed by GMDSS; any yacht or vessel carrying more than one life raft to accommodate crew and passengers

Specifications:

• Size: 8.94 (H) x 2.56 (D) Inches (227mm x 65mm) / Max Diam = 3.23/82mm
• Weight (SART battery): 0.69 lbs (315g)
• Weight (without battery): 0.50 lbs (227g)
• Waterproof: 10 meters
• Drop proof (on water): 20 meters
• Deployment: Manual
• Frequency: 161.975/162.025 MHz
• Transmit Power (EIRP): 1Watt +/- 3dBm
• Baud Rate: 9600 baud
• Synchronization: UTC
• Messages: Message 1 (Position), Message 14 (Status)
• Repetition Interval: 8 messages/minute (message 14 sent twice every 4 minutes)
• Temperature Range (operating): -20C to +55C
• Temperature Range (storage): -30C to +70C
• Operating Life: 96 Hours at -20C
• Battery (type): Lithium/Iron Disulfide (Li/FeS2) - Non-Hazardous
• Battery (Lithium Metal Weight): <2g per battery
• Battery Replacement Interval: 5 years
• NFC: Frequency 13.56 MHz
• Compass Safe Distance: 1 meter
• Test Standards: IEC61097-14, IEC60945
• IEC60945 Category: Portable
• Approvals: MED (MED/4.55), UK MER (MSN 1874), GMDSS Provisions of Part 80 of the FCC rules
• Accessories (included): Bulkhead mounting bracket mounting screws, attachment lanyard
• Accessories (not included): Telescopic Pole (1m)

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The ACR Electronics Pathfinder SART with AIS is a fully compliant and reliable marine distress device designed to meet IMO SOLAS regulations. This compact and rugged transponder integrates Automatic Identification System (AIS) technology, allowing vessels equipped with AIS to receive real-time distress alerts and position reports. Utilizing GNSS/GPS positioning, the Pathfinder AIS transmits precise location data to nearby AIS-enabled ships, enhancing safety during emergencies. Its ability to send eight position report messages per minute ensures high visibility and reduces the risk of missed signals, especially in challenging weather conditions like fog or heavy rain. The device's sturdy design, waterproof to 10 meters, and its inclusion of a mounting bracket and screws make installation straightforward, while its small size allows easy storage within life rafts or lifeboats. The lithium battery provides over 96 hours of operational life, and NFC technology simplifies product registration and testing procedures. With worldwide certifications including IMO, MED, FCC, and IEC standards, the Pathfinder AIS is suitable for all vessels requiring GMDSS compliance, including passenger ships, cargo vessels, and recreational boats. It can be mounted on a wall or attached to an optional telescopic pole for maximum visibility, which extends up to 3.3 feet (1 meter). This ensures that in any maritime emergency, your distress signal can be detected by other AIS-equipped vessels, increasing the chances of rescue. The device's features include high detection range, waterproof construction, and compliance with international safety standards, making it an essential safety tool for any vessel operating in open waters. The Pathfinder SART with AIS is engineered to withstand harsh marine environments, ensuring dependable performance when needed most, and providing peace of mind for crews and passengers alike.

Features:

• AIS class-A position report sent once per minute as a series of 8 identical messages, increasing detection probability

• Average detection range of approximately 5 nautical miles, with greater ranges from aircraft at higher altitudes

• Includes mounting bracket and screws for easy installation

• Compact size measuring approximately 9 inches tall and 2.6 inches wide, suitable for storage in life rafts

• Waterproof to a depth of 10 meters (33 feet) for durability in harsh marine environments

• Lithium non-hazmat battery with a 5-year replacement cycle and over 96 hours of operational life

• Worldwide certifications including IMO, MED, FCC, and IEC standards

• Designed for mandatory use on SOLAS vessels, including passenger ships, cargo vessels, and lifeboats

• Operates on 161.975/162.025 MHz frequencies with a transmit power of 1 Watt

• s Near Field Communication (NFC) for registration and testing

• Built to withstand drop impacts up to 20 meters on water

• Manual deployment with a compact and lightweight design for ease of use
