Wichard Self-Locking D Shackle - Diameter 8mm - 5/16" - 1204W
Free Ground Shipping ( 2-6 Day Delivery Time )
Truck Freight: No
Contact: 866-675-8464
30-day returns available
Manufactures Part Number: 1204W
Truck Freight: No

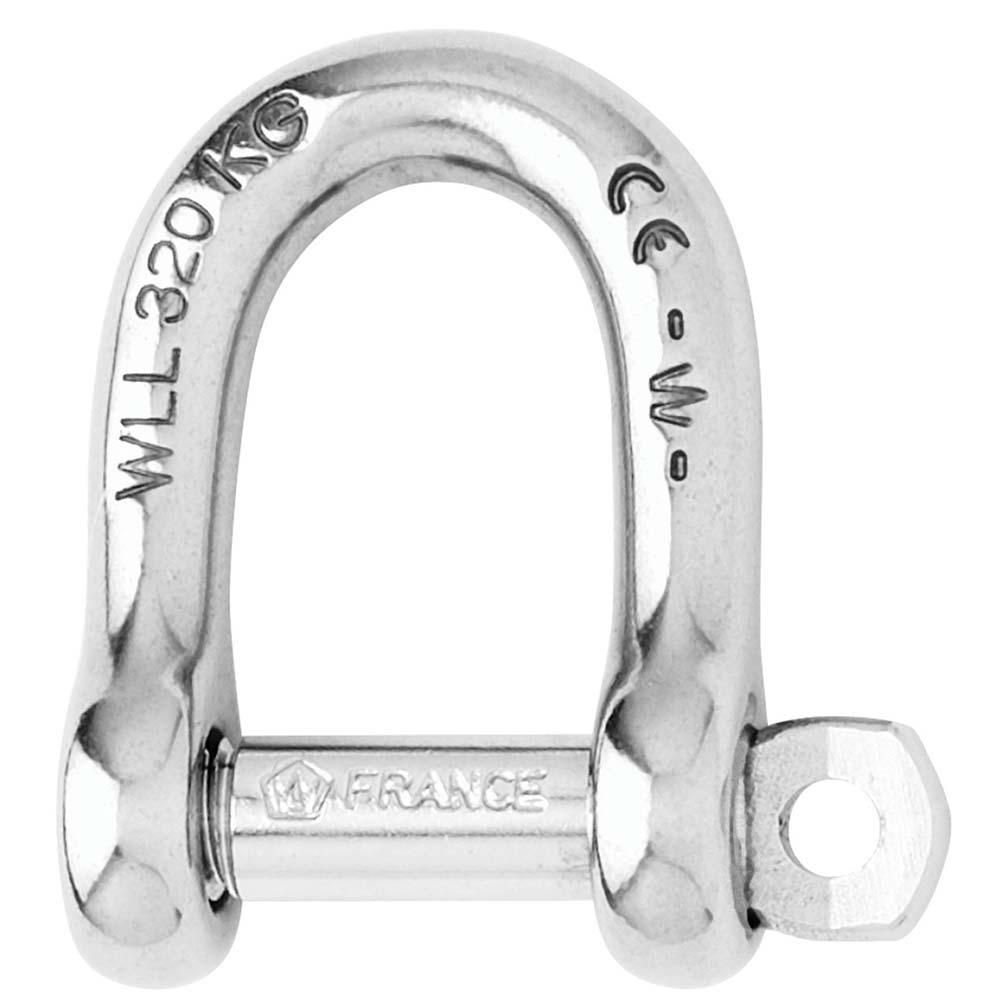

Self-Locking D Shackle - Diameter 8mm - 5/16"
Features:
- Self-locking D shackle forged in grade 316L stainless steel
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
- WLL: only for industrial applications (lifting i.e…)
- CE marking and batch number
Applications:
- Standard applications of the shackle
- Attachment applications: blocks, head…
Specifications:
- Materials 316 stainless steel grade
- Working load (lb) 2200
- WLL (lb) 1190
- Breaking load (lb) 5950
- Weight (lb) 0.121

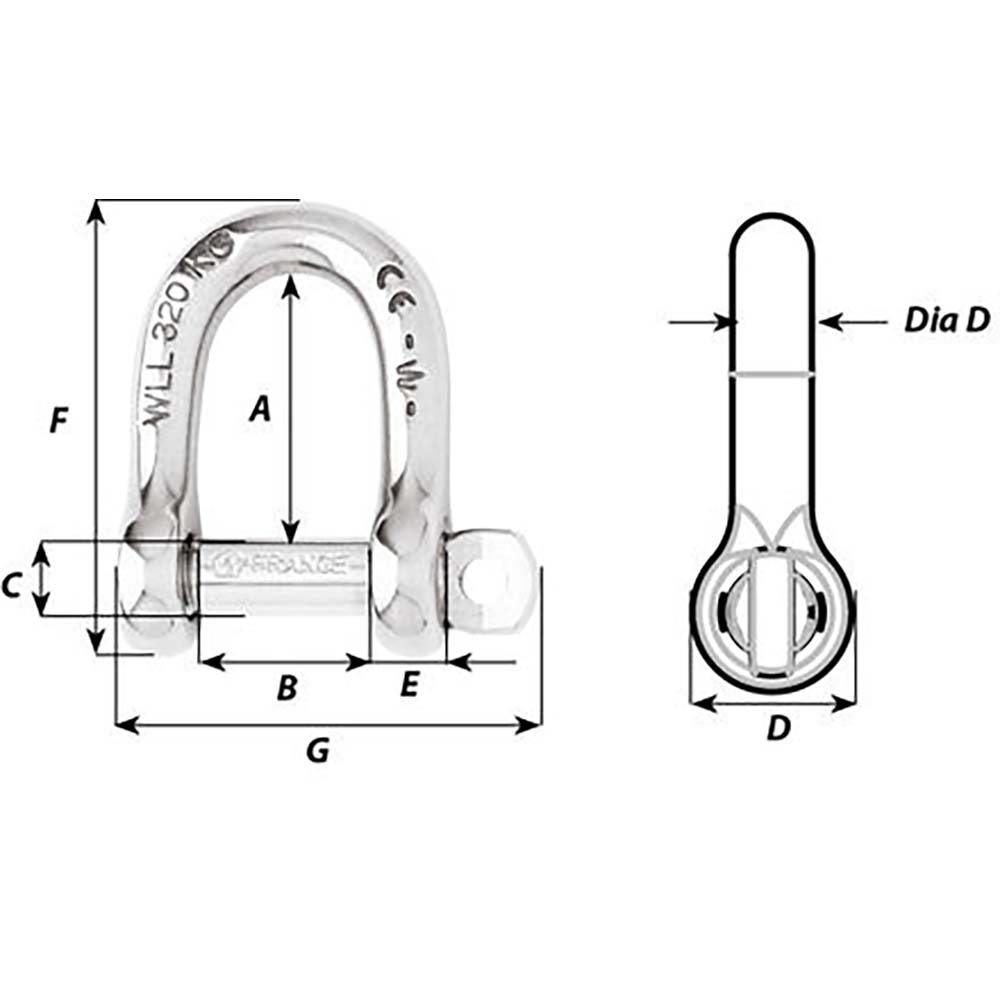

Dimensions (see 2nd image):
- A (inch) 1-1/32"
- B (inch) 5/8"
- C (inch) 5/16"
- D (inch) 5/8"
- D diameter (inch) 5/16"
- E (inch) 9/32"
- F (inch) 1-49/64"
- G (inch) 1-39/64"
