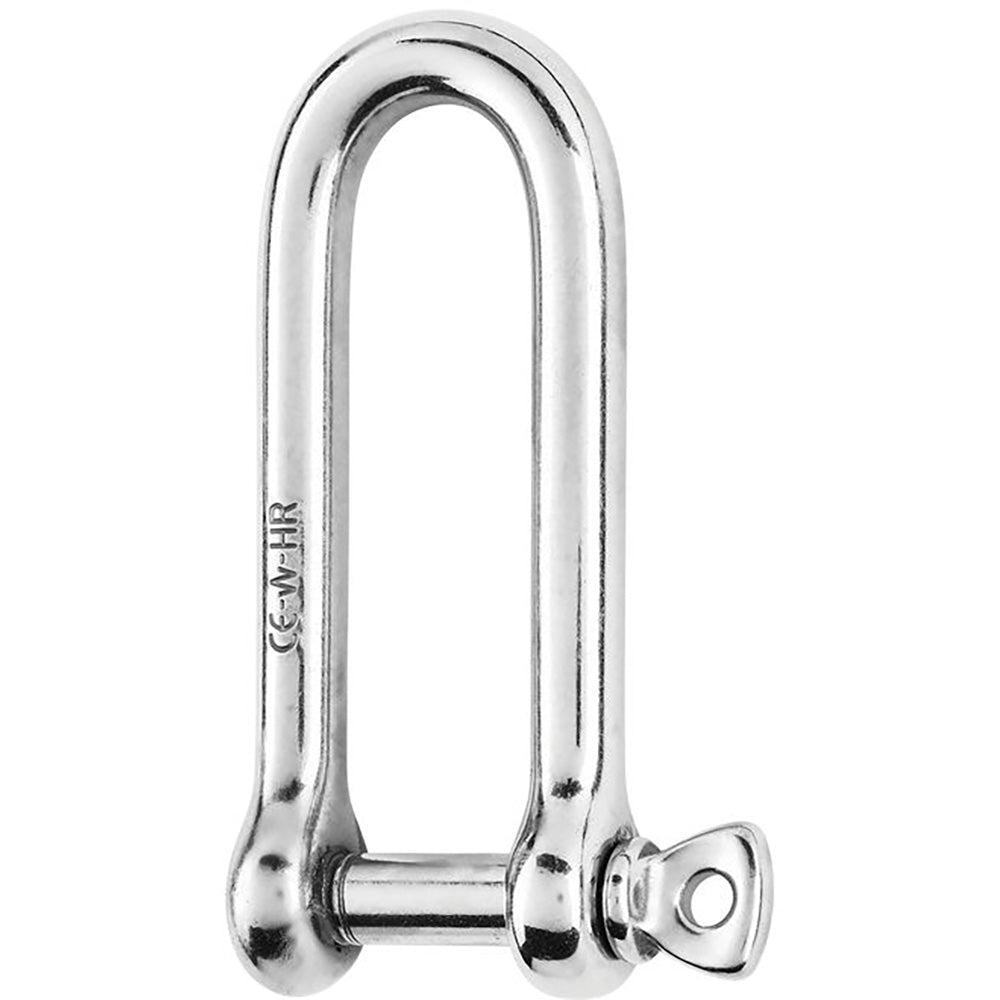

Wichard Marine HR Long D Shackle - 10mm Diameter - Part 11215

HR Long D Shackle - 10mm Diameter - 25/64"

Features:

• Forged long shackle in HR stainless steel grade (17,4 PH)


• Outstanding working and breaking load


• An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel


• WLL: only for industrial applications (lifting i.e…)


• CE marking

Applications:

• Applications requesting high loads


• Standard applications of the shackle


• Attachment applications: blocks, head …


• Do not use it for mooring applications

Specifications:

• Materials: HR 17.4 PH stainless steel grade


• Working load: (lb) 5820 / (kg) 2640


• WLL: (lb) 2640 / (kg) 1200


• Breaking load: (lb) 13220 / (kg) 6000


• Weight: (lb) 0.362 / (g) 164

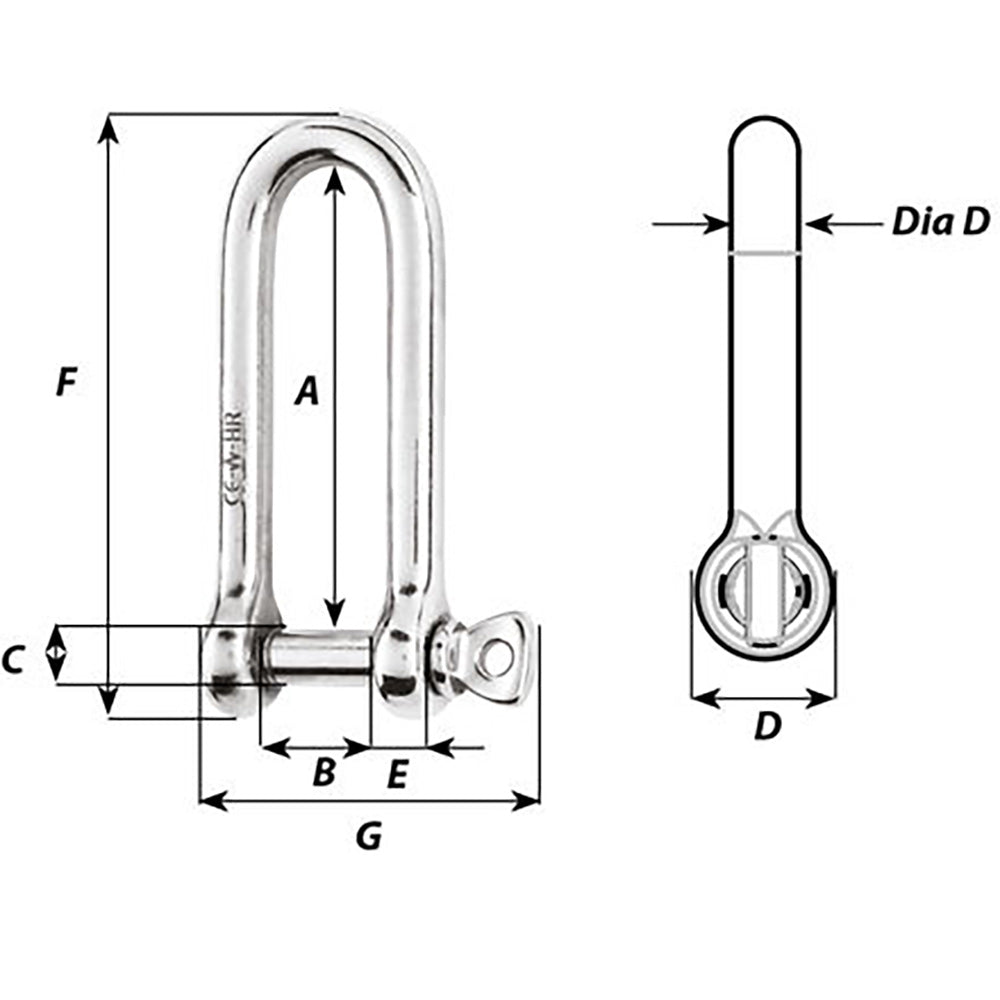

Dimensions:

• A: (inch) 3 5/64" / (mm) 78


• B: (inch) 25/32" / (mm) 20


• D diameter: (inch) 25/64" / (mm) 10

Caption:

• Working Load (WL): For nautical applications


• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5


• High Resistance (HR)

*Sold as an Individual

The Wichard Marine HR Long D Shackle (Part 11215) is expertly crafted from high-strength HR stainless steel (17,4 PH), making it an ideal choice for heavy-duty industrial applications. With an impressive working load limit of 2,640 lbs and a breaking load of 13,220 lbs, this shackle provides exceptional durability and reliability, ensuring it can handle the toughest lifting tasks. It is specifically designed for applications requiring high loads and can be used to attach blocks and other equipment securely. Note: Not suitable for mooring applications.

Features:
* Forged long shackle in HR stainless steel grade (17,4 PH) for superior strength
* Outstanding working and breaking load capabilities for industrial use
* Up to 60% more resistant than traditional 316L stainless steel shackles
* CE marked for compliance and safety assurance
* Ideal for applications demanding high loads and secure attachments
