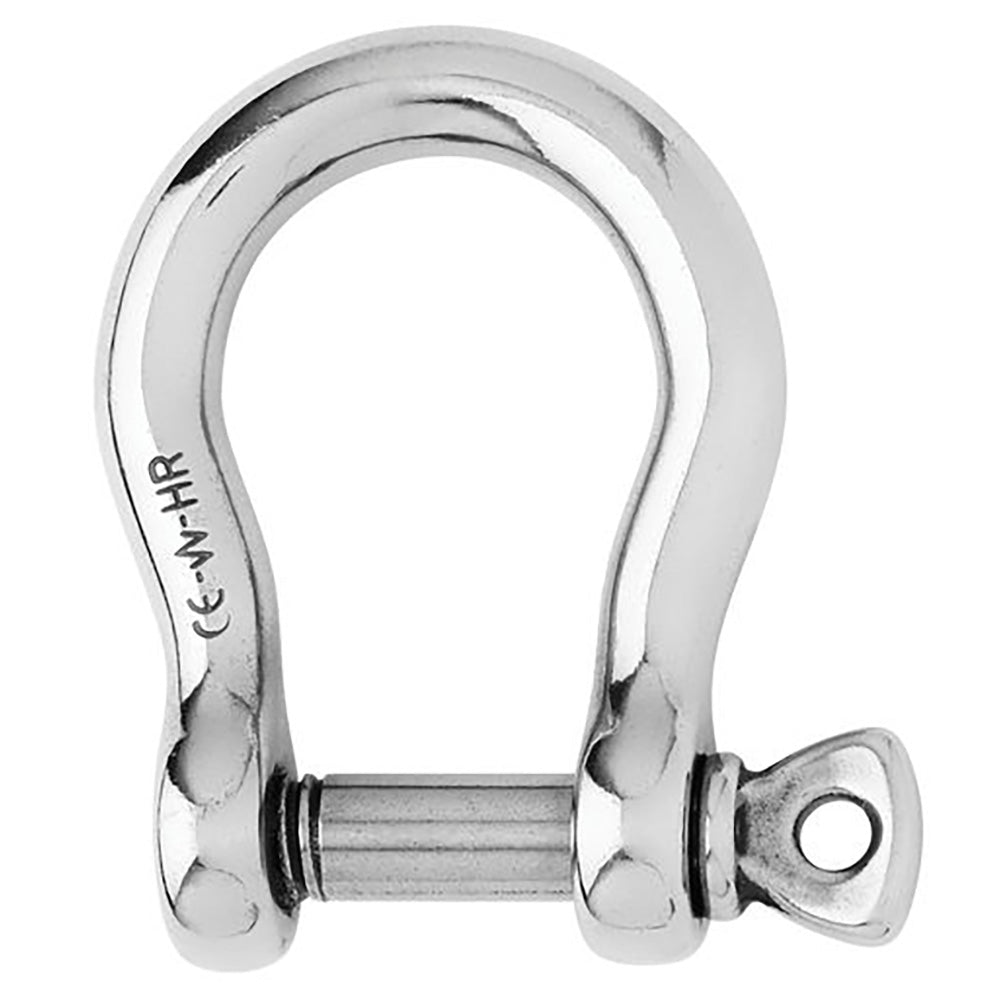

Wichard Marine HR Bow Shackle - 14mm Diameter - Part Number 11240
Free Ground Shipping ( 2-6 Day Delivery Time )
Truck Freight: No
⏳ Hurry! Only 2 left in stock
Contact: 866-675-8464
30-day returns available
Manufactures Part Number: 11240
Truck Freight: No
HR Bow Shackle - 14mm Diameter - 35/64"
Features:
- Forged bow shackle in HR stainless steel grade (17,4 PH)
- Outstanding working and breaking load
- An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
- WLL: only for industrial applications (lifting i.e)
- CE marking and batch number
Applications:
- Applications requesting high loads
- To be used when ample room is required
- Possibility to attach several lines or cables
- Do not use it for mooring applications
Specifications:
- Materials: HR 17.4 PH stainless steel grade
- Working load: (lb) 11280 / (kg) 5120
- WLL: (lb) 5290 / (kg) 2400
- Breaking load: (lb) 26450 / (kg) 12000
- Weight: (lb) 0.802 / (g) 364

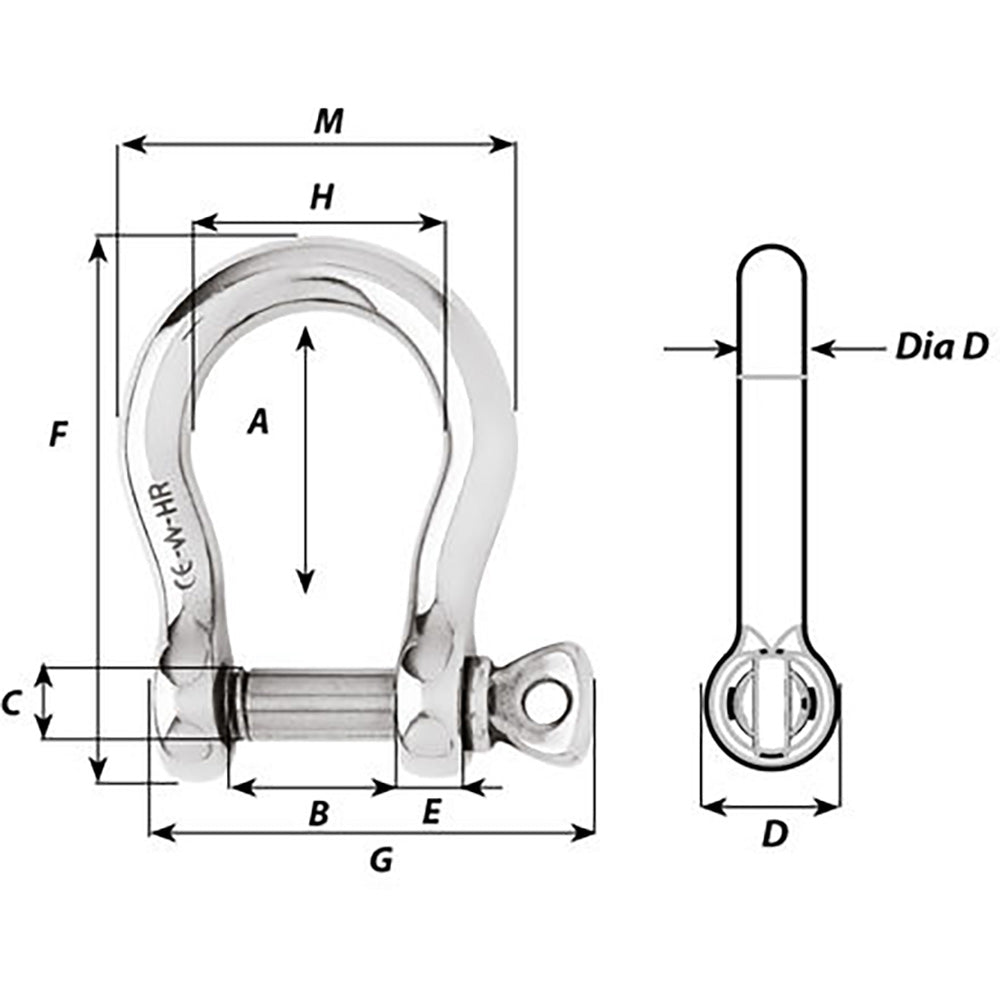

Dimensions:
- A: (inch) 2 31/64" / (mm) 63
- B: (inch) 1 7/64" / (mm) 28
- C: (inch) 35/64" / (mm) 14
- D: (inch) 1 7/64" / (mm) 28
- D diameter: (inch) 35/64" / (mm) 14
- E: (inch) 33/64" / (mm) 13
- M: (inch) 2 53/64" / (mm) 72
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
- High Resistance (HR)
*Sold as an Individual
The Wichard Marine HR Bow Shackle is a robust and reliable solution for high-load applications. Crafted from high resistance (HR) stainless steel grade (17,4 PH), this bow shackle is engineered to withstand significantly more stress compared to traditional 316L stainless steel options. With a working load limit (WLL) designed specifically for industrial applications, it ensures safety and durability in challenging environments.
This bow shackle features a unique design that allows for ample room, making it versatile for attaching multiple lines or cables. Ideal for applications that require strength and reliability, it is perfect for lifting and other demanding tasks. Please note, this shackle is not intended for mooring applications, ensuring it maintains optimal performance in the right contexts.
Features:
* Material: Forged from high resistance (HR) stainless steel grade (17,4 PH): Material: Forged from high resistance (HR) stainless steel grade (17,4 PH)
* Strength: Offers outstanding working and breaking load capabilities: Strength: Offers outstanding working and breaking load capabilities
* Durability: Up to 60% more resistant than standard 316L stainless steel shackles: Durability: Up to 60% more resistant than standard 316L stainless steel shackles
* Safety: CE marked with a batch number for quality assurance: Safety: CE marked with a batch number for quality assurance
* Applications: Designed for high-load industrial applications only: Applications: Designed for high-load industrial applications only
